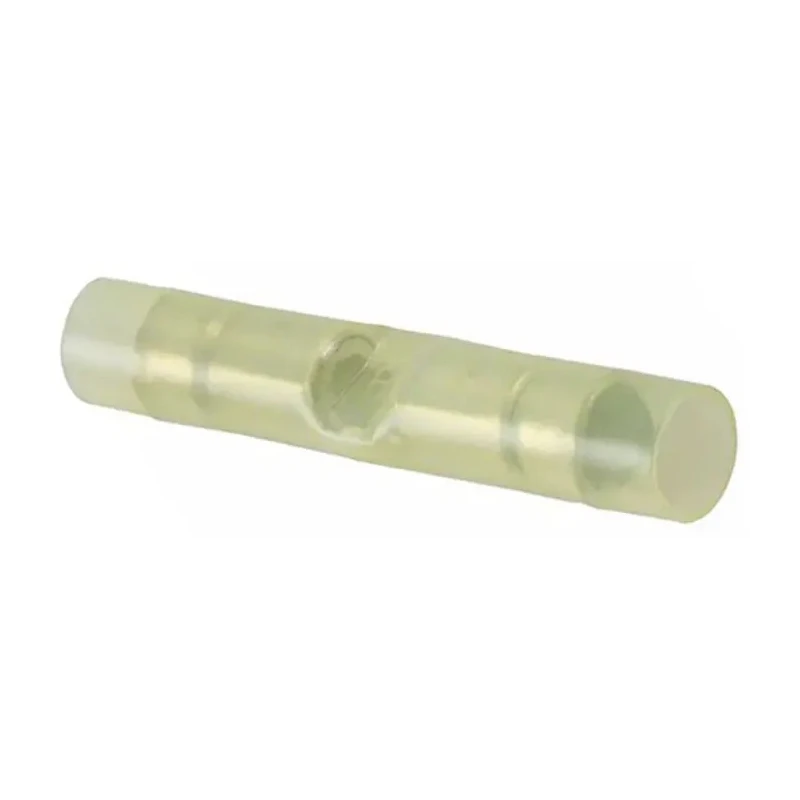

TE Connectivity PIDG Butt Splice Connector Yellow Insulated Nylon Tin Copper 42.06mm 5.59mm Diameter 10 AWG 320570

TE Connectivity 320570 PIDG Butt Splice Connector Yellow is a high-quality insulated splice connector designed for secure and reliable electrical wire terminations. Featuring a pre-insulated diamond grip (PIDG) design, this connector ensures uniform and stable crimps suitable for demanding circuit applications.

The connector body is precision-formed from high conductivity copper with tin plating to enhance electrical contact and prevent corrosion. The wire barrel incorporates serrations that maximize contact area and tensile strength after crimping, ensuring long-lasting connections.

Nylon insulation in a yellow color sleeve surrounds the barrel, providing both insulation and wire size identification, protecting against electrical shorts and mechanical damage. The copper sleeve embedded in the insulation provides enhanced wire insulation support post-crimp, allowing bending without insulation fraying or conductor breakage.

With an overall length of 42.06 mm and diameter of 5.59 mm, this connector accommodates wire sizes from 22 AWG minimum up to 10 AWG maximum, making it versatile for various electrical wiring tasks.

These PIDG splice terminals conform to RoHS directives and meet or exceed the rigorous MIL-T-7928, Type II, Class 1 and 2 standards, making them ideal for a wide range of industrial and commercial applications including instruments, control panels, lighting systems, power supplies, transportation equipment, motors, aerospace, and domestic appliances.

Constructed with high conductivity copper and tin plating for excellent electrical performance. Features nylon insulation in yellow color for wire size identification and insulation protection. Overall length of 42.06 mm and diameter of 5.59 mm for precise fit.

Design includes serrations in the wire barrel for superior contact and tensile strength. Copper sleeve improves wire insulation support, preventing damage after crimping. Compliant with RoHS and military specifications for quality and durability.

Suitable for extensive industrial, laboratory, construction, and commercial electrical applications.

This TE Connectivity PIDG Butt Splice Connector offers dependable performance and ease of installation for professionals requiring efficient wire splicing solutions across multiple industries. Explore more connectors and electrical components at EnvMart for your project needs.
