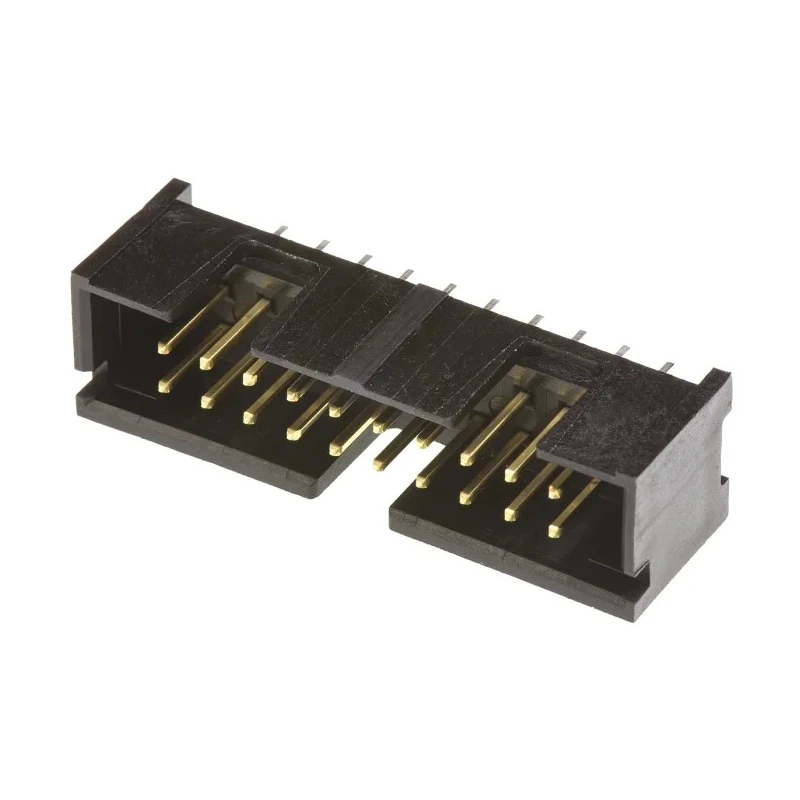

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded 5103309-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for through hole mounting on printed circuit boards.
- Thermoplastic housing ensures flame retardant rated to 94V-0 standard.
- Gold-plated copper alloy contacts provide durability and corrosion resistance.
- Features centre and dual polarization slots for accurate mating.
- Suitable for operating temperatures from -55°C to 105°C.
- Includes board standoffs to facilitate flux removal.
- Kinked solder tails ensure secure PCB connection.
- Ideal for applications in PCs, medical, networking, industrial control, and business equipment.
Product Description
TE Connectivity 5103309-5 AMP-LATCH Series Straight Through Hole PCB Header is a 20-contact, 2.54 mm pitch, 2-row shrouded connector designed for reliable wire-to-board connections in various electronic applications.
The connector features a low profile thermoplastic housing rated to flame retardant standard 94V-0, ensuring safety and durability. Contacts are made of copper alloy and plated with gold to provide excellent conductivity and resistance to corrosion. This AMP-LATCH header includes centre and dual polarization slots, enabling precise and secure mating with IDC ribbon cable connectors.
Designed for through hole PCB mounting, it incorporates board standoffs that allow excess flux removal during assembly, enhancing the cleanliness and reliability of solder joints. The kinked solder tails provide mechanical stability to the connection.
Operating temperature ranges from -55°C to 105°C, supporting applications across diverse environments. It is rated for 250V voltage and 1A current, suitable for a variety of electronic equipment.
Common applications include use in PCs, business equipment, medical devices, storage units, networking hardware, industrial control systems, appliances, and electrical testing equipment. The robust design ensures durability and consistent performance in industrial, laboratory, and commercial settings.
Through hole mounting. Flame retardant thermoplastic housing rated 94V-0. Gold plated copper alloy contacts. Dual polarization for accurate mating. Board standoffs aid flux removal. Kinked solder tails ensure secure connection.
Operating temperature from -55°C to 105°C. Rated voltage 250V and current 1A. Suitable for industrial and commercial electronics. Explore more PCB Headers and connectors on EnvMart for quality and reliability in electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm.
This model can operate at a maximum temperature of 105°C.
It has 20 contacts.
This connector supports through hole mounting on printed circuit boards.
The contacts are made of copper alloy and are gold plated for improved conductivity and corrosion resistance.
It is rated for 250V voltage and 1A current.
Yes, it features centre and dual polarization slots for accurate mating with IDC ribbon cable connectors.
The housing is made of thermoplastic material, which is flame retardant rated to 94V-0 standard.
Yes, it includes board standoffs to facilitate flux removal during assembly.
The orientation of this connector is straight.
This PCB header is suitable for applications in PCs, medical devices, networking hardware, industrial control systems, and business equipment.
The country of origin for this product is India.
