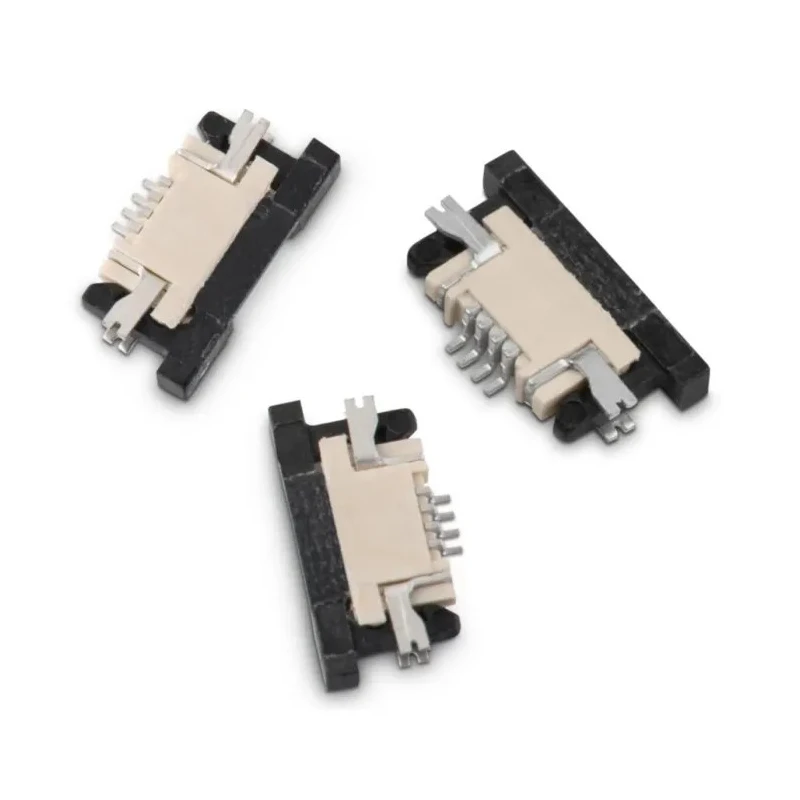

Wurth Elektronik WR-FPC 0.5 mm Pitch 6 Way Horizontal Female FPC Connector Surface Mount 687106183722

Wurth Elektronik 687106183722 is a high quality surface mount FPC connector designed for use in compact electronics requiring a 0.5 mm pitch and 6-way female connection. Its low profile (approximately 1.2 mm in height) makes it well suited for high density PCB layouts requiring reliable electrical connections with minimal space.

This connector series uses a flip lock actuator enabling zero insertion force (ZIF) for easy insertion and secure locking of flexible printed circuits. This mechanism provides high retention force and improves the reliability of both mechanical mounting and electrical contact.

The phosphor bronze contacts with tin over nickel plating ensure durability and consistent conductivity. The connector housing is constructed from liquid crystal polymer providing mechanical strength and thermal stability across operating temperatures ranging from -25°C to 85°C.

Rated for 50 V AC and a current rating of 400 mA, this connector is ideal for electronic devices including personal computers, tablets, mobile phones, camera modules, and various industrial and medical equipment. The bottom contact position and horizontal orientation add to design flexibility.

Designed specifically for high density, miniaturized electronic assemblies such as displays and touch panels, the WR-FPC connector series delivers compact size with reliable locking and electrical performance.

The connector features a low profile design for high density PCB mounting. Flip lock actuator enables easy FPC insertion and secure retention. Surface mount termination with solder tabs enhances mechanical stability on PCB.

Constructed from phosphor bronze contacts and liquid crystal polymer housing. Supports operating voltage up to 50 V AC and temperature ranging from -25°C to 85°C. Zero insertion force (ZIF) design reduces cable wear and insertion damage.

Widely used in consumer electronics, industrial, and medical device applications.

Set your projects apart with Wurth Elektronik’s WR-FPC series connectors for space-efficient, reliable flexible printed circuit connections. Browse the Electronics Components and FPC Connector category at EnvMart for more cutting-edge solutions.
