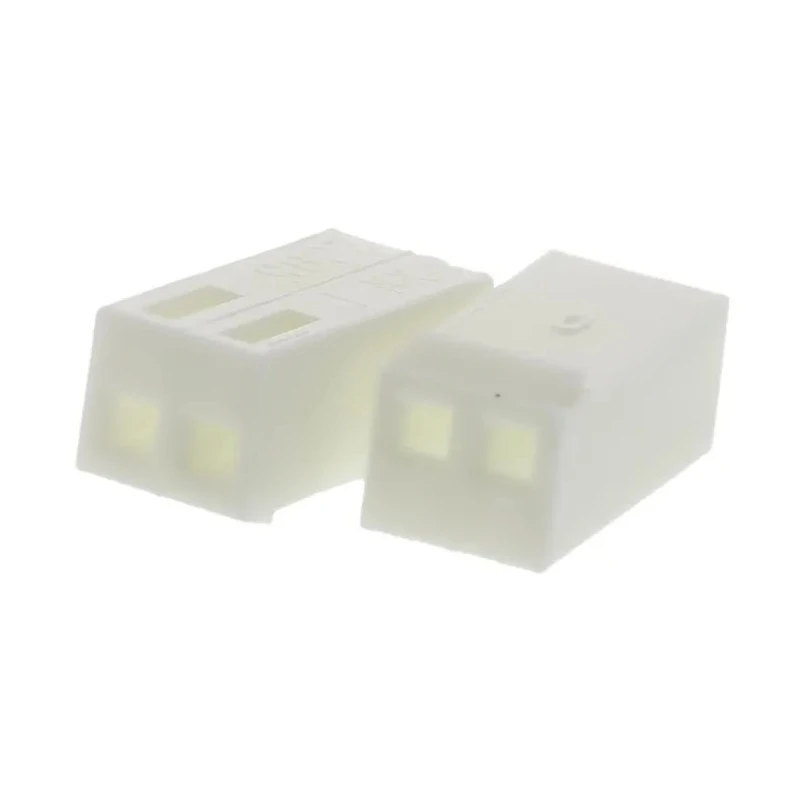

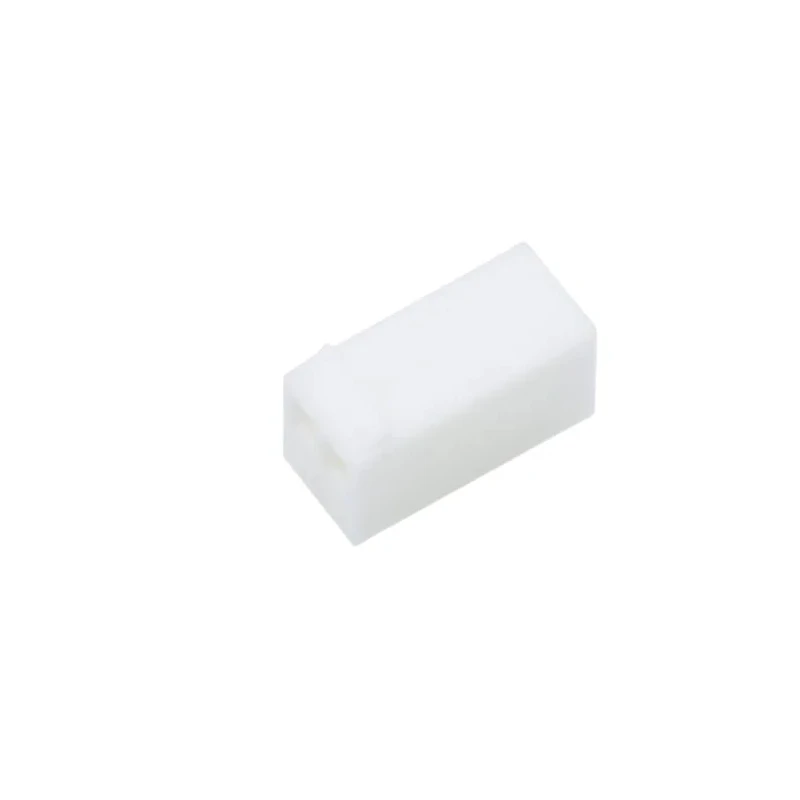

Molex Female Connector Housing Nylon 2.54 mm Pitch 2 Way 1 Row Straight 2695 Series 22-01-2027

Molex 22-01-2027 female connector housing is a precision-engineered cable mount connector from the 2695 series, featuring a 2.54 mm pitch and designed in a 2 way single row straight configuration. Manufactured from high-quality nylon, this connector housing provides excellent protection and insulation for electronic circuitry. Its compact size of 5.64 mm length and 4.82 mm width makes it ideally suited for high-density PCB assembly.

This connector housing accommodates two separate circuits, allowing for efficient multipole connections in sensitive electronic applications. The friction lock ramps integrated within the housing ensure a secure fit on the PCB, resisting vibration and movement that could otherwise cause connection failures.

The housing is engineered to be compatible with Molex KK connector terminals and connectors, ensuring broad interoperability with standard 2.54 mm pitch designs. Proper terminal insertion requires use of Molex insertion tools to maintain connection integrity and ease of installation.

Applications of this connector housing include automotive wiring systems, server management hardware, and video surveillance equipment where reliable, compact, and vibration-resistant connections are critical.

Key features include its nylon construction, straight orientation cable mount design, and compatibility with the Molex KK 2695 series connector range. This product provides a robust, easy-to-use connection solution for various electronic and electrical industrial contexts including manufacturing and electronics assembly.

Constructed from durable nylon material for electrical insulation and protection. Accommodates 2 circuits to ensure efficient and secure connectivity. Designed with a single row and straight orientation for easy cable mounting.

Compact dimensions of 5.64 mm length by 4.82 mm width fit crowded PCB environments. Features integrated friction lock ramps to secure connections against vibration and movement. Compatible with Molex KK connector system for universal applicability.

Suitable for automotive, server management, and surveillance system applications. Requires specified insertion tools for proper terminal installation and secure connections. Explore other advanced Connector Housings from Molex and related product categories on EnvMart.
