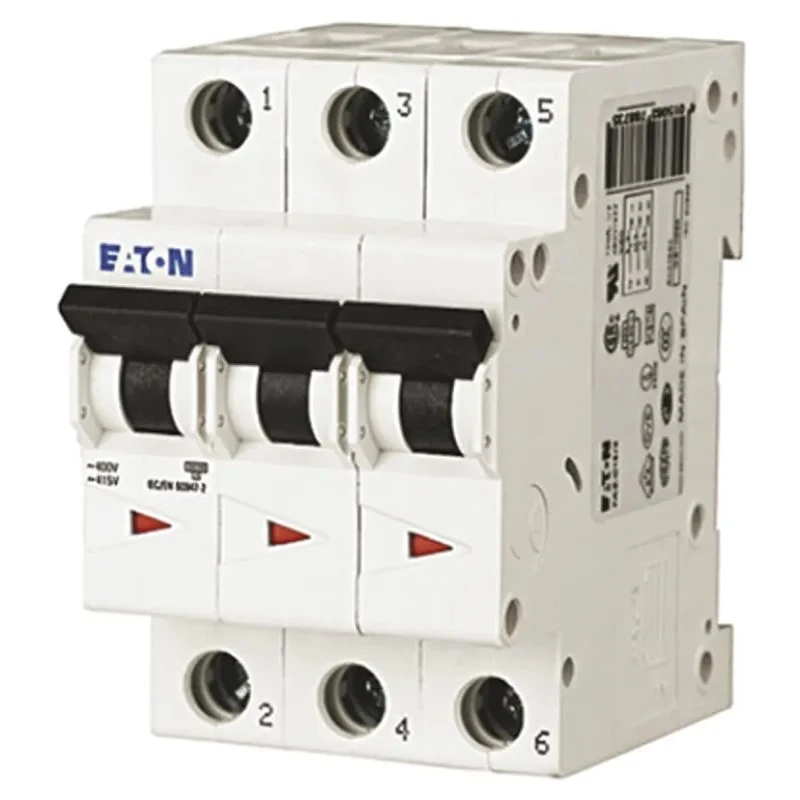

Eaton xEffect Miniature Circuit Breaker, 3-Pole, 16A, Type D Tripping, 400V AC, 6 kA Breaking Capacity 168081 FAZ6-D16/3

Eaton 168081 FAZ6-D16/3 miniature circuit breaker (MCB) is a high-quality electrical protection device engineered for industrial and commercial use. This 3-pole breaker with a 16 amp current rating offers reliable trip characteristics classified as Type D, suitable for selective tripping in circuits with moderate inrush currents.

The MCB operates at a rated AC voltage of 400 volts and is capable of breaking fault currents up to 6 kA, providing enhanced safety in electrical distribution circuits. Its design supports DIN rail mounting, enabling straightforward installation in control panels and switchboards.

The breaker includes screw terminal connections that ensure strong mechanical and electrical contact. The toggle switch type reset actuator allows for quick manual reset after fault clearance, increasing operational convenience.

Dimensionally, the device measures 17.5mm in width and 62mm in depth, making it compact and space-efficient for panel integration. With an IP20 protection rating, it safeguards users from solid foreign objects while ensuring accessibility to the controls.

Certified to IEC and EN 60898 standards, this Eaton xEffect series MCB meets stringent quality and safety requirements. Being an updated version of the former PLS6 model, it benefits from enhanced compliance and performance.

Designed for DIN rail mounting for easy installation. Supports rated AC voltage of 400 volts. Provides a breaking capacity of 6 kiloamperes ensuring safety under fault conditions. Equipped with screw-type terminals for secure connections.

Features instantaneous break time for rapid fault response. Toggle switch reset actuator offers convenient manual operation. IP20 rated enclosure providing basic protection against solid objects. Compact dimensions with 17.5mm width and 62mm depth.

Meeting IEC and EN 60898 standards ensuring compliance and reliability.

This Eaton 168081 FAZ6-D16/3 Miniature Circuit Breaker is suitable for a variety of electrical installations across industrial automation, commercial buildings, and electrical distribution panels. Its reliable performance ensures safe circuit interruption and protection against overloads and short circuits in accordance with international standards.
