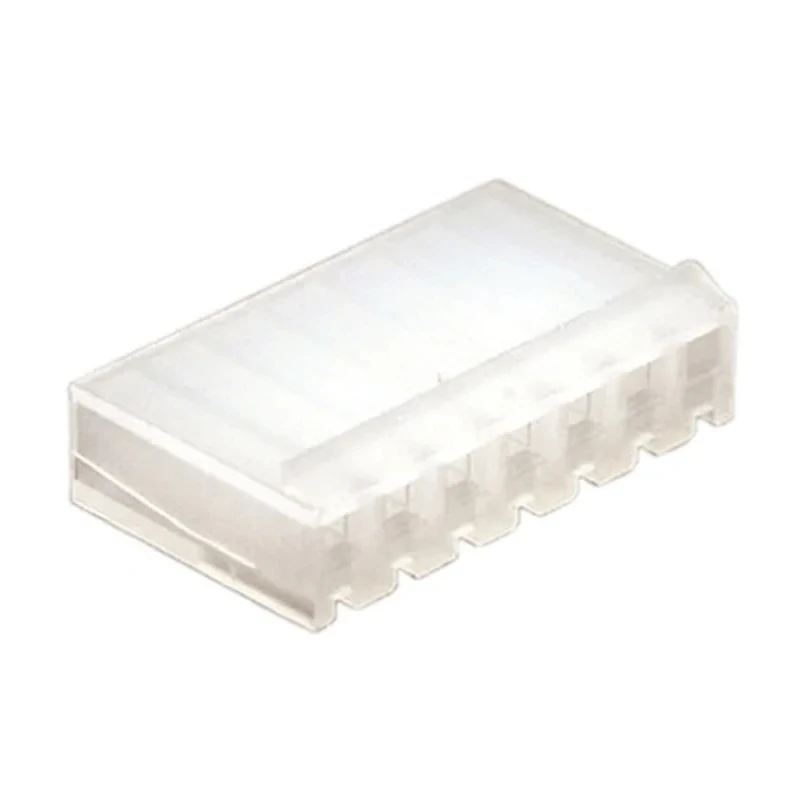

Molex KK 396 Female Connector Housing 11 Way 1 Row Straight 3.96 mm Pitch 09-50-3111
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 43.48mm |
| Width | 6.4mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | KK Connector |
| Number of Contacts | 11 |
| Connector Gender | Female |
Key Features
- Features a 3.96 mm pitch for precise connection spacing.
- Comprises 11 contact positions in one row for compact design.
- Constructed from durable polyamide housing material for long-lasting use.
- Designed with a friction lock to prevent accidental disconnection.
- Accepts KK 2478 and 2578 series terminals ensuring compatibility.
- Natural white color offers a professional and clean appearance.
- Straight orientation suitable for standard cable routing.
- Measures 43.48 mm length and 6.4 mm width for versatile installation.
Product Description
Molex 09-50-3111 KK 396 Female Connector Housing is a connector housing designed for cable mounting with 11 contact positions in a single row featuring a 3.96 mm pitch. Constructed from polyamide, this natural white housing offers dependable protection and connectivity for a variety of electronic and power connector applications.
This housing is part of Molex's KK 396 series, known for its reliable friction lock mechanism that prevents accidental disconnection during operation. The straight orientation facilitates straightforward cable routing and secure wiring setups. It is compatible with KK 2478 and 2578 series terminals, enabling versatile integration with standard connector terminals.
With precise dimensions of 43.48 mm length and 6.4 mm width, the housing fits compactly while ensuring robust structural integrity. The natural coloration maintains a professional aesthetic that suits industrial and commercial electrical assembly environments. Manufactured in China, it adheres to consistent quality manufacturing processes.
Notably, this connector housing is essential in wire-to-board configurations, commonly used in electronics manufacturing, power supply connectors, and related industrial applications. It helps secure multipole connections and safeguards contact assemblies from environmental and mechanical damage.
Features a 3.96 mm pitch for precise spacing between pins. Includes 11 female contact cavities arranged in a single row. Polyamide construction provides mechanical strength and electrical insulation. Friction lock design prevents unintentional disconnection, enhancing reliability.
Compatible with KK 2478 and 2578 terminals for flexible wiring solutions. Natural white color for professional appearance and easy identification. Straight orientation supports easy installation and cable management. Compact dimensions of 43.48 mm length and 6.4 mm width fit tight assemblies.
Manufactured in China for quality assurance. Suitable for industrial, electronics manufacturing, and power connector applications. Explore the wide range of Connector Housings and accessories available to enhance your electrical and electronic systems through EnvMart's dedicated product offerings.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex KK 396 Female Connector Housing features a pitch of 3.96 mm, allowing for precise spacing between pins.
This connector housing comprises 11 contact positions arranged in a single row.
The housing is constructed from polyamide, providing mechanical strength and electrical insulation.
It has a straight orientation, which supports straightforward cable routing and installation.
The dimensions are 43.48 mm in length and 6.4 mm in width, making it suitable for tight assemblies.
It is designed to accept KK 2478 and 2578 series terminals, ensuring versatile integration with standard connectors.
This connector housing is manufactured in China, adhering to consistent quality manufacturing processes.
This model is designed for cable mounting, suitable for various wiring setups.
The connector gender of this housing is female, designed for secure connections with compatible terminals.
It is commonly used in wire-to-board configurations, electronics manufacturing, and power supply connectors.
Yes, it is designed with a friction lock mechanism to prevent accidental disconnection during operation.
The natural white color offers a professional appearance and aids in easy identification within electrical assemblies.
