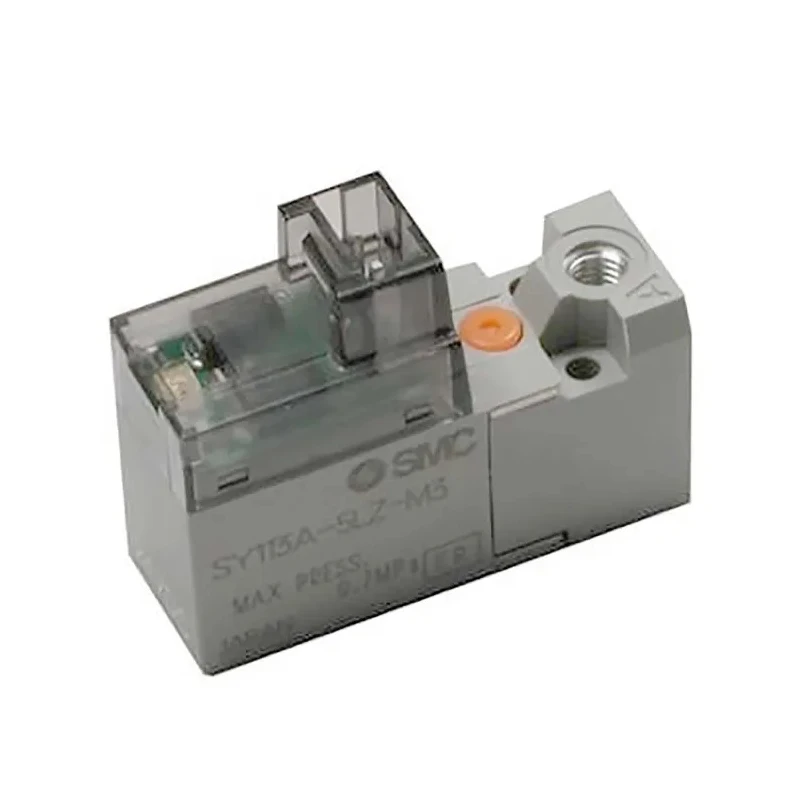

SMC Solenoid Pilot Valve 3/4 NC Solenoid Metric 12V Resin Body 0.7 Mpa SY100

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Pilot Valve 3/4 NC Solenoid Metric 12V Resin Body 0.7 Mpa SY100



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	12V
Brand	SMC
Body Material	Resin
Maximum Operating Pressure	0.7 Mpa
Response time	10ms or less
Height	27.8mm
Length	34.5mm
Model	SY100
Width	15.5mm
Mount Type	Base
Series	SY100
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	4
Port Size	M3 x 0.5
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Fluid	air
Maximum Flow Rate	11.78L/min
Cycle Life	100 million cycles (by SMC life test)
Standards/Approvals	CE
Connection Thread Standard	Metric
Minimum Pilot Pressure	0MPa
Valve Function	3/4 NC
Electrical Connection Type	Grommet
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.5W
Ambient & fluid temperature	max. 50°C
mm²	0.14 standard style

Key Features

Port size is M3 x 0.5, suitable for precise pneumatic applications.
Operates at a maximum pressure of 0.7 Mpa and a maximum flow rate of 11.78 L/min.
Constructed with a resin body material and base mount type for durable installation.
Electrical connection via grommet type ensures secure and reliable activation.
Designed for ambient and fluid temperatures up to 50°C with a response time of 10 ms or less.
Features a cycle life tested for up to 100 million operations.
Valve function is 3/4 NC with 4 positions for versatile control.

Product Description

SMC SY114-6G-Q solenoid pilot valve is engineered for pneumatic systems requiring reliable and precise control. This 12V single solenoid valve from the SY100 series features a metric thread connection with an M3 x 0.5 port size and female port gender. The valve body is made of resin, combined with rubber seal material to ensure durability and leak resistance under pressure up to 0.7 Mpa.

Mounting is done via a base mount, and the valve includes a 3/4 NC valve function with 4 positions, allowing for flexible usage in various pneumatic applications. It supports a maximum flow rate of 11.78 liters per minute and can operate safely within a temperature range from -10°C to 50°C.

Electrical connection is provided with a grommet type, drawing a low power consumption of 0.5 W. The solenoid coil is rated for 12V and is part of a series that supports voltages of 3, 5, 6, 12, and 24VDC, along with various AC voltages. The valve responds swiftly with a response time of 10 ms or less and has been tested for up to 100 million cycles, demonstrating excellent longevity.

Its compact size (27.8 mm height, 15.5 mm width, 34.5 mm length) makes it suitable for installations where space is limited. The valve is CE certified and made in Japan, confirming its compliance with industry standards and high manufacturing quality.

This solenoid pilot valve is ideal for use in industrial pneumatic systems, fluid power control, automation equipment, and manufacturing processes where controlled air flow is essential. The precision and durability of this valve make it suitable for both laboratory and commercial pneumatic applications.

Port size M3 x 0.5 with metric thread standard. Maximum operating pressure of 0.7 Mpa and maximum pilot pressure of 0.7 Mpa. Body material resin with rubber seals for fluid air applications. Electrical connection type: grommet with 0.5W power consumption.

Suitable for ambient and fluid temperatures up to 50°C. Cycle life tested for 100 million cycles under SMC standards. Compact design dimensions of 27.8 mm height, 15.5 mm width, and 34.5 mm length. Explore our selection in Pneumatic Solenoid Valves for high-quality industrial and manufacturing valve solutions at EnvMart.
