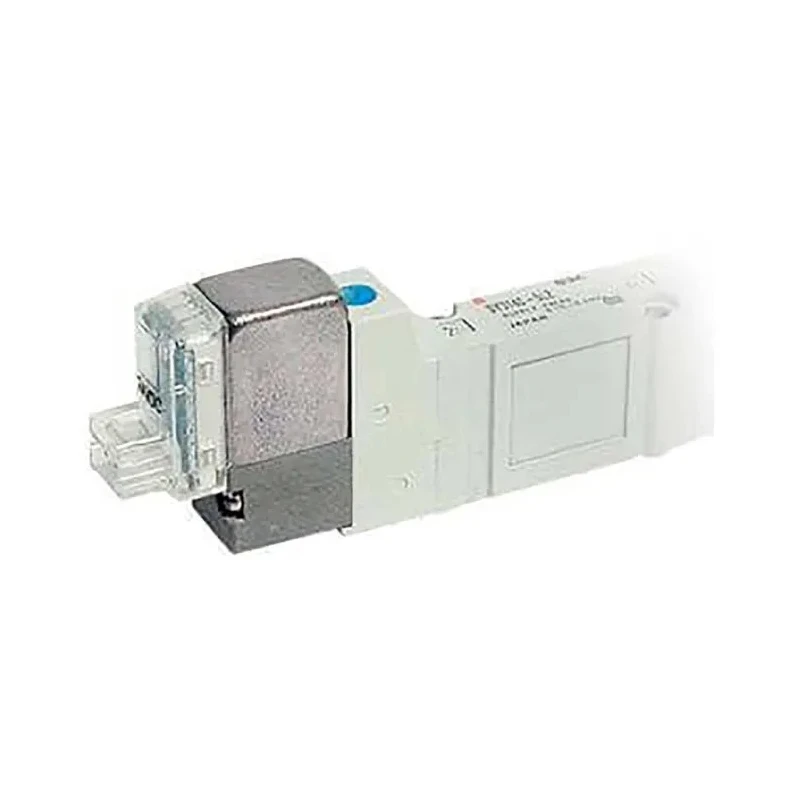

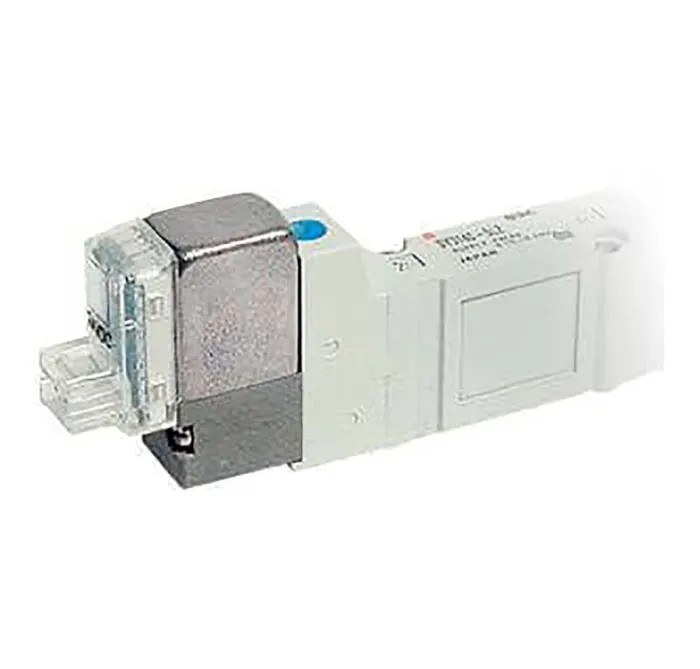

SMC Solenoid Pilot Valve G 1/8 One-Touch Fitting Connection Thread Standard G Rc NPT NPTF SY5000

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Pilot Valve G 1/8 One-Touch Fitting Connection Thread Standard G Rc NPT NPTF SY5000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SY5000
Mount Type	Body Ported, Base
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Thread Size	1/8 in
Port Type	One-Touch Fitting
Number of Positions	2
Port Size	G 1/8
Seal Material	Halogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Operating pressure range	-100 kPa to 0.7
Fluid	Air
Maximum Flow Rate	746L/min
Standards/Approvals	RoHS
Connection Thread Standard	G, Rc, NPT, NPTF
Minimum Pilot Pressure	0.1MPa
Ambient and fluid temperature [°C]	-10 to 50 (No freezing)
Coil rated voltage [DC]	24, 12 V

Key Features

Operates at voltages of 24 V and 12 V DC to control pilot pressure efficiently.
Maximum operating pressure of 0.7 MPa with a minimum pilot pressure of 0.1 MPa.
Constructed with an aluminium body and halogenated nitrile rubber seals for durability.
Supports multiple valve functions including 3 position closed and exhaust center, 2 position single and double solenoid.
Designed for operation within temperature ranges from -10°C to 50°C without freezing.
Features 5 ports and 2 positions with connection thread standards G, Rc, NPT, and NPTF.
Maximum flow rate of 746 L/min, ensuring reliable pneumatic performance.
Body ported mount type suitable for robust industrial installations.

Product Description

SMC SY5120-6LOU-01F-Q solenoid pilot valve from the SY5000 series is engineered for precision control in pneumatic systems using air fluid. It features a G 1/8 one-touch fitting port size compatible with connection thread standards including G, Rc, NPT, and NPTF, making it highly versatile for diverse industrial installations.

The valve operates on coil rated voltages of 24 V and 12 V DC and supports multiple valve functions such as 3 position closed, 3 position exhaust centre, 2 position single solenoid, and 2 position double check configurations. It offers a maximum operating pressure of 0.7 MPa and a minimum pilot pressure of 0.1 MPa. Suitable for ambient and fluid temperature ranges from -10°C to 50°C without the risk of freezing, this valve is ideal for demanding environmental conditions.

Constructed with a lightweight but durable aluminium body and halogenated nitrile rubber seals, the valve assures long service life and resistance to wear. The 5 port design and body ported mount type ensure easy integration into existing pneumatic circuits. With a maximum flow rate of 746 L/min, it provides efficient and responsive flow control for industrial pneumatic applications.

This solenoid pilot valve conforms to RoHS standards, ensuring environmentally responsible manufacturing. Manufactured in Japan, it upholds high-quality standards for reliability in industrial, manufacturing, automation, and HVAC systems.

Operates with coil rated voltage options of 24 V and 12 V DC. Maximum operating pressure of 0.7 MPa for robust pneumatic control. Aluminium body coupled with halogenated nitrile rubber seals for durability. Multiple position valve functions for flexible application needs.

Wide ambient and fluid temperature range from -10°C to 50°C. Five ports and connection thread standards G, Rc, NPT, and NPTF. Maximum flow rate of 746 L/min ensures operational efficiency. Body ported mount design for secure installation.

RoHS compliant for environmental safety. Japanese origin guarantees premium build quality.

This SMC SY5000 series solenoid pilot valve is perfect for industrial automation, pneumatic tool control, HVAC systems, and fluid control in manufacturing environments. Explore EnvMart's wide selection of precision pneumatic valves and accessories to enhance your system performance.

Explore more products in our Pneumatic Solenoid Valves category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of this model is 0.7 MPa.

It operates on coil rated voltages of 24 V and 12 V DC.

The maximum flow rate is 746 L/min, ensuring efficient pneumatic performance.

This valve supports connection thread standards G, Rc, NPT, and NPTF.

It is designed for operation within a temperature range of -10°C to 50°C without freezing.

This model features a total of 5 ports.

It is constructed with an aluminium body and halogenated nitrile rubber seals.

The valve uses a body ported mount type, suitable for robust industrial installations.

It supports multiple valve functions including 3 position closed, 3 position exhaust center, 2 position single solenoid, and 2 position double check configurations.

The minimum pilot pressure required is 0.1 MPa.

Yes, this model conforms to RoHS standards for environmentally responsible manufacturing.

It is manufactured in Japan, ensuring high-quality standards.
