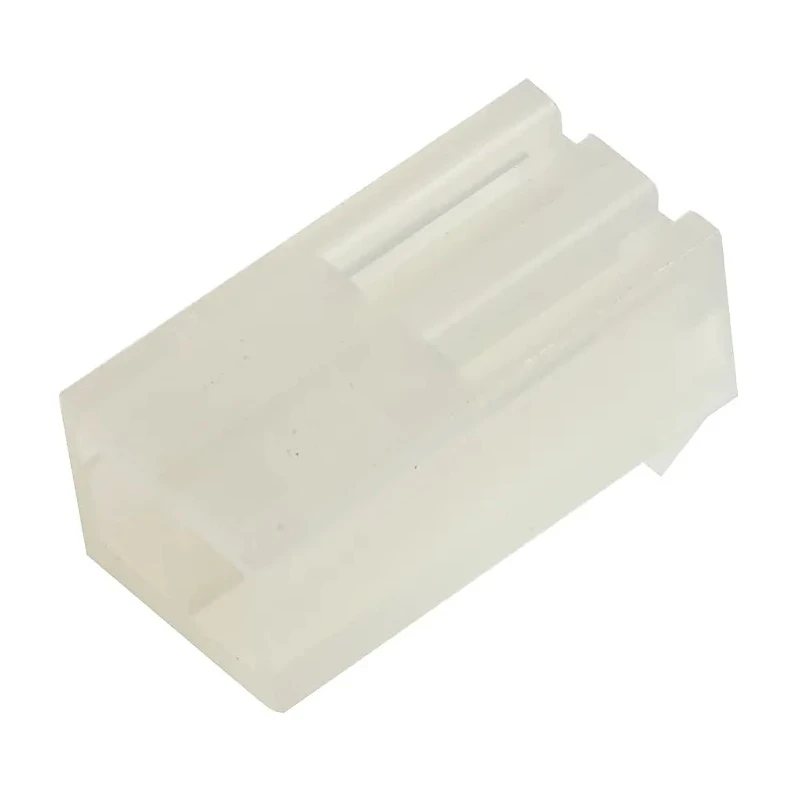

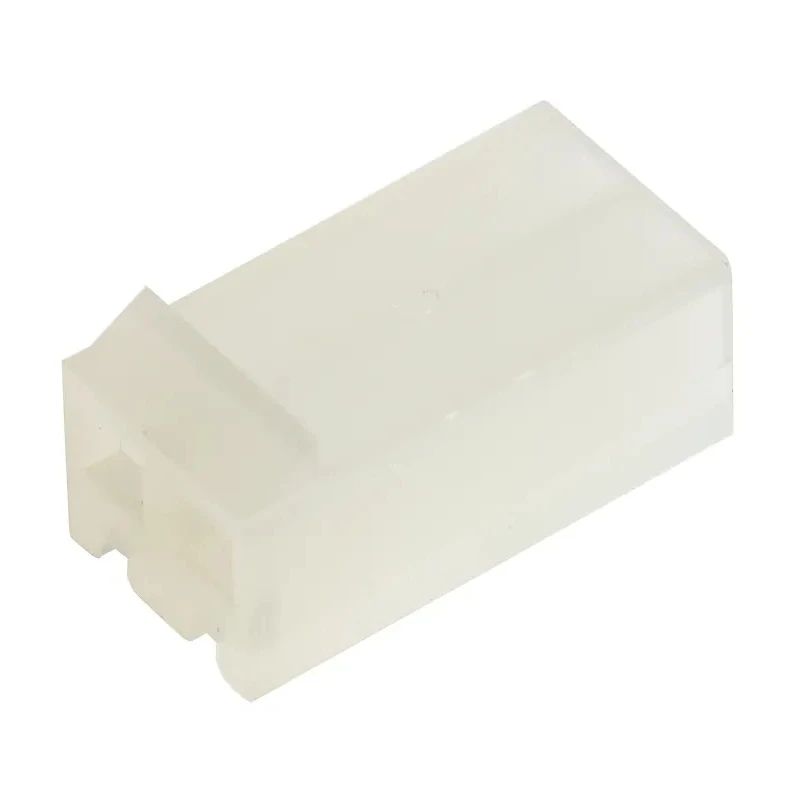

Molex KK 396 Female Connector Housing 3.96 mm Pitch 2 Way 1 Row Straight 09-50-3021
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 7.82mm |
| Width | 15.88mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
Key Features
- The housing supports 2 contacts in a single row, ensuring secure electrical connections.
- Constructed with flame-retardant nylon material for safety and durability.
- Designed with straight orientation and friction lock for reliable connection retention.
- Compatible with Molex 2478 crimp terminals for 18-24 AWG and 2578 series for 22-26 AWG wires.
- Polarized ribs prevent misalignment and mismating during installation.
- Low halogen content limits toxic fume release in case of fire.
- Compact dimensions with 7.82 mm length and 15.88 mm width to fit standard PCB layouts.
- Ideal for industrial automation, pharmaceutical manufacturing, marine, and medical industry applications.
Product Description
Molex 09-50-3021 connector housing is a female, 2-way, single-row cable mount designed for safe and reliable wire-to-PCB connections with a 3.96 mm pitch.
This connector housing features a lightweight yet durable nylon construction that provides electrical insulation and protection against dust and debris. The flame-retardant and low halogen material composition enhances safety in challenging industrial environments.
The straight body orientation and friction lock mechanism ensure a secure fit that resists accidental disconnection due to harsh vibrations or handling. Polarised ribs aid in proper connector alignment for consistent mating, improving signal reliability.
Compatibility with Molex 2478 (18-24 AWG) and 2578 (22-26 AWG) crimp terminals makes this housing versatile for a range of wire gauge applications.
Its compact size allows integration into industrial automation systems, pharmaceutical manufacturing lines, marine electronics, and medical equipment assembly requiring dependable electrical interconnections.
The housing supports 2 contacts in single row layout. Made from flame-retardant nylon material. Friction lock prevents accidental disconnections. Polarized ribs prevent misalignment. Compatible with Molex 2478 and 2578 crimp terminals.
3.96 mm pitch for standard PCB connection. Measures 7.82 mm in length and 15.88 mm in width. Suitable for industrial, pharmaceutical, marine, and medical uses. Explore more high-quality Connector Housing solutions at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 3.96 mm, designed for standard PCB connections.
This model measures 7.82 mm in length and 15.88 mm in width, making it compact for integration into various applications.
It supports 2 contacts in a single row layout, facilitating secure electrical connections.
This housing is compatible with Molex 2478 crimp terminals for 18-24 AWG wires and 2578 series for 22-26 AWG wires.
It is constructed from flame-retardant nylon material, providing electrical insulation and protection against dust and debris.
Yes, it includes polarized ribs that help prevent misalignment and mismating during installation.
The housing features a straight orientation, which aids in secure connections.
The mount type for this connector housing is cable, designed for reliable wire-to-PCB connections.
It is suitable for use in industrial automation, pharmaceutical manufacturing, marine electronics, and medical equipment assembly.
The housing is made from low halogen material, which limits toxic fume release in case of fire, enhancing safety in industrial environments.
This model has 1 row, designed to support 2 contacts in a single configuration.
The country of origin for this connector housing is India.
