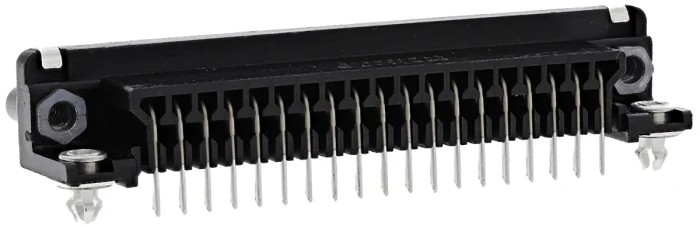

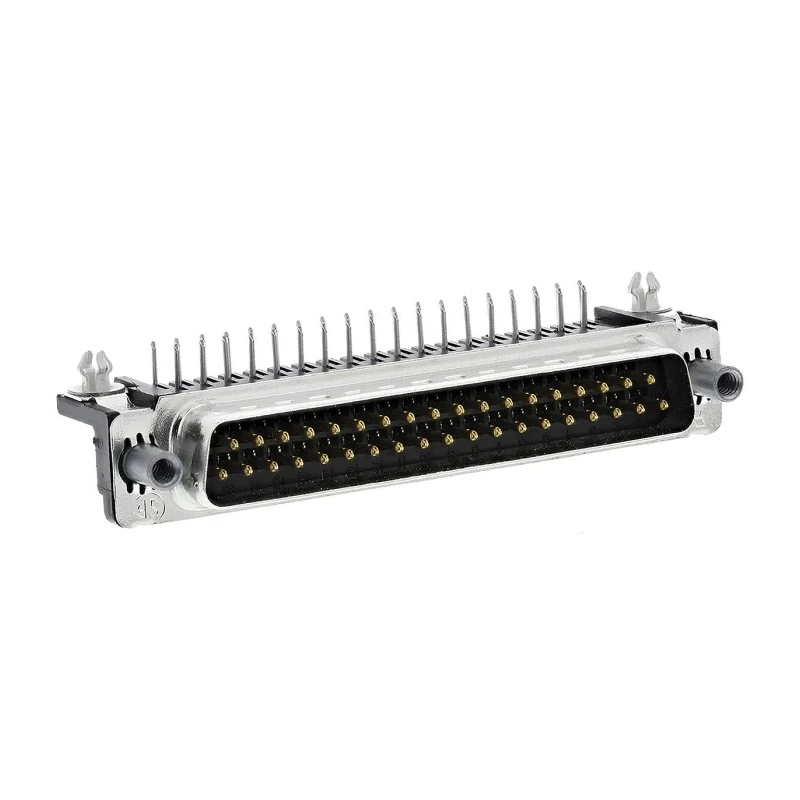

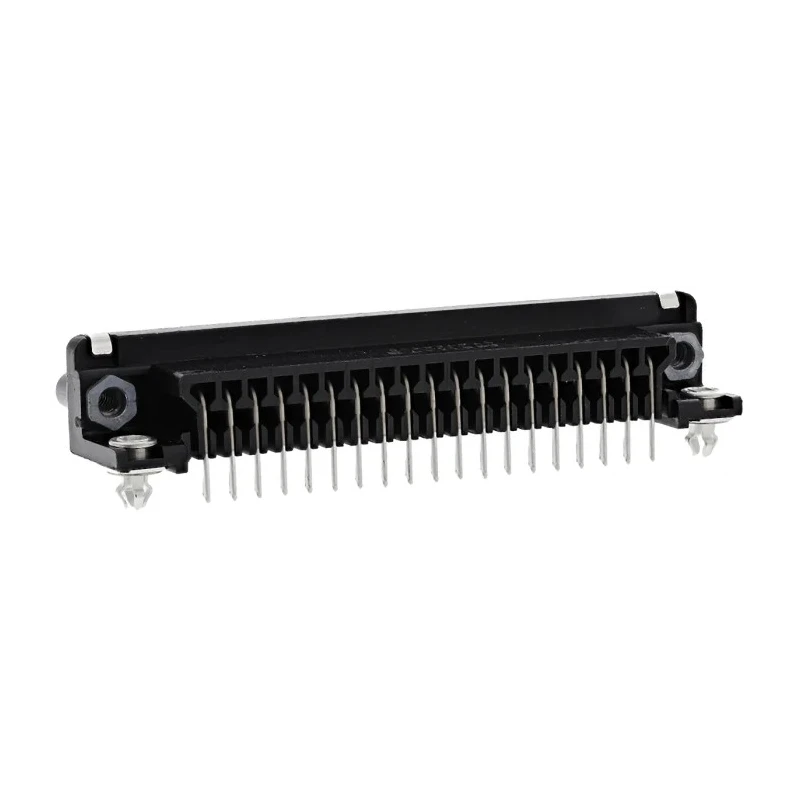

TE Connectivity AMPLIMITE HD-20 37 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747843-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.75mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | D |
Key Features
- Features 37 contacts for extensive signal connections.
- Right angle orientation provides space-saving PCB mounting.
- Pitch is precisely 2.75 millimeters for consistent interfacing.
- Uses 4 to 40 UNC screw lock hardware for secure fastening.
- Housing is made of 94V-0 rated black thermoplastic for insulation and safety.
- Contacts are brass with gold over nickel plating to ensure excellent conductivity and corrosion resistance.
- Maximum operating temperature up to 105 degrees Celsius supports demanding environments.
- Meets RoHS standards ensuring environmental compliance.
Product Description
TE Connectivity 5747843-6 AMPLIMITE HD-20 37 Way Right Angle Through Hole D-Sub Connector is engineered for high-performance electronic applications requiring secure and reliable connections.
This D-Sub connector utilizes a 2.75 mm pitch with 37 male contacts made from brass with gold over nickel plating to provide optimum electrical conductivity and corrosion resistance. The housing features a durable black thermoplastic rated to 94V-0, capable of withstanding operating temperatures from -55°C up to 105°C, suitable for industrial, manufacturing, and electronic assembly applications.
The connector’s right angle configuration aids in efficient PCB layout by saving space and facilitating solder termination through through-hole mounting. Mechanical integrity is assured with a tin plated steel shell and zinc plated female screwlocks employing 4 to 40 UNC screws, ensuring a secure fastening under vibration and environmental stress.
This product conforms to RoHS standards supporting environmental safety and regulatory compliance. It is ideal for use in telecommunications, data communication equipment, instrumentation, and other industrial electronic interfaces requiring robust multi-contact connections.
37 contacts for extensive signal and power connectivity. Right angle orientation supports compact PCB layouts. Durable gold over nickel plated brass contacts. High-temperature thermoplastic housing ensures safety. Robust mechanical shell and screw lock system.
RoHS compliant for environmental protection. Solder termination for reliable electrical performance. Through hole mount type for stable PCB installation. Wide operating temperature range from -55°C to 105°C. Standard D-Sub shell size D compatible with industry connector systems.
Set your projects apart with the trusted reliability of TE Connectivity AMPLIMITE HD-20 connectors. Explore related D-Sub Connectors for various pin counts and mounting styles available in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity AMPLIMITE HD-20 connector is 2.75 mm, which ensures consistent interfacing across connections.
This connector features 37 male contacts, allowing for extensive signal and power connectivity.
The maximum operating temperature for this connector is 105°C, making it suitable for demanding environments.
The contacts are made of brass with gold over nickel plating, which provides excellent electrical conductivity and corrosion resistance.
This model uses a through hole mounting type, which provides stable installation on PCBs.
The connector has a right angle orientation, which aids in efficient PCB layout by saving space.
It utilizes solder termination, ensuring reliable electrical performance during connections.
The housing is made of thermoplastic rated to 94V-0, providing insulation and safety.
Yes, this connector conforms to RoHS standards, ensuring environmental compliance.
The minimum operating temperature for this connector is -55°C, allowing it to function in low-temperature environments.
The connector uses 4 to 40 UNC screw lock hardware for secure fastening.
This connector has a standard D-Sub shell size D, compatible with industry connector systems.
