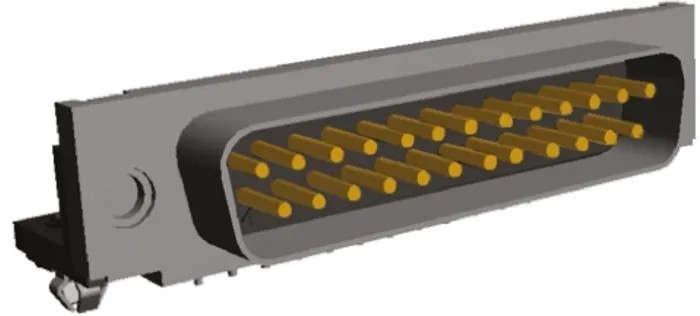

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747842-4

Free Delivery in India | Lowest Global Shipping Charges

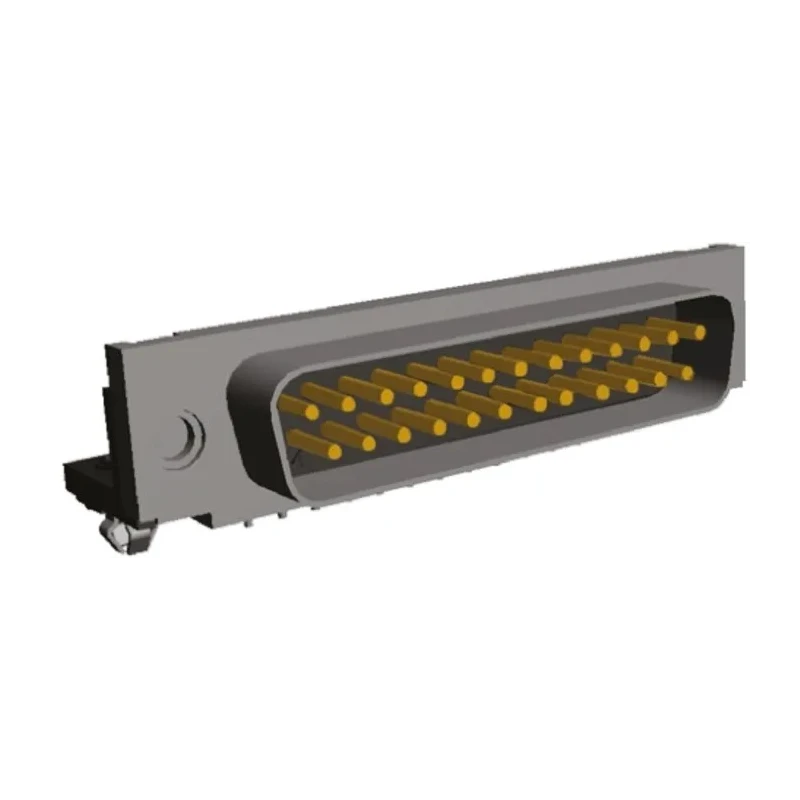

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747842-4

Name: TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747842-4
Brand: TE Connectivity
SKU: 186245
Price: 12.07 USD
Availability: InStock



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Right Angle
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	AMPLIMITE HD-20
Mounting Hardware	4 to 40 UNC Threaded Insert
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.75mm
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
D-Sub Shell Size	D
ERNI TMC 25 Way Right Angle PCB D-sub Connector Plug, 2.84mm PitchBrand	ERNI

Key Features

Features 25 contacts with right angle orientation for compact PCB mounting.
Constructed with thermoplastic housing and brass contacts plated with gold over nickel for durability.
Includes 4 to 40 UNC threaded inserts for secure mounting.
Operates reliably between -55°C to 105°C temperature range.
Uses 2.75 mm pitch suitable for high-density connection requirements.
Supports solder termination type ensuring secure and stable circuitry connections.
Compliant with RoHS standards for environmental safety.
Compatible with AMPLIMITE HD-20 series connectors from TE Connectivity.

Product Description

TE Connectivity model 5747842-4 AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector is engineered for high-performance electronic and industrial applications requiring reliable signal integrity and mechanical robustness. This connector features a right angle male interface with 25 brass contact points plated with gold over nickel to assure excellent conductivity and corrosion resistance.

The housing is made of durable thermoplastic material rated at 94V-0, offering flame resistance and mechanical stability. The mounting is facilitated through 4 to 40 UNC threaded inserts made from chromate plated zinc, providing a secure and vibration-resistant fit on PCBs with a recommended thickness of up to 2.36 mm.

Designed to operate efficiently within a temperature range from -55°C to 105°C, this connector is suitable for a variety of industrial, laboratory, construction, and commercial electronics environments. The 2.75 mm pitch spacing enables high-density PCB mounting while maintaining ease of solder termination. AMPLIMITE HD-20 series connectors are widely recognized for their reliability in harsh operating conditions.

Features 25 position contact layout supporting high pin counts. Right angle orientation ideal for space-constrained PCB layouts. Gold over nickel contact plating enhances electrical performance and lifespan. Thermoplastic housing ensures durability and flame retardance.

Includes threaded inserts offering secure mounting and mechanical stability. Wide operating temperature range supports diverse environmental conditions. RoHS compliant design promotes sustainable and environmentally responsible manufacturing.

Suitable for industrial power connectors, electronic instruments, and control systems.

This connector is an essential component for engineers and designers requiring high quality and dependable D-Sub connections. Its robust build and precise engineering align well with demanding industry standards and applications.

Explore more connectors and related components within the TE Connectivity AMPLIMITE HD-20 series on EnvMart for comprehensive electronic solutions.
