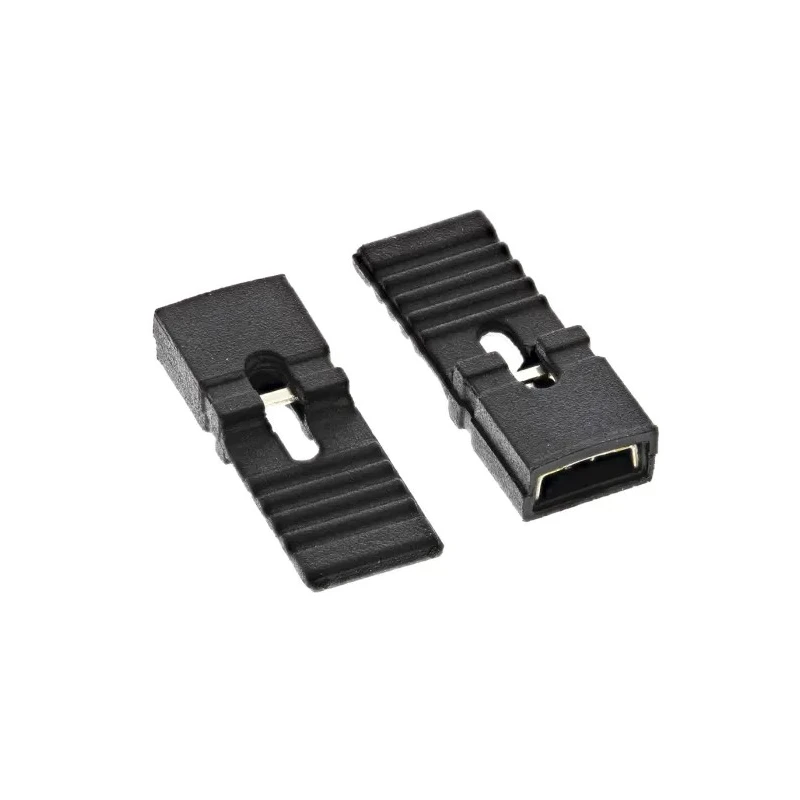

ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch AKSPLTG BLACK

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch AKSPLTG BLACK

Name: ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch AKSPLTG BLACK
Brand: ASSMANN WSW
SKU: 208456
Price: 0.09 USD
Availability: InStock



Category Jumpers & Shunts Brand ASSMANN WSW Condition New

Specifications

Country of Origin	India
Voltage	1000V
Brand	ASSMANN WSW
Colour	Black
Orientation	Straight
Current	3A
Length	13.5mm
Model	AKSPLTG BLACK
Depth	2.54mm
Width	2.44mm
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Sub Type	Closed Top
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	30mΩ

Key Features

Features a durable polybutylene terephthalate housing for enhanced insulation.
Contacts are made of brass with gold plating ensuring reliable conductivity and corrosion resistance.
Compact dimensions include 13.5mm length, 2.44mm width, and 2.54mm depth.
Designed with a closed top to provide secure connection and prevent accidental contact.
Supports a maximum contact resistance of 30 milliohms for efficient electrical performance.
Ideal for PCB connectors and wire housing applications in electronics and electrical systems.
Suitable for industrial, manufacturing, and electronic component assembly uses.

Product Description

ASSMANN WSW AKSPLTG BLACK Jumper is a straight female closed top jumper with 2 ways and 1 row, set at a 2.54 mm pitch. It is engineered for electrical applications requiring reliable and secure PCB connections, supporting a maximum voltage rating of 1000V and current up to 3A.

The housing is crafted from black polybutylene terephthalate (PBT), offering exceptional durability and insulation with a UL94V-0 flammability rating. The brass contacts are plated with gold to ensure excellent conductivity and resistance to corrosion, which is critical for long-lasting performance in industrial environments.

With compact physical dimensions of 13.5 mm length, 2.44 mm width, and 2.54 mm depth, this jumper facilitates efficient space management on PCB designs. Its closed top design protects the contacts and prevents accidental shorting, ensuring safety during installation and operation.

This jumper is widely employed in electronics manufacturing, industrial automation systems, and power distribution setups where robust and precise connectivity is essential. It supports applications in commercial electronics, laboratory equipment, and other environments requiring precise electrical connection components.

Durable polybutylene terephthalate (PBT) housing for insulation and safety. Gold-plated brass contacts ensure longevity and excellent electrical conductivity. Designed for a pitch of 2.54 mm, suitable for standard PCB layouts.

Closed top prevents accidental contact and enhances security of connections. Rated for 3A current and 1000V voltage, fitting diverse electrical requirements. Compact length of 13.5mm fits tight PCB arrangements. Maximum contact resistance of 30 milliohms for low-loss connections.

The package contains one jumper suitable for assembling or modifying electronic devices and connectors. Its standard sizing and robust materials make it a preferred choice among engineers and manufacturers for reliable electronic component design.

Choose ASSMANN WSW jumpers for premium quality and precise performance. Explore more products in the Electronics & Electricals category at EnvMart for all your connector and jumper needs.
