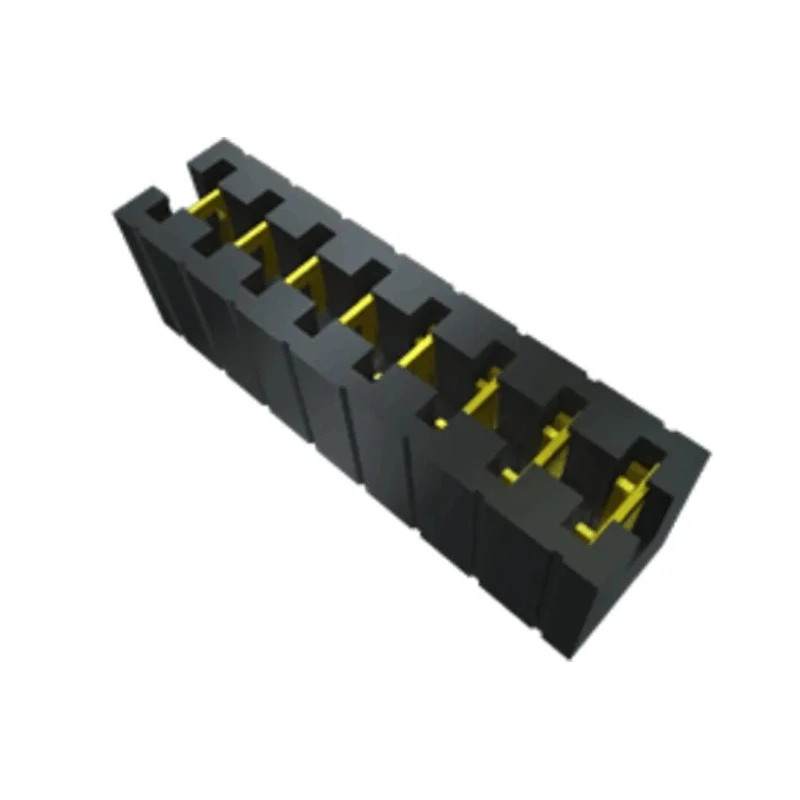

Samtec MNT Shunt Straight Female Black Multi Position Shunt 4 Way 1 Row 2.54 mm Pitch MNT-104-BK-T

Free Delivery in India | Lowest Global Shipping Charges

Samtec MNT Shunt Straight Female Black Multi Position Shunt 4 Way 1 Row 2.54 mm Pitch MNT-104-BK-T

Name: Samtec MNT Shunt Straight Female Black Multi Position Shunt 4 Way 1 Row 2.54 mm Pitch MNT-104-BK-T
Brand: Samtec
SKU: 215909
Price: 1.23 USD
Availability: InStock



Category Jumpers & Shunts Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	450V
Brand	Samtec
Colour	Black
Color	Black
Orientation	Straight
Current	3.9A
Length	10.16mm
Model	MNT-104-BK-T
Depth	6.1mm
Width	5.08mm
Housing Material	Glass Filled Polyester
Contact Material	Phosphor Bronze
Series	MNT
Sub Type	Multi Position Shunt
Number of Rows	1
Positions	4 to 40
Pitch	2.54mm
Contact Plating	Matt Tin
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female

Key Features

Constructed with black glass filled polyester housing for durability.
Features phosphor bronze contacts plated with matt tin for enhanced conductivity.
Supports a current rating of 3.9 A and voltage up to 450 V.
Compact dimensions include 10.16 mm length, 5.08 mm width, and 6.1 mm depth.
Designed for straight orientation with a single row configuration.
Meets standard industry requirements without additional certifications.
Positions available range from 4 to 40 to suit various applications.

Product Description

Samtec MNT-104-BK-T Multi Position Shunt is a straight female connector designed for electronic and electrical PCB applications. It features a black glass filled polyester housing and phosphor bronze contacts plated with matt tin to ensure reliable conductivity and mechanical strength.

This shunt supports a current rating of 3.9 A and voltage up to 450 V, making it suitable for Power and PCB connectors in industrial electronics and automation systems. Its compact size with length 10.16 mm, width 5.08 mm, and depth 6.1 mm allows use in dense PCB layouts requiring precise positioning.

The shunt is configured with 4 contacts in one row with 2.54 mm (0.100 inch) pitch, supporting multi-position configurations from 4 to 40 positions. The straight orientation aligns with typical PCB connector requirements for jumper and shunt applications.

Made by Samtec, part of the MNT series, this product does not have any special standards or approvals but is widely used in industrial, electronic manufacturing, and power distribution setups.

Black glass filled polyester housing provides high durability and electrical insulation. Phosphor bronze contact material with matt tin plating ensures corrosion resistance and excellent conductivity. Supports electrical ratings of 3.9 A current and 450 V voltage.

Compact 10.16 mm length and 5.08 mm width for space-saving PCB design. 4 contact positions in a single row with 2.54 mm pitch. Straight orientation designed for efficient jumper applications. Suitable for industrial electronics, automation, and PCB connector systems.

This multi-position shunt is an essential component for designers requiring flexible and reliable PCB jumpers. Browse related Electrical Connectors and Jumpers & Shunts at EnvMart for complementary products.
