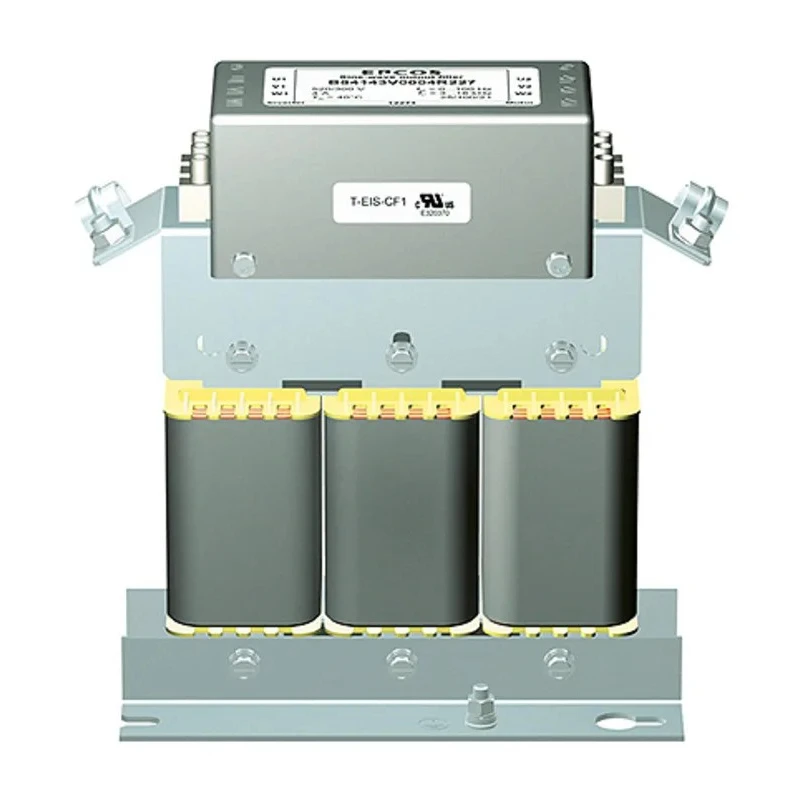

TDK Chassis Mount EMC Filter Terminal Block 3 Phase 33A 520V AC 50Hz 60Hz B84143V0033R227

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Filter Terminal Block 3 Phase 33A 520V AC 50Hz 60Hz B84143V0033R227



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	400mm
Length	440mm
Model	B84143V0033R227
Depth	161mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84143V
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-25°C
Maximum Current	33A
Number of Phases	3
Maximum Voltage	520V ac
Standards/Approvals	RoHS
Termination Style	Terminal Block

Key Features

Chassis mount design ensures secure installation in electrical panels.
Terminal block termination style provides easy and reliable connections.
Operating temperature range from -25°C to 100°C for durability.
Compact dimensions measuring 440mm length, 400mm height, and 161mm depth.
Optimized for sine wave output filters in motor drives and frequency converters.
Reduces motor noise and eddy current losses through high efficiency filter design.
Provides natural cooling and operates well under full load conditions.
IP20 protection and finger-safe terminal blocks enhance user safety.

Product Description

TDK B84143V0033R227 chassis mount EMC filter is a high-performance power line filter designed for 3-phase electrical systems operating at 520V AC and frequencies of 50 Hz and 60 Hz. With a maximum current rating of 33A, this EMC filter is part of the B84143V series and features a robust chassis mount construction with terminal block connections.

The B84143V0033R227 filter effectively reduces motor noise and eddy current losses by delivering low ripple sinusoidal phase-to-phase voltages and dv/dt reduction. The filter body measures 440mm in length, 400mm in height, and 161mm in depth, providing a compact and space-efficient mounting solution.

Engineered for use in frequency converters for motor drives, HVAC systems, traction, conveyor systems, pumps, and elevators, this EMC filter supports industrial and commercial applications requiring reliable electromagnetic compatibility (EMC) performance.

Featuring natural cooling and optimized design for full load operation, the filter incorporates IP20 protection and finger-safe terminal blocks for enhanced user safety. Its copper busbar terminals ensure dependable electrical connections while meeting RoHS compliance and environmental standards.

Chassis mount type for secure and accessible installation. Terminal block termination style for efficient wiring. Supports 3-phase systems with 33A maximum current capability. Compact dimensions: 440mm length x 400mm height x 161mm depth.

Operating temperature range from -25°C up to 100°C. Provides dv/dt reduction and low ripple sinusoidal output. Natural cooling mechanism and IP20-rated protection. Compliant with RoHS environmental directives. Manufactured in Hungary to stringent quality standards.

This EMC filter is ideal for use in various industrial sectors including HVAC equipment manufacturers, manufacturing plants, water treatment facilities, and elevator system integrators. The product supports enhanced electromagnetic interference (EMI) mitigation and ensures long-lasting, reliable operation in demanding environments.
