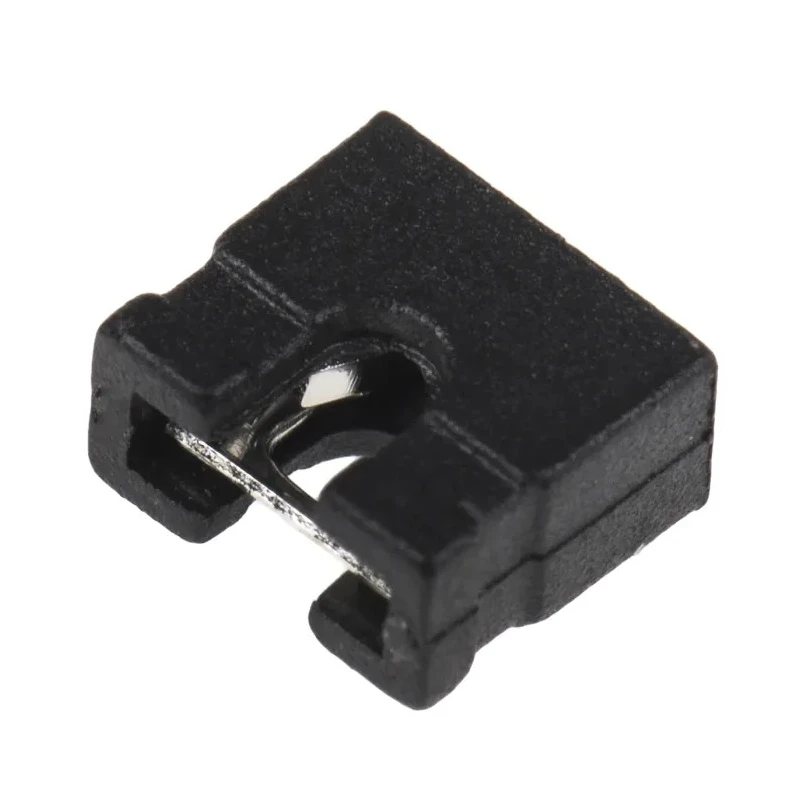

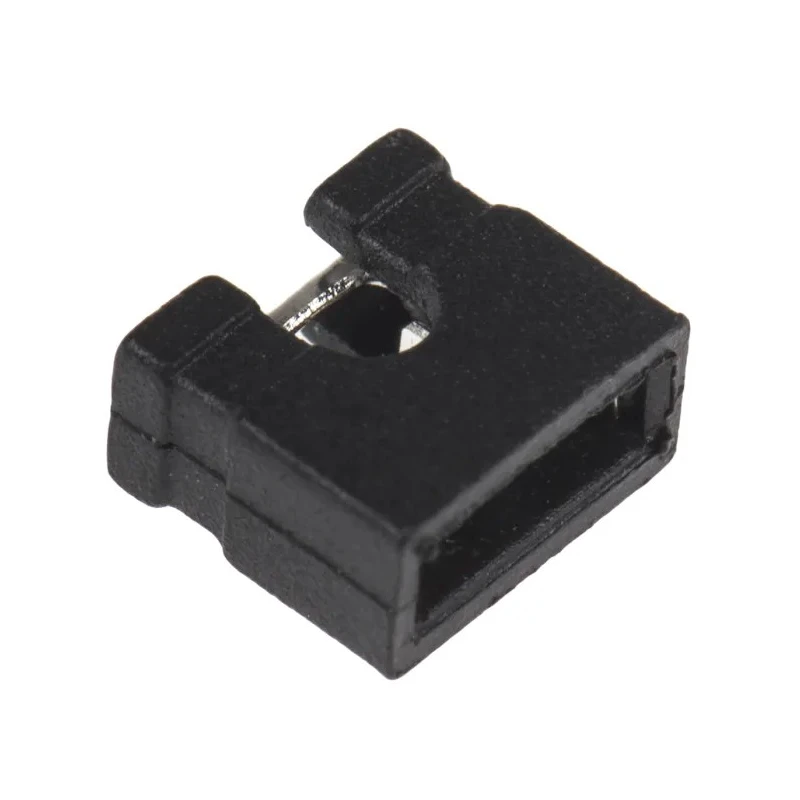

ASSMANN WSW Jumper Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch AKSNT/Z BLACK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | ASSMANN WSW |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 4.6mm |
| Model | AKSNT/Z BLACK |
| Depth | 2.44mm |
| Width | 2.44mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Two-way, one row design with a 2.54 mm pitch for precise connection spacing.
- Constructed with polybutylene terephthalate housing for durability and electrical insulation.
- Brass contacts with tin plating ensure optimal conductivity and corrosion resistance.
- Supports a current rating of 3 A and voltage rating up to 1000 V.
- Straight female connector orientation suitable for low profile PCB mounting.
- Compact dimensions of 4.6 mm length, 2.44 mm width and depth for efficient PCB layout.
- Maximum contact resistance rated at 30 mΩ for stable signal transmission.
- Black color housing for easy identification and professional appearance.
Product Description
The ASSMANN WSW AKSNT/Z BLACK Jumper is a precision-engineered electronic component designed for seamless PCB connection and shorting applications. Featuring a straight female open top connector configuration with 2 ways in a single row, it offers a compact pitch of 2.54 mm, ideal for dense circuit board layouts requiring reliable electrical connections.
The housing is made of polybutylene terephthalate, a robust plastic material that provides excellent electrical insulation and mechanical strength. The brass contacts, plated with tin, deliver low contact resistance and reliable conductivity, supporting up to 3 amperes of current and voltage ratings of 1000 volts, making it suitable for various low voltage electronic and industrial automation systems.
This jumper's compact dimension of length 4.6 mm, width and depth both at 2.44 mm, combined with a maximum contact resistance of 30 milliohms, ensures minimal signal loss and superior performance in demanding operational environments. Its black color coding facilitates easy identification during assembly or maintenance.
This product is specifically crafted for applications in electronics manufacturing, industrial automation systems, and PCB component configurations. Its straight connector orientation allows for easy insertion and removal, while the open top design provides convenient access for testing and modification.
Manufactured in China with adherence to quality norms, ASSMANN WSW jumpers enable enhanced production efficiency and reliability. The product is commonly used in electronic assemblies, power connectors, wire housings, and other precision connector applications in both commercial and industrial settings.
Two-way, one row, 2.54 mm pitch jumper for PCB applications. Durable polybutylene terephthalate housing with black finish. Brass contact material with tin plating for corrosion resistance. Rated for 3 A current and 1000 V voltage operation.
Compact dimensions enable efficient PCB space utilization. Low maximum contact resistance ensures signal integrity. Straight female open top design for ease of use. Ideal for industrial, electronics, and manufacturing systems.
This jumper is listed under the Electronics & Electricals category, specifically within Connectors and Jumpers & Shunts for PCB applications. For further selection, browse EnvMart's extensive catalog of electronic components and connectors to find complementary parts enhanced for durability and performance.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This jumper supports a current rating of 3 A, making it suitable for various low voltage applications.
The voltage rating for this model is up to 1000 V, allowing for use in high-voltage applications.
It has compact dimensions of 4.6 mm in length, and both width and depth are 2.44 mm, facilitating efficient PCB layout.
The housing is constructed from polybutylene terephthalate, which provides good electrical insulation and mechanical strength.
The maximum contact resistance is rated at 30 mΩ, ensuring stable signal transmission.
This model features 2 contacts arranged in a single row configuration.
It has a straight female connector orientation, suitable for low profile PCB mounting.
The pitch size is 2.54 mm, which is ideal for dense circuit board layouts.
The contacts are made of brass and plated with tin, which enhances conductivity and corrosion resistance.
This jumper is manufactured in China, adhering to quality norms.
It is designed for use in electronics manufacturing, industrial automation systems, and PCB component configurations.
The housing is black, which aids in easy identification and provides a professional appearance.
