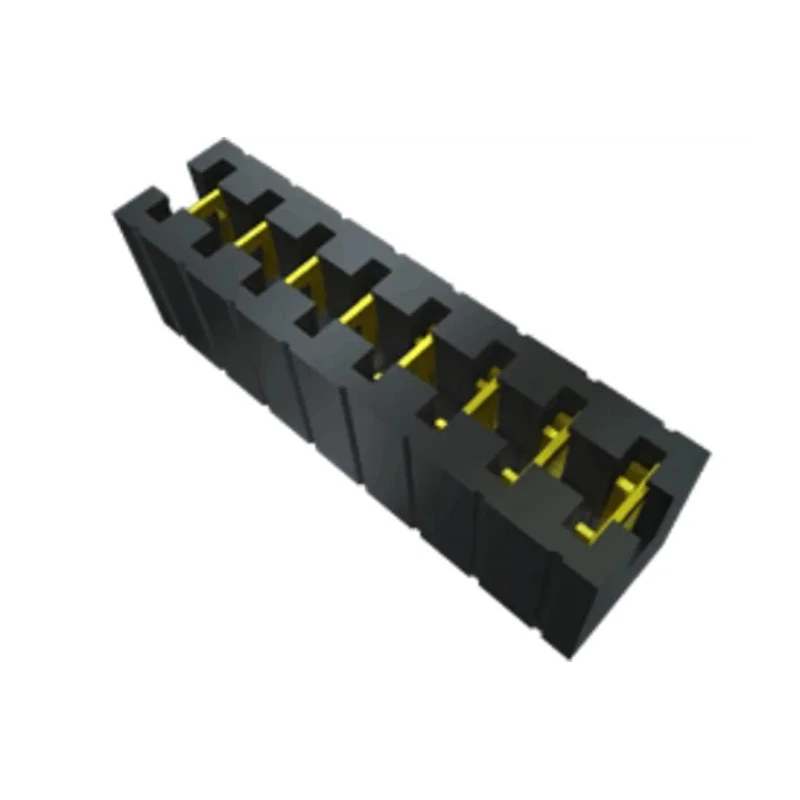

Samtec Multi Position Shunt, Straight Female Connector, 5 Contacts, 2.54mm Pitch, 3.9A, 450V, Glass Filled MNT-105-BK-G

Samtec MNT-105-BK-G is a high-quality multi position shunt designed for PCB applications requiring reliable and precise electrical connections. This straight female connector provides 5 contacts with a standard 2.54mm pitch, common in electronic component placements on printed circuit boards.

The housing is constructed from glass filled polyester, offering robustness and excellent insulation, with a black finish for clear identification. The phosphor bronze contacts with gold plating ensure excellent conductivity and corrosion resistance, critical for maintaining stable electrical connections in industrial, laboratory, and manufacturing environments.

Rated for a current of 3.9 amperes and a voltage up to 450 volts, this shunt connector supports varied power requirements while maintaining low contact resistance. Its dimensions of 10.16mm length, 2.54mm width, and 6.1mm depth allow easy board integration without compromising space.

The single-row design supports positioning flexibility with options from 4 to 40 contacts, facilitating customization for diverse electronic configurations. The straight orientation aids in compact and straightforward wiring setups on PCBs.

This shunt is ideal for applications in electronics manufacturing, industrial automation systems, and other electrical assembly processes where dependable connector systems are essential. It meets common standards of electronic component quality and reliability despite having no specific approvals listed.

Features 5 female contacts arranged in a single row. Supports a current rating of 3.9 amperes and voltage rating of 450 volts. Constructed with glass filled polyester for durable black housing. Contacts made of phosphor bronze with gold plating ensure low contact resistance.

Measures 10.16mm length, 6.1mm depth, and 2.54mm width for precise PCB fit. Designed with a straight orientation and .100 inch (2.54mm) pitch between contacts. Positions adjustable from 4 to 40 for varied connection requirements.
