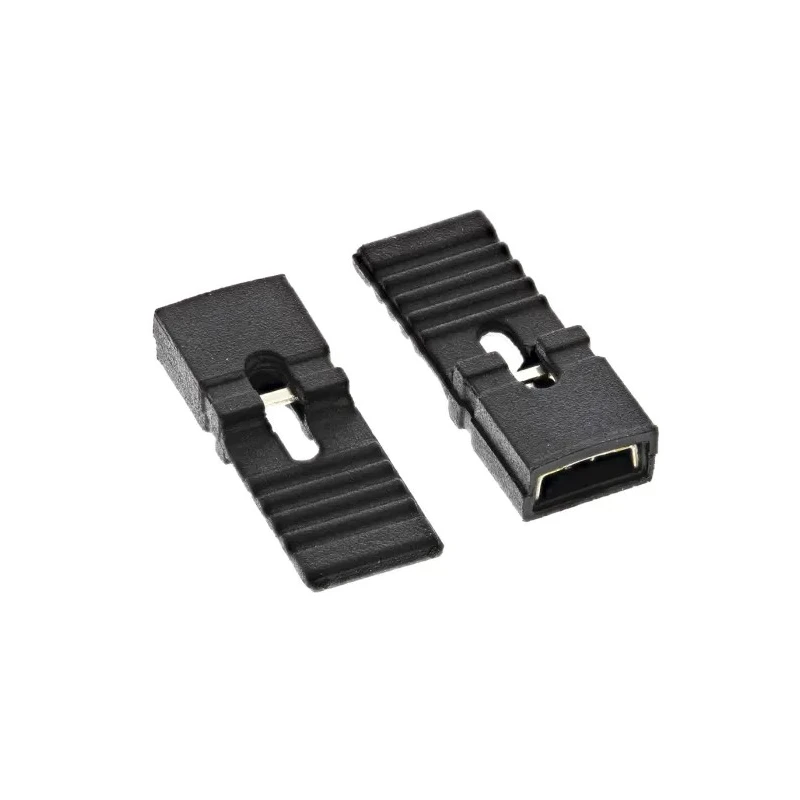

ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch AKSPLTG BLACK

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch AKSPLTG BLACK

Name: ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch AKSPLTG BLACK
Brand: ASSMANN WSW
SKU: 208455
Price: 0.11 USD
Availability: InStock



Category Jumpers & Shunts Brand ASSMANN WSW Condition New

Specifications

Country of Origin	India
Voltage	1000V
Brand	ASSMANN WSW
Colour	Black
Orientation	Straight
Current	3A
Length	13.5mm
Model	AKSPLTG BLACK
Depth	2.54mm
Width	2.44mm
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Sub Type	Closed Top
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	30mΩ

Key Features

Features a black glass-filled Polybutylene Terephthalate (PBT) housing offering durability.
Includes 2 female brass contacts plated in gold for superior conductivity.
Operates safely up to 1000V voltage and carries a current rating of 3A.
Compact dimensions measure 13.5 mm length, 2.44 mm width, and 2.54 mm depth.
Designed with a straight orientation to ensure seamless PCB connection integration.
Maximum contact resistance is low at 30 milliohms, ensuring efficient electrical performance.
Ideal for electronic components, power connectors, and PCB wiring applications in industrial and laboratory settings.

Product Description

ASSMANN WSW AKSPLTG BLACK jumper is a 2-way, 1-row closed top straight female connector with a precise 2.54 mm pitch. It features a robust black glass-filled Polybutylene Terephthalate (PBT) housing that meets UL94V-0 standards for flammability resistance.

The connector contains brass female contacts plated with gold, enhancing electrical conductivity and resistance to corrosion. Designed to safely support voltages up to 1000 V and currents up to 3 A, it is suitable for demanding electronic and power connector applications.

This jumper’s compact size of 13.5 mm length, 2.44 mm width, and 2.54 mm depth allows for ease of installation and compatibility with standard PCBs. The straight orientation ensures efficient PCB layout and wiring continuity.

Electrical performance is optimized with a maximum contact resistance of 30 mΩ, making it reliable for high-precision electronics and industrial automation components. Its closed top design provides additional protection to contacts from external debris or damage.

Commonly used in electronic components, power connectors, and PCB wiring harness assemblies within industrial, manufacturing, laboratory, and electronic device environments. Features a black glass-filled Polybutylene Terephthalate (PBT) housing offering durability.

Includes 2 female brass contacts plated in gold for superior conductivity. Operates safely up to 1000V voltage and carries a current rating of 3A. Compact dimensions measure 13.5 mm length, 2.44 mm width, and 2.54 mm depth.

Designed with a straight orientation to ensure seamless PCB connection integration. Maximum contact resistance is low at 30 milliohms, ensuring efficient electrical performance. Ideal for electronic components, power connectors, and PCB wiring applications in industrial and laboratory settings.

Explore a comprehensive range of jumpers and connectors within the Electronics & Electricals category on EnvMart for applications requiring reliable and high-quality PCB interconnect solutions.
