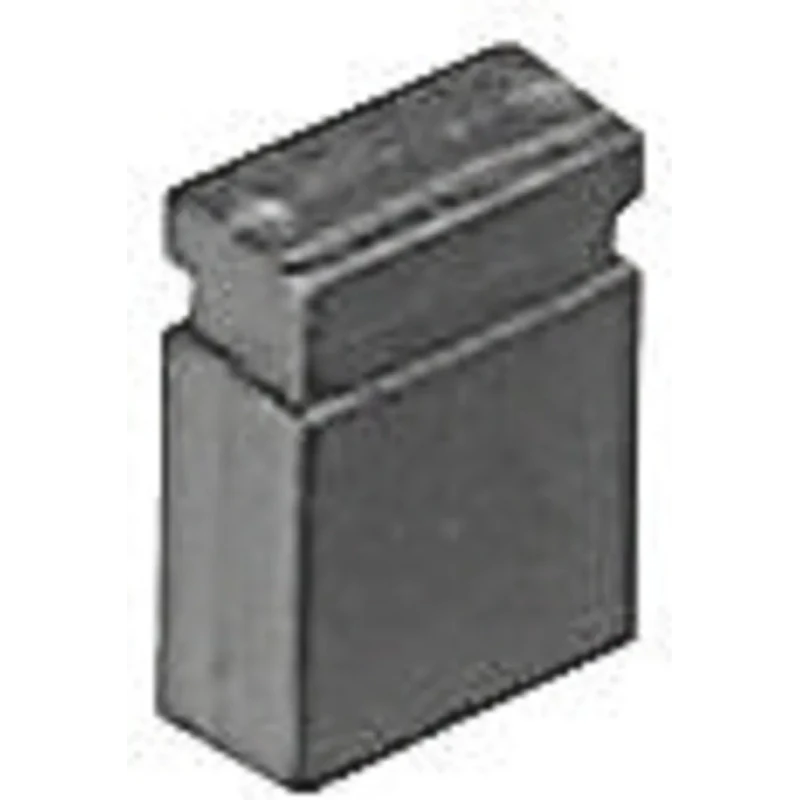

ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2 mm Pitch AKSG-200/G

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2 mm Pitch AKSG-200/G

Name: ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2 mm Pitch AKSG-200/G
Brand: ASSMANN WSW
SKU: 208454
Price: 0.12 USD
Availability: InStock



Category Jumpers & Shunts Brand ASSMANN WSW Condition New

Specifications

Country of Origin	Taiwan
Voltage	1000V
Brand	ASSMANN WSW
Colour	Black
Orientation	Straight
Current	3A
Length	5mm
Model	AKSG-200/G
Depth	2mm
Width	2mm
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Sub Type	Closed Top
Number of Rows	1
Pitch	2mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	30mΩ

Key Features

The jumper features a closed top design to secure connections effectively.
Constructed with polybutylene terephthalate housing for durability and insulation.
Brass contact material plated with gold ensures low contact resistance and corrosion resistance.
Supports a current rating of 3A and voltage rating up to 1000V.
The 2 mm pitch and 5 mm length make it compact and suitable for precise PCB layouts.
Designed with a female connector gender and straight orientation for easy insertion.
Maximum contact resistance is 30 milliohms for dependable electrical performance.
Black color coding facilitates easy identification on PCB modules.

Product Description

ASSMANN WSW AKSG-200/G Jumper Straight Female Black Closed Top 2 Way 1 Row 2 mm Pitch is a precision-engineered electronic component designed to provide secure shorting connections on printed circuit boards. Its compact 2 mm pitch spacing and 5 mm length allow integration in dense electronic layouts.

The jumper features a closed top housing made of polybutylene terephthalate, offering robust mechanical strength and heat resistance for reliable operation in various industrial and laboratory environments. The brass contacts plated with gold ensure minimal contact resistance, enhancing signal integrity and electrical performance.

This jumper supports a current load of up to 3 amperes and withstands voltages up to 1000V, making it suitable for a wide range of PCB connector applications in electronics manufacturing, industrial automation systems, power distribution, and control equipment.

The female connector with a straight orientation facilitates straightforward insertion and removal during assembly or testing procedures. Its maximum contact resistance is rated at 30 milliohms, ensuring consistent conductivity and minimizing power loss.

The jumper features a closed top design to secure connections effectively. Constructed with polybutylene terephthalate housing for durability and insulation. Brass contact material plated with gold ensures low contact resistance and corrosion resistance.

Supports a current rating of 3A and voltage rating up to 1000V. Compact 2 mm pitch and 5 mm length for precise PCB layout fitting. Female connector gender and straight orientation for easy insertion. Maximum contact resistance of 30 milliohms for reliable electrical performance.

Black color for clear identification on PCBs. Manufactured in Taiwan, Province Of China, meeting quality standards.

This product finds application in electronic component assembly lines, manufacturing of power distribution systems, industrial control systems, and laboratory equipment requiring reliable jumper connections. The jumper's closed top and gold-plated contacts increase durability and longevity in demanding environments.

EnvMart offers this component for engineers and assembly technicians seeking high-quality jumpers for their PCB designs and maintenance operations.
