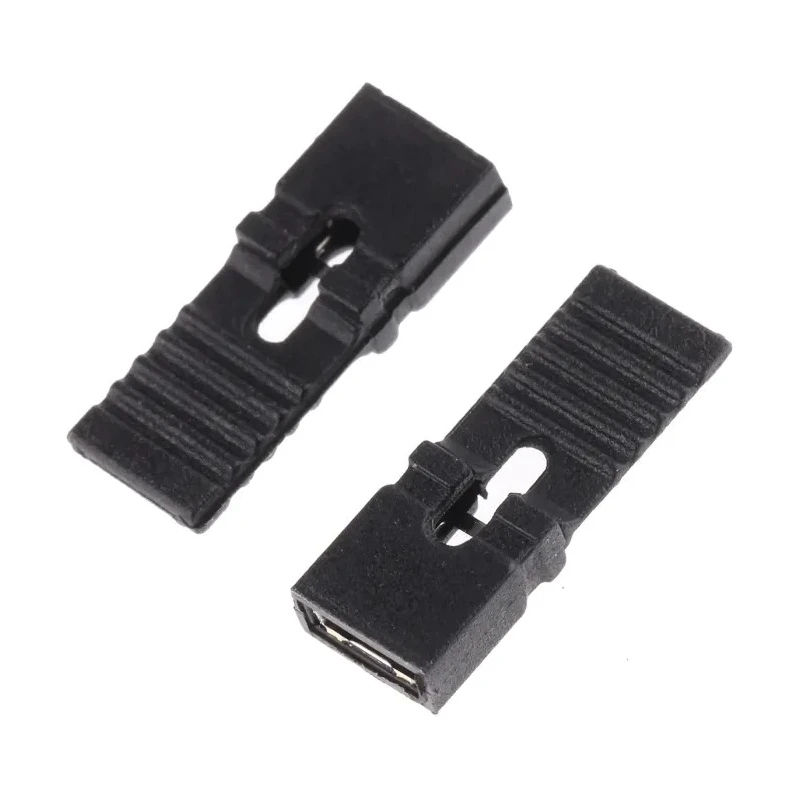

ASSMANN WSW Jumper Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch AKSPLTZ BLACK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | ASSMANN WSW |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 13.5mm |
| Model | AKSPLTZ BLACK |
| Depth | 2.54mm |
| Width | 2.44mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 30mΩ |
Key Features
- The jumper has a pitch of 2.54 mm suitable for precise PCB connections.
- Constructed of polybutylene terephthalate housing, providing durability and high resistance.
- Features brass female contacts with tin plating, ensuring reliable conductivity.
- Rated for a maximum current of 3 A and voltage up to 1000 V.
- Compact dimensions include length 13.5 mm, width 2.44 mm, and depth 2.54 mm.
- Designed with a closed top housing in black color, suitable for industrial electronic applications.
- The orientation is straight, supporting easy insertion in PCB connectors.
- Maximum contact resistance is 30 milliohms, guaranteeing stable electrical performance.
Product Description
ASSMANN WSW AKSPLTZ BLACK jumper is a straight female closed top shorting link designed for use in electronic components and PCB connectors featuring a 2.54 mm pitch.
This jumper has a polybutylene terephthalate housing that offers excellent durability and chemical resistance in various environments. The black color allows easy identification and integration in diverse PCB assemblies.
The jumper contains 2 female brass contacts plated with tin to ensure good electrical conduction and corrosion resistance. The product is rated for a current capacity of 3 A and can handle voltages up to 1000 V, making it suitable for low to medium power electronic circuits.
Physical dimensions of the jumper are compact with a length of 13.5 mm, width of 2.44 mm, and depth of 2.54 mm, supporting high-density PCB layouts. The closed top design prevents accidental short circuits and provides secure contact retention. The orientation is straight to fit standard PCB connector layouts.
It has a maximum contact resistance of 30 milliohms, ensuring reliable signal integrity and low power loss in electrical connections. This jumper is manufactured in China and meets the quality expectations associated with the ASSMANN WSW brand.
The jumper pitch measures 2.54 mm for precise positioning. Housing material is polybutylene terephthalate, enhancing durability. Female contacts are made of brass with tin plating for reliability. Supports current of 3 A and voltage up to 1000 V.
Compact size optimizes PCB space with 13.5 mm length. Black closed top housing improves safety and identification. Straight orientation fits standard PCB connector designs. Maximum contact resistance is 30 mΩ ensuring performance.
Made in China with trusted ASSMANN WSW quality.
This product is ideal for use in industrial automation systems, electronic manufacturing, power distribution panels, and equipment requiring secure jumper connections. It fits PCB connectors where a reliable, closed-top shorting link is required for circuit configuration or testing purposes.
EnvMart's selection of ASSMANN WSW jumpers ensures high-quality and dependable components for professional electronics projects, maintenance, and manufacturing. Explore our broad catalog for compatible connectors and accessories to complete your installations.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This jumper is rated for a maximum current of 3 A and can handle voltages up to 1000 V.
The jumper has a length of 13.5 mm, a width of 2.44 mm, and a depth of 2.54 mm, making it compact for high-density PCB layouts.
The housing is constructed from polybutylene terephthalate, which provides durability and chemical resistance.
It features two female brass contacts that are plated with tin to ensure reliable conductivity and corrosion resistance.
The jumper has a pitch of 2.54 mm, which is suitable for precise PCB connections and ensures compatibility with standard PCB layouts.
The maximum contact resistance is 30 milliohms, which helps ensure stable electrical performance and low power loss.
Yes, it is designed for use in industrial automation systems, electronic manufacturing, and power distribution panels.
This jumper has 1 row and contains 2 female contacts.
This jumper is manufactured in China, adhering to the quality expectations associated with the ASSMANN WSW brand.
It is suitable for applications requiring secure jumper connections for circuit configuration or testing purposes.
