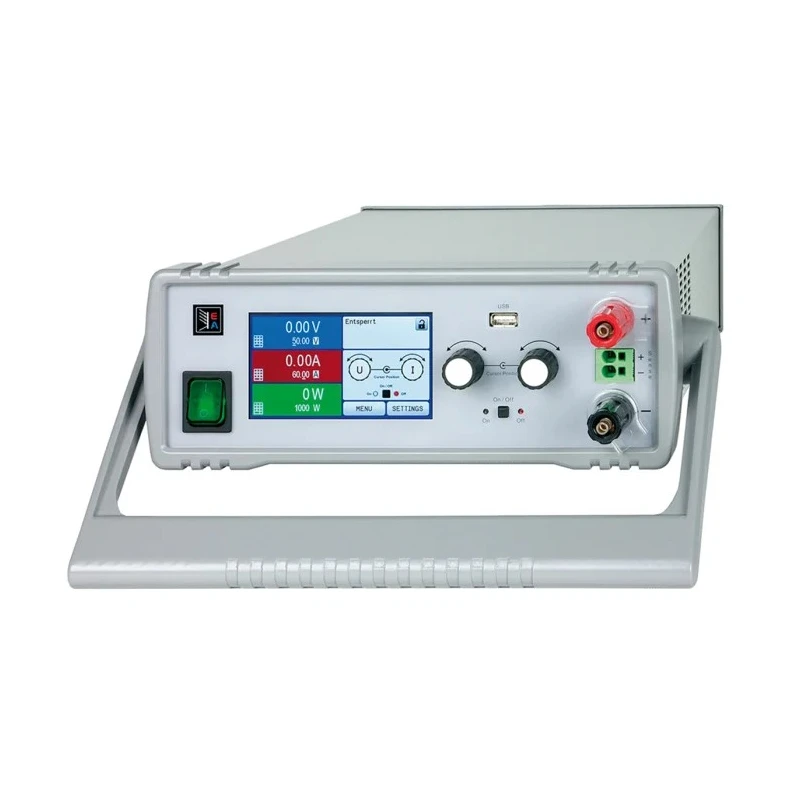

EA Elektro-Automatik Digital Bench Power Supply 1 Output, 0 V to 80 V, 1 kW, 40 A Max EA-PSI 9080-40 DT
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | EA Elektro-Automatik |
| Power | 1kW |
| Efficiency | Up to 93% |
| Model | EA-PSI 9080-40 DT |
| Output type | Digital |
| Maximum Operating Temperature | 50°C |
| Chassis | Top and bottom closed |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC 320 |
| Interfaces | USB Interface |
| Number of outputs | 1 |
| Maximum Output Current | 40A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 80V |
| Maximum Supply Voltage | 264V ac |
| Minimum Supply Voltage | 90V ac |
| Digital/Analogue | Digital |
| Supported Number of Displays | 1 |
| Minimum Output Voltage | 0V |
Key Features
- Provides output voltage from 0 V to 80 V and current up to 40 A.
- Supports power output up to 1 kW for demanding testing environments.
- Features digital display with high-resolution TFT for precise monitoring.
- Includes USB interface and plug-and-play slot for option cards.

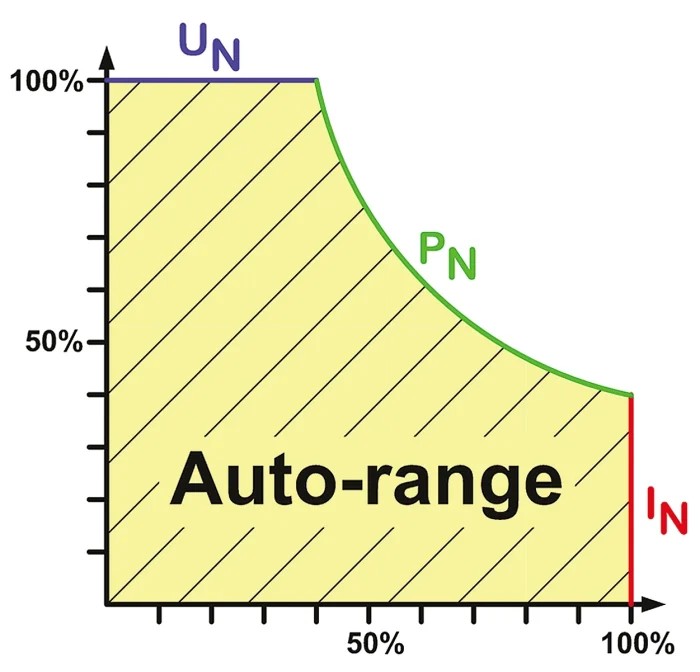

- Designed for flexible auto-ranging operation, allowing higher voltage or current as required.
- Multiple protections against overcurrent, overvoltage, and overtemperature.
- Low noise and high efficiency up to 93%.
- Supports parallel and series operation with true master-slave bus functionality.
Product Description

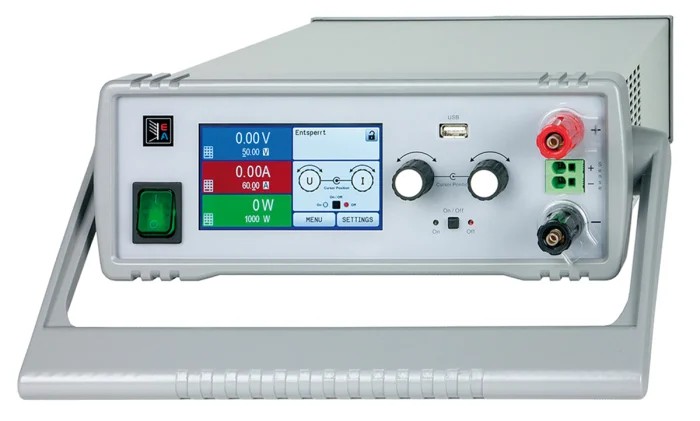

The EA Elektro-Automatik EA-PSI 9080-40 DT is a high-performance digital Bench Power Supply designed for laboratory, industrial, production, and educational uses.
With a single programmable output channel, this unit delivers up to 80 volts and 40 amperes, supporting a maximum power of 1000 watts. The flexible auto-ranging feature enables tailored voltage or current output within the specified ranges, adapting to a variety of test requirements.
It features an FPGA-based controller with USB-programmable interface, and a plug-and-play slot for optional interface cards including CANopen, Ethernet, Profibus, Profinet, Modbus, DeviceNet, RS232, and others. The unit is equipped with a sensitive digital TFT display for easy monitoring and configuration, as well as memory functions for repeatable settings.
Operational stability is ensured with highly stable and low-ripple output, fast dynamic response, and comprehensive protections for overcurrent, DC overvoltage, and overtemperature. Temperature-controlled fans guarantee consistent performance in environments from 0°C to 50°C.
Additional features include low noise operation, adjustable output impedance, isolated analogue interface (0-5 V/0-10 V), true master-slave bus with parallel and series operation, and support for SCPI command language. The chassis is closed at the top and bottom for increased safety in laboratory and workshop settings.
Applications span industrial manufacturing, laboratory research, workshops, production testing, and educational institutions requiring reliable and programmable DC power.
This power supply is supplied with Schuko & UK or Swiss power cords and multilingual manual. Certifications include RoHS, EN 55022 Class B, IEC 320-C14, EN 60950, EN 31326, and EN 61010 for compliance with standards.
Explore more advanced bench power supplies and laboratory-grade solutions from EA Elektro-Automatik at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage range from 0 V to 80 V.
It can deliver a maximum output current of 40 A.
The total power output capacity of this unit is 1 kW.
The operating temperature range for this model is from 0°C to 50°C.
This unit features a USB interface and a plug-and-play slot for optional interface cards including various protocols like CANopen and Modbus.
It operates with an efficiency of up to 93%.
It includes protections against overcurrent, overvoltage, and overtemperature.
It is equipped with a high-resolution TFT digital display for precise monitoring.
The chassis of this model is closed at the top and bottom for increased safety.
Yes, it supports parallel and series operation with true master-slave bus functionality.
It complies with RoHS and several other standards including EN 55022 Class B and EN 61010.
This power supply is suitable for industrial manufacturing, laboratory research, workshops, production testing, and educational institutions.
