Neutrik Panel XLR Connector, Straight Orientation, Female, 6 Contacts, Gold over Nickel Plating, 50V Voltage NCJ9FI-S

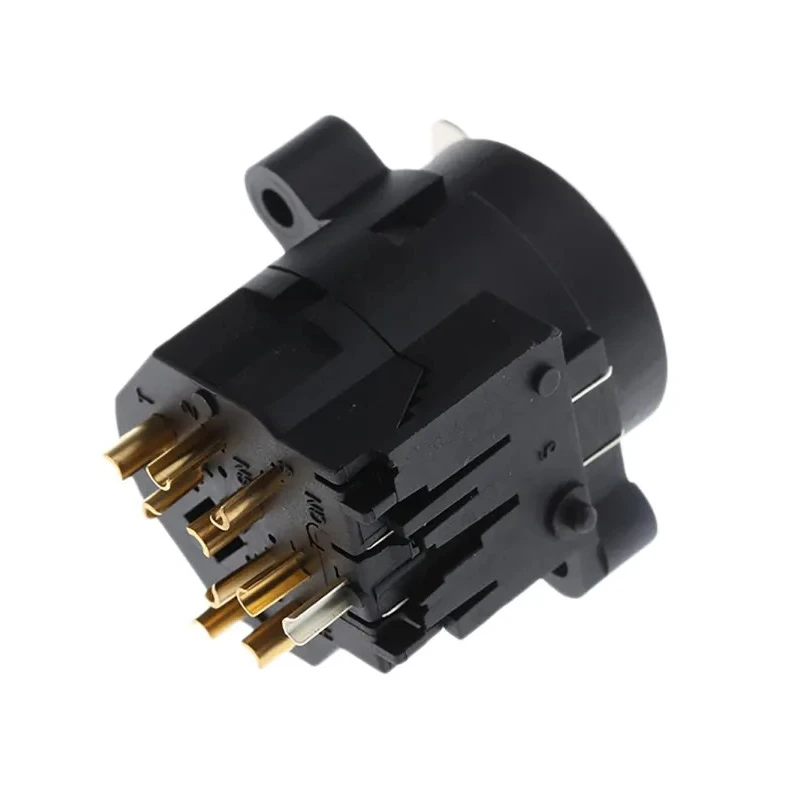

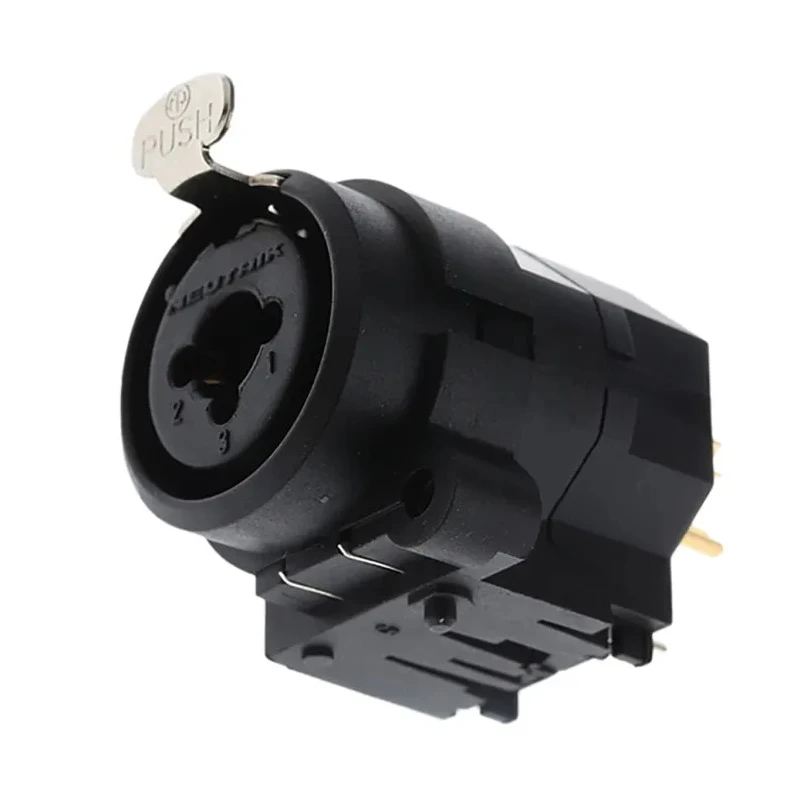

Neutrik NCJ9FI-S Panel XLR Connector is designed for professional electronic and audio applications requiring reliable female connectors with 6 contacts. This panel-mount connector features a straight orientation for seamless integration with audio equipment and industrial devices operating up to 50 volts and 7.5 amps.

The connector housing is made of durable nylon which offers good mechanical strength and electrical insulation. Contacts are plated with gold over nickel, ensuring high conductivity and excellent resistance against corrosion and wear.

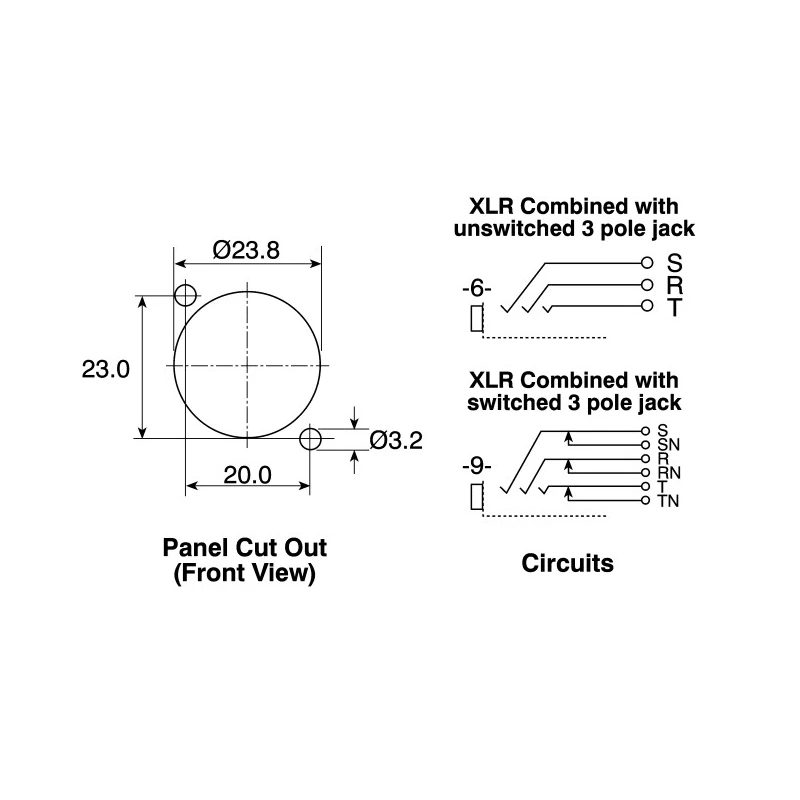

The NCJ9FI-S series supports combined XLR and ¼ inch jack connections within a single XLR shell, providing versatility for connector setups with PCB 6 way straight or right angle pins. The solder termination type guarantees a secure and stable electrical connection.

Operating temperature ranges from 30°C minimum to 80°C maximum, suitable for a broad range of installation environments including industrial, manufacturing, audio engineering, and electronic testing contexts.

Contact material is bronze, chosen for reliable mechanical performance and electrical conduction. Metal brackets with M3 threaded front mounts and snap-in rear locks provide firm mechanical linking between the connector board and chassis. Jack plug retention is via a dedicated spring element isolated from the contacts, ensuring low contact pressure and longevity.

Constructed with rugged nylon housing ensuring durability in industrial environments. Contacts are plated with gold over nickel for excellent conductivity and corrosion resistance. Suitable for panel mounting with solder termination for secure connections.

Operates reliably within temperature range of 30°C to 80°C. Connector design integrates XLR and ¼ inch jack connection in a single shell. Ideal for professional audio, electronic, and industrial connector applications. Contact material made from bronze providing mechanical strength and electrical performance.

Metal brackets with M3 threads and snap-lock mechanisms ensure secure chassis attachment. Not suitable for mains power connections; use only within specified voltage limits.

This product is essential for systems requiring robust, reliable connectors with excellent electrical and mechanical properties, including industrial automation, audio systems, broadcast equipment, and laboratory instrumentation.
