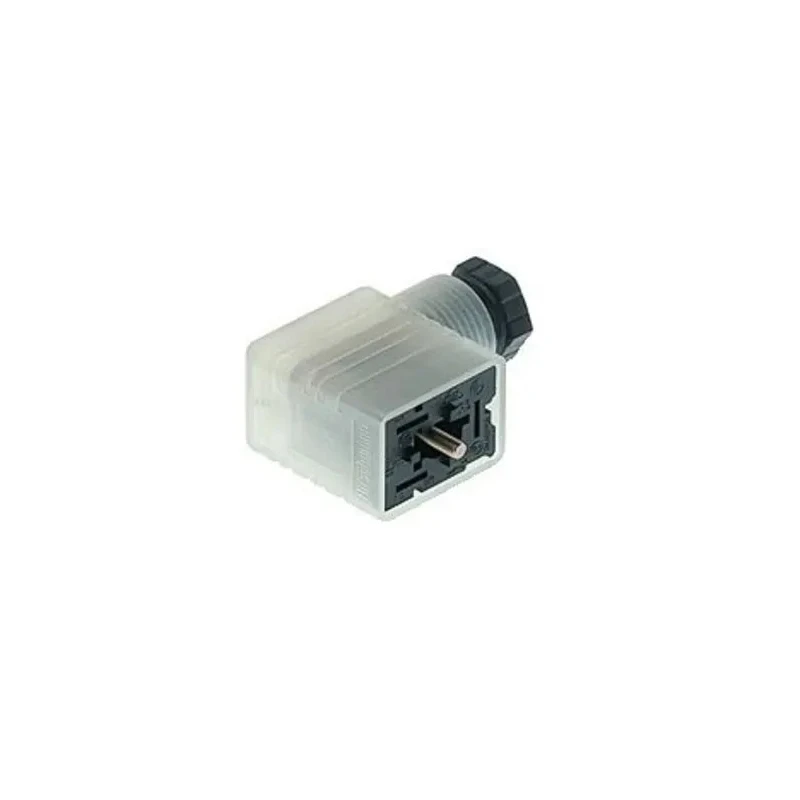

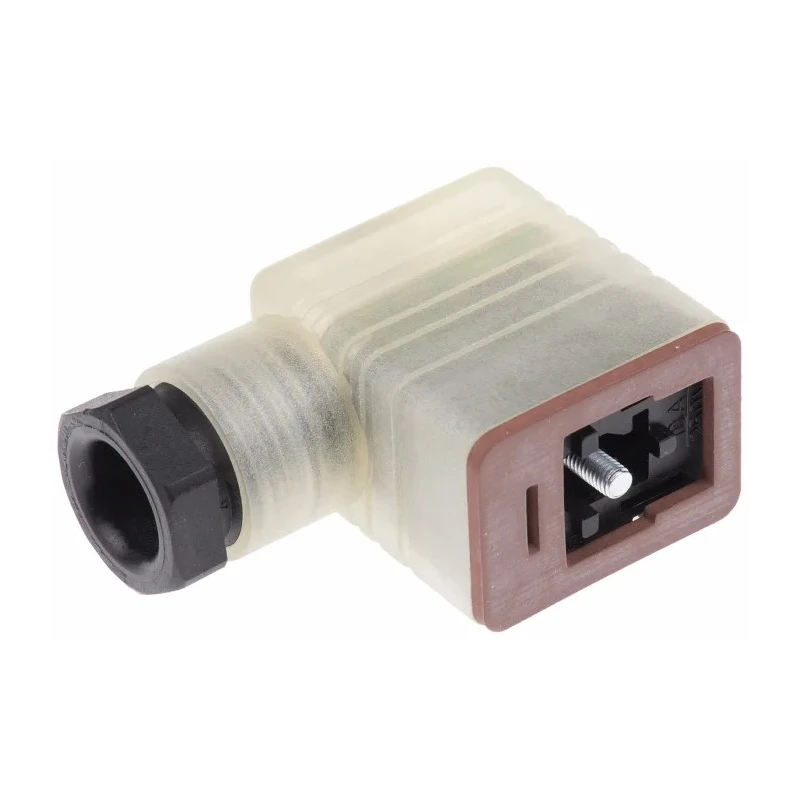

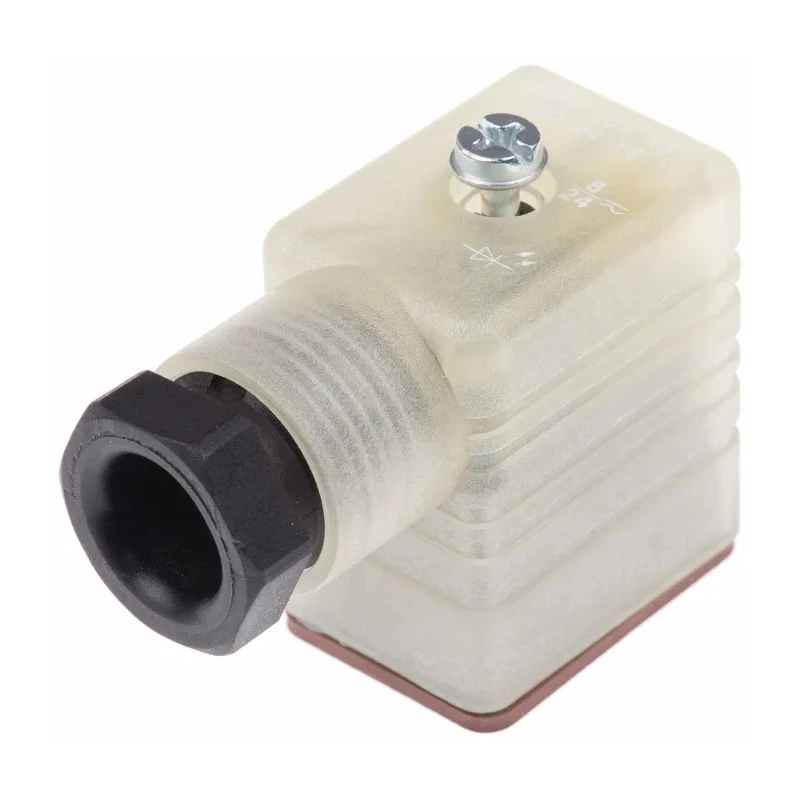

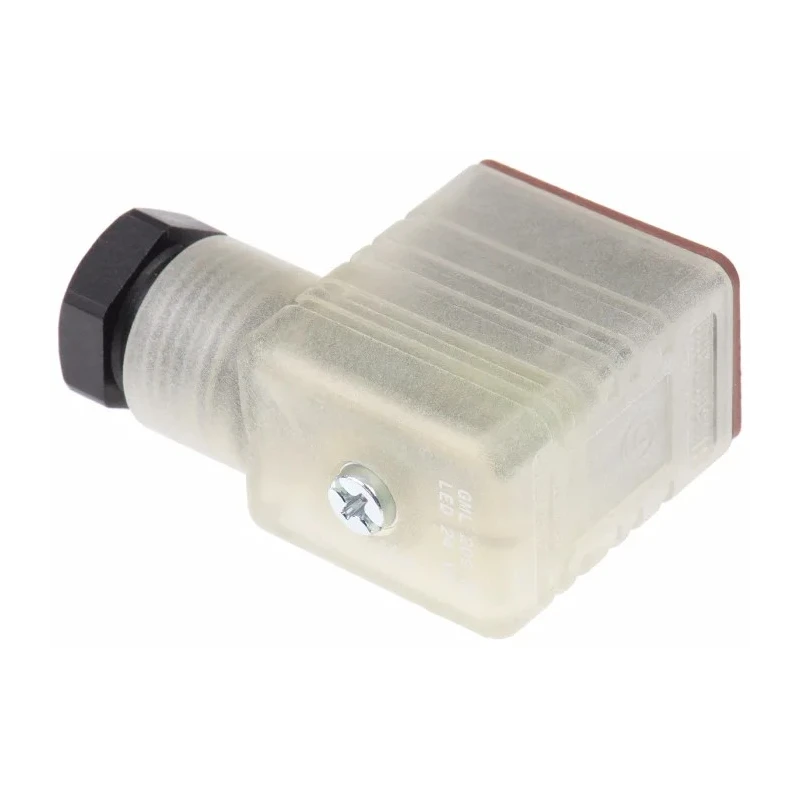

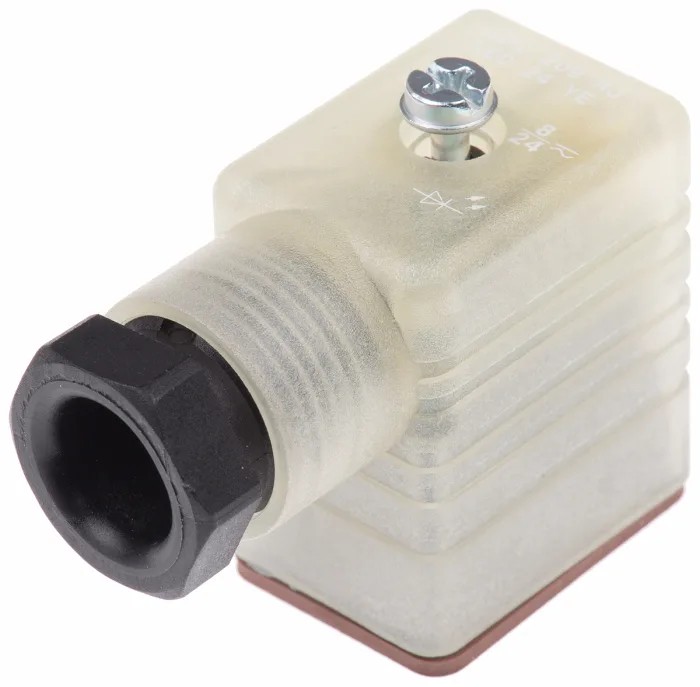

Hirschmann GML 2P+E DIN 43650 B Solenoid Valve Connector Indicator Light, 24V Voltage 933571100 GML 209 NJ LED 24 YE black

Hirschmann 933571100 GML 209 NJ LED 24 YE black Solenoid Valve Connector is designed to provide a reliable connection for solenoid valves in various industrial applications. It operates at 24V voltage with an 8A current capacity, making it suitable for demanding electrical environments.

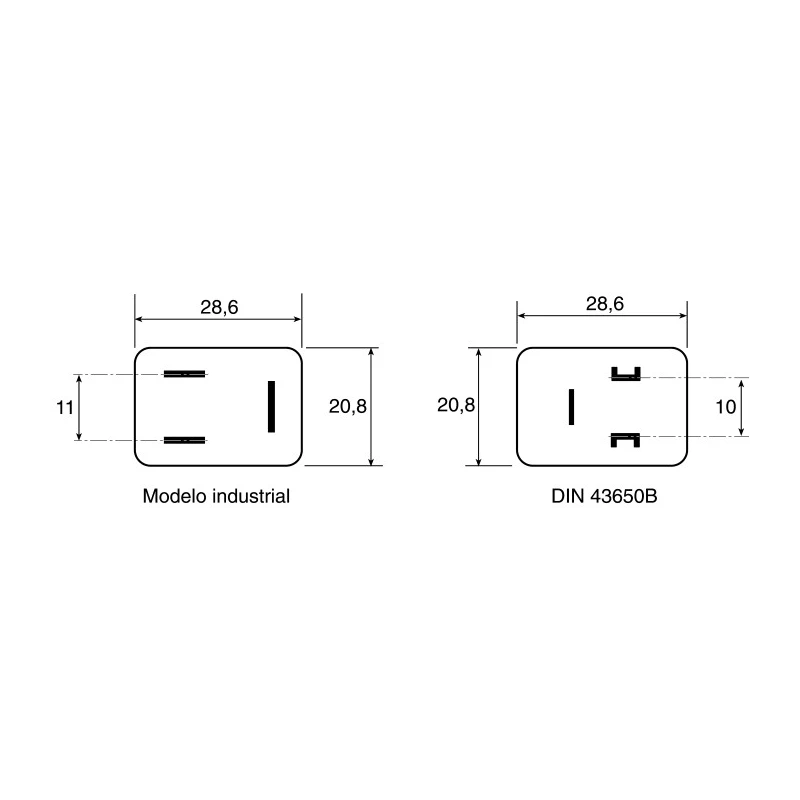

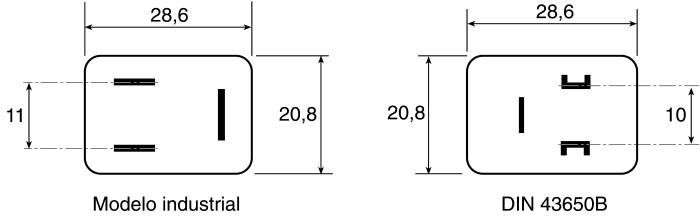

The connector features a 2P+E pole format that complies with the DIN 43650 B standard, ensuring compatibility with a wide range of solenoid valve hardware. Its housing is made from PA-GF which offers excellent impact resistance and durability. It is rated IP65, protecting against dust ingress and low-pressure water jets, which is crucial for outdoor or harsh industrial settings.

Installation is convenient and secure with a screw mount type and PG9 cable gland size, accommodating cable diameters ranging from 4.5 to 7 mm. The connector’s termination is screw type, providing firm and long-lasting electrical contact. Additionally, the built-in protective circuit and earth conductor contribute to enhanced operational safety.

A yellow LED indicator light is integrated for visual feedback, signaling machine status clearly to operators. This feature enhances system monitoring and troubleshooting efficiency.

The connector's temperature tolerance ranges from -25°C to +80°C, making it reliable for use in cold storage units, refrigeration, agricultural machinery, pumping stations, and pressure sensor installations. Its angled shape aids in secure placement even in compact systems.

Set includes a single Hirschmann GML 2P+E DIN 43650 B Solenoid Valve Connector with indicator light and 24V voltage specification. Equipped with a 2P+E pole format for secure electrical connections. Complies with DIN 43650 B standard ensuring universal compatibility.

Supports a current rating of 8A with a cable diameter range of 4.5 to 7 mm. Construction includes a translucent PA-GF housing with an IP65 rating for dust and water jet protection. Mounts securely via screw type with PG9 cable gland size and screw termination.

Integrated protective circuit and built-in earth conductor enhance safety. Yellow LED indicator light provides clear machine status feedback. Operating temperature range from -25°C to +80°C suitable for industrial environments.

Applicable for use in pressure sensors, pumping stations, refrigeration units, and agricultural equipment. For advanced industrial power connector requirements, explore more Hirschmann products and related power connectors on EnvMart.
