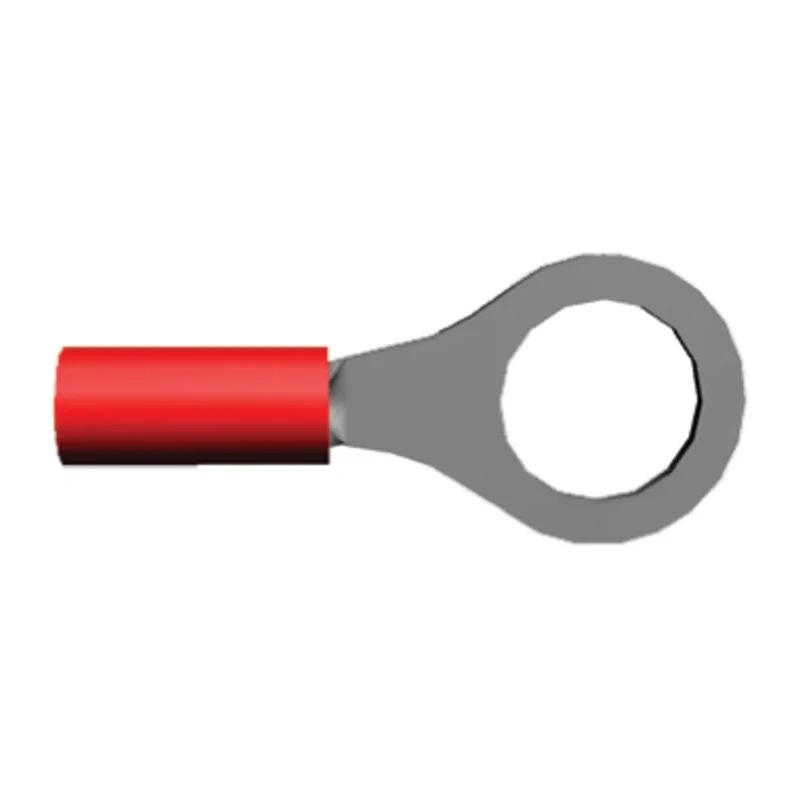

TE Connectivity PIDG Insulated Ring Terminal M10 Stud Size Red 22 AWG to 16 AWG 105°C Nylon Sleeve 320573

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M10 Stud Size Red 22 AWG to 16 AWG 105°C Nylon Sleeve 320573

Name: TE Connectivity PIDG Insulated Ring Terminal M10 Stud Size Red 22 AWG to 16 AWG 105°C Nylon Sleeve 320573
Brand: TE Connectivity
SKU: 205561
Price: 0.89 USD
Availability: InStock



Category Wire Terminals & Splices Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Red
THICKNESS	0.79mm
Model	320573
Insulation	Insulated
Overall Length	30.94mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	0.26mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	13.49mm
Inner Ring Diameter	9.91mm
Stud Size	M10

Key Features

Constructed with high conductivity copper for excellent electrical performance.
Equipped with a nylon insulated red sleeve for easy wire size identification and insulation.
The ring terminal features serrations in the barrel for enhanced contact and tensile strength.
Outer ring diameter measures 13.49 mm ensuring compatibility with M10 studs.
Designed to withstand a maximum operating temperature of 105°C, suitable for demanding applications.
Provides uniform and reliable crimps with funnelled wire entry for efficient wire insertion.
Meets RoHS standards compliant with environmental safety requirements.
Ideal for use in transportation, aerospace, motors, lighting, panel boxes, and control instruments.

Product Description

TE Connectivity 320573 PIDG Insulated Ring Terminal offers a high-performance electrical connection solution with an M10 stud size, compatible for wire sizes ranging from 22 AWG to 16 AWG. Featuring a red nylon insulation sleeve, this ring terminal facilitates easy wire size identification and superior insulation protection.

The terminal is constructed from high conductivity copper with a tin-plated contact surface to deliver excellent electrical conductivity and corrosion resistance. Serrations inside the wire barrel ensure maximum tensile strength and secure crimps, while the copper sleeve enhances wire insulation support and prevents fraying.

With an outer ring diameter of 13.49 mm and inner diameter of 9.91 mm, this terminal assures precise fit for M10 studs. The overall length is 30.94 mm, and thickness is 0.79 mm, making it compact and suitable for a wide range of electrical assemblies.

Designed to operate safely up to 105°C, the terminal adheres to RoHS standards for environmental compliance. Its color-coded sleeve simplifies wire identification during assembly, improving production speed and reducing errors.

This PIDG ring terminal suits diverse industrial and commercial applications such as control instruments, lighting systems, power supplies, panel boxes, motor connections, aerospace equipment, transportation assemblies, and appliance wiring.

High conductivity copper body for optimal electrical performance. Copper sleeve provides additional insulation and prevents wire fraying. Serrations in barrel ensure strong and reliable wire crimps. Color-coded red nylon sleeve for quick wire gauge identification.

Funnelled wire entry allows fast and consistent wire insertion. RoHS compliant, meeting environmental and safety standards. Suitable for harsh and demanding industrial environments. Compatible with 22 AWG to 16 AWG wire sizes and M10 stud components.
