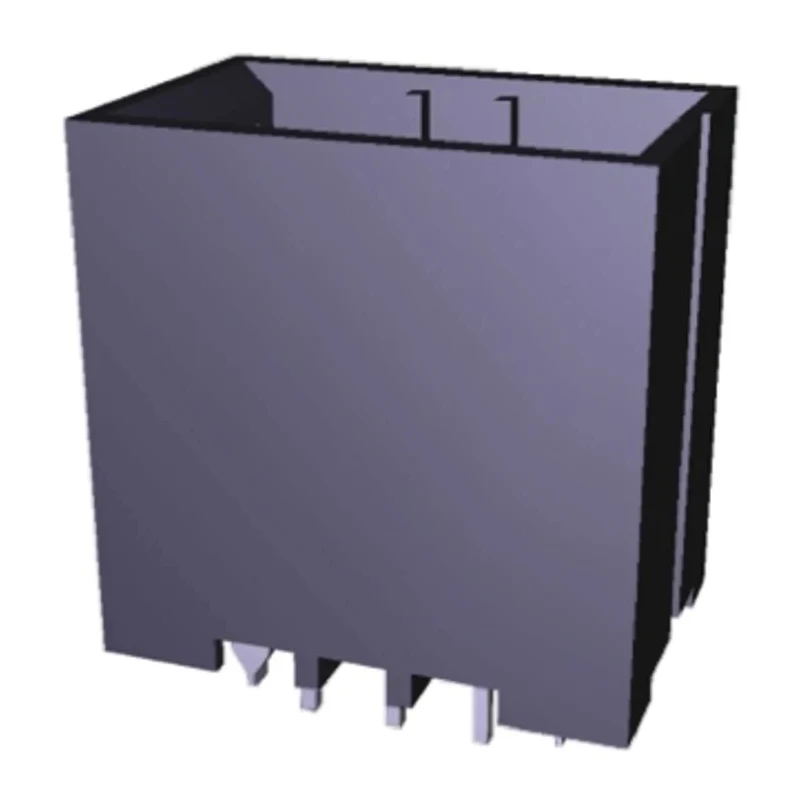

TE Connectivity Dynamic 3000 Series Straight Through Hole Shrouded PCB Header 6 Contacts 3.81 mm Pitch 1 Row 2-178316-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 10A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5792PBrand: TE ConnectivityManufacturers Part No.: 2-178316-2 |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with glass filled polyester housing for durability.
- Supports up to 10A current with 250V voltage rating.
- Copper alloy contacts plated with gold ensure excellent conductivity.
- Designed for through-hole mounting with straight orientation.
- Operates reliably from -55°C to 105°C temperature range.
- Features shrouded male contacts for added protection.
- Termination type is solder for secure PCB attachment.
- Compatible with D-3100 Series connectors and recommended PCB thickness 1.0 to 1.6 mm.
Product Description
TE Connectivity 2-178316-2 Dynamic 3000 Series Straight Through Hole PCB Header is a robust electronic component designed for wire-to-board applications. This header features 6 male contacts in a single row with a pitch of 3.81 mm, enabling stable and secure electrical connections in PCB assemblies. It incorporates a glass filled polyester housing that enhances mechanical strength and durability for industrial-grade use.
Rated for a current of 10A and voltage up to 250V, this PCB header is suitable for demanding electrical environments including industrial controls, power distribution, and electronic devices. The copper alloy contacts are gold plated to provide superior corrosion resistance and conductivity. The shrouded design ensures protection against accidental contact and enhances connector stability during mating.
The header employs a solder termination style for through-hole mounting, compatible with printed circuit boards ranging from 1.0 to 1.6 mm thickness. Operating reliably across a wide temperature range of -55°C to 105°C, it is fit for use in harsh environmental conditions common in manufacturing, automation, and communications equipment.
The TE Connectivity D-3100 Series is widely recognized for its stability and performance. The tin-plated retention leg improves mechanical retention on the PCB while the gold-plated contact tabs ensure consistent electrical interface. This component is engineered for seamless integration in electronic assemblies requiring high quality and durability.
Constructed with glass filled polyester housing for durability. Supports up to 10A current with 250V voltage rating. Copper alloy contacts plated with gold ensure excellent conductivity. Designed for through-hole mounting with straight orientation.
Operates reliably from -55°C to 105°C temperature range. Features shrouded male contacts for added protection. Termination type is solder for secure PCB attachment. Compatible with D-3100 Series connectors and recommended PCB thickness 1.0 to 1.6 mm.
This TE Connectivity PCB Header is ideal for electronics manufacturing, industrial automation, power supplies, and telecommunications hardware. Discover a wide range of connectors and electronic components in the EnvMart electronics category to support your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 10A.
It has a voltage rating of up to 250V.
The contacts in this model have a pitch of 3.81 mm.
It employs a solder termination style for secure PCB attachment.
The recommended PCB thickness for this header is between 1.0 to 1.6 mm.
It features a glass filled polyester housing and copper alloy contacts that are gold plated.
It operates reliably from -55°C to 105°C.
This model has 6 male contacts arranged in a single row.
Yes, it is compatible with D-3100 Series connectors.
It is designed for through-hole mounting with a straight orientation.
It is suitable for wire-to-board applications in electronics manufacturing, industrial automation, and telecommunications hardware.
The country of origin for this PCB header is China.
