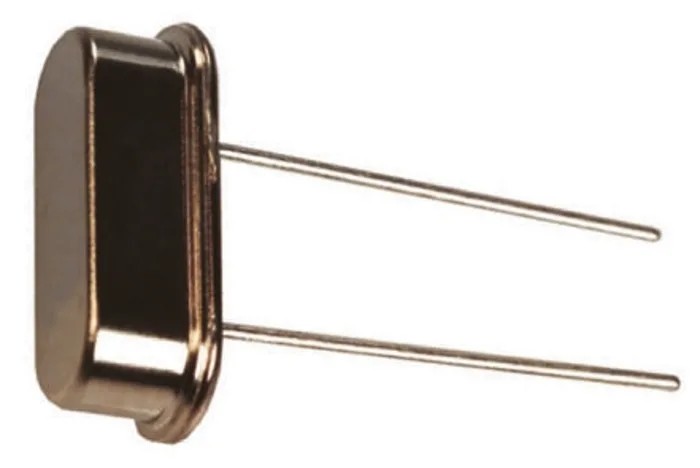

MERCURY Crystal 24 MHz ±30 ppm Through Hole HC-49-US 2-Pin 3.5 mm x 10.7 mm x 4.3 mm HUS-24.000-18-30/50/4085

The MERCURY HUS-24.000-18-30/50/4085 Crystal is a precision electronic component designed for use in oscillator circuits requiring a stable 24 MHz frequency with a tolerance of ±30 ppm. It features a through hole mount type, facilitating easy installation on printed circuit boards (PCBs) with a robust two-pin configuration.

This crystal unit is packaged in the HC-49-US case, which measures 10.7 mm in length, 4.3 mm in width, and 3.5 mm in height, making it ideal for compact electronic devices. The component exhibits a load capacitance of 18 pF and a series resistance of 40 ohms, parameters that contribute to reliable frequency stability and low signal distortion.

The crystal is rated for operation within a temperature range of -40°C to 85°C, making it suitable for use in a variety of industrial, commercial, and consumer electronic applications. It meets RoHS environmental compliance standards, ensuring that it is free from hazardous substances.

Primary uses include precision timing, communication equipment, and embedded system oscillators where accurate frequency control is critical. Its robust design and mounting style make it a preferred choice in manufacturing electronic circuit boards requiring reliable crystal oscillators.

Standard operating frequency of 24 MHz with ±30 ppm tolerance. Through hole mounting type for sturdy PCB integration. Compact HC-49-US package measuring 10.7 mm x 4.3 mm x 3.5 mm. Load capacitance of 18 pF and series resistance of 40 ohms.

Operating temperature range: -40°C to 85°C for durability. Compliant with RoHS standards to meet environmental regulations. Designed for industrial, laboratory, and commercial oscillator applications. Precision frequency control component suitable for communication devices.
