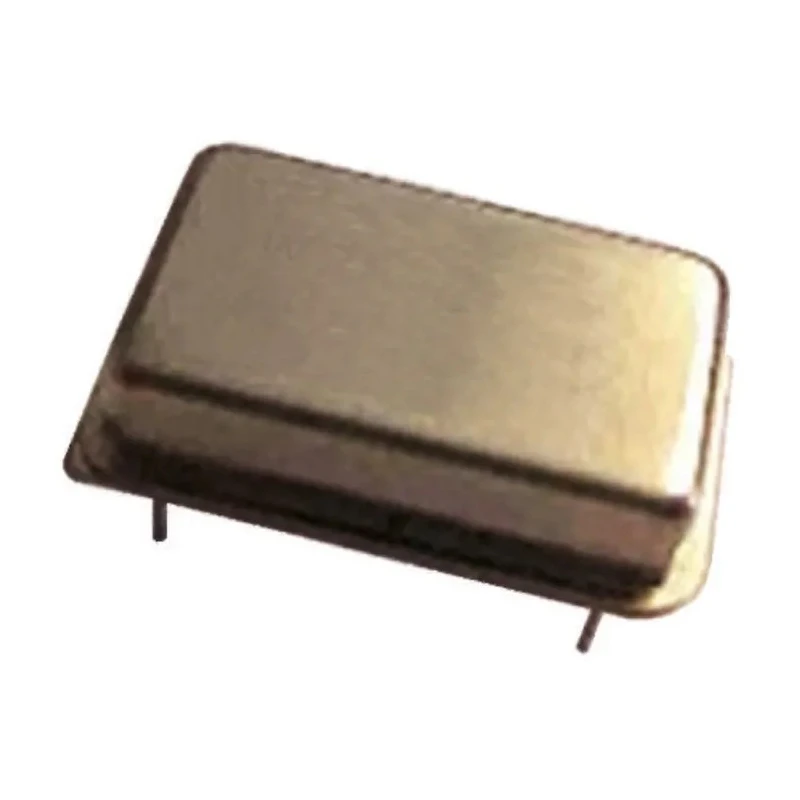

MERCURY 1.8432MHz Clock Oscillator ±50 ppm HCMOS TTL 14-Pin PDIP 5H14ET-1.8432
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Height | 5.08mm |
| Length | 20.2mm |
| Model | 5H14ET-1.8432 |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Series | H14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 1.8432MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Clock |
| Output Level | HCMOS, TTL |
| Crystal oscillator,F1100E-018 1.8432MHzBrand | Fox Electronics |
Key Features
- Oscillator type is clock for timing applications.
- Output frequency is precisely 1.8432 MHz.
- Package type is industry-standard 14-pin PDIP through-hole.
- Operating voltage up to 5 V with HCMOS and TTL compatible output levels.
- Wide operating temperature range from -40°C to 85°C.
- Complies with RoHS environmental standards.
- Robust metal package ensures durability and reliability.
- Ideal for industrial, laboratory, and electronic component assemblies.
Product Description
MERCURY 5H14ET-1.8432 clock oscillator offers a fixed output frequency of 1.8432MHz with a frequency stability of ±50 parts per million. Its HCMOS and TTL output levels make it compatible with a wide range of digital electronic applications.
This oscillator is housed in an industrial-standard 14-pin dual in-line package (PDIP), designed for through-hole mounting on printed circuit boards. Operating voltage is 5 volts, suitable for robust electronic designs requiring precise clock signals.
With an operating temperature range of -40°C to 85°C, this component is well-suited for industrial, laboratory, and manufacturing environments where temperature stability and reliability are critical. Its compact size (20.2 mm x 10.7 mm x 5.08 mm) facilitates easy integration in space-constrained assemblies.
The product complies with RoHS directives, supporting environmentally responsible manufacturing. Designed for industrial and electronic component markets, it ensures timing accuracy for various clocking and synchronization tasks.
Oscillator type is clock for timing applications. Output frequency is precisely 1.8432 MHz. Package type is industry-standard 14-pin PDIP through-hole. Operating voltage up to 5 V with HCMOS and TTL compatible output levels.
Wide operating temperature range from -40°C to 85°C. Compact dimensions: 20.2 mm length, 10.7 mm width, 5.08 mm height. Complies with RoHS environmental standards. Robust metal package ensures durability and reliability.
Ideal for industrial, laboratory, and electronic component assemblies. Manufactured in Taiwan, Province Of China. Explore more precision Oscillators and electronic components at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this clock oscillator is precisely 1.8432 MHz.
This model has compact dimensions of 20.2 mm in length, 10.7 mm in width, and 5.08 mm in height.
The maximum operating voltage for this oscillator is 5 volts.
It supports HCMOS and TTL output levels, making it compatible with a wide range of digital electronic applications.
The operating temperature range for this oscillator is from -40°C to 85°C.
It is housed in an industry-standard 14-pin dual in-line package (PDIP) designed for through-hole mounting.
This oscillator complies with RoHS environmental standards.
It is manufactured in Taiwan, Province Of China.
The pin count for this oscillator is 14 pins.
This model is a clock oscillator intended for timing applications.
It belongs to the H14 series of oscillators.
It is ideal for industrial, laboratory, and electronic component assemblies that require precise timing.
