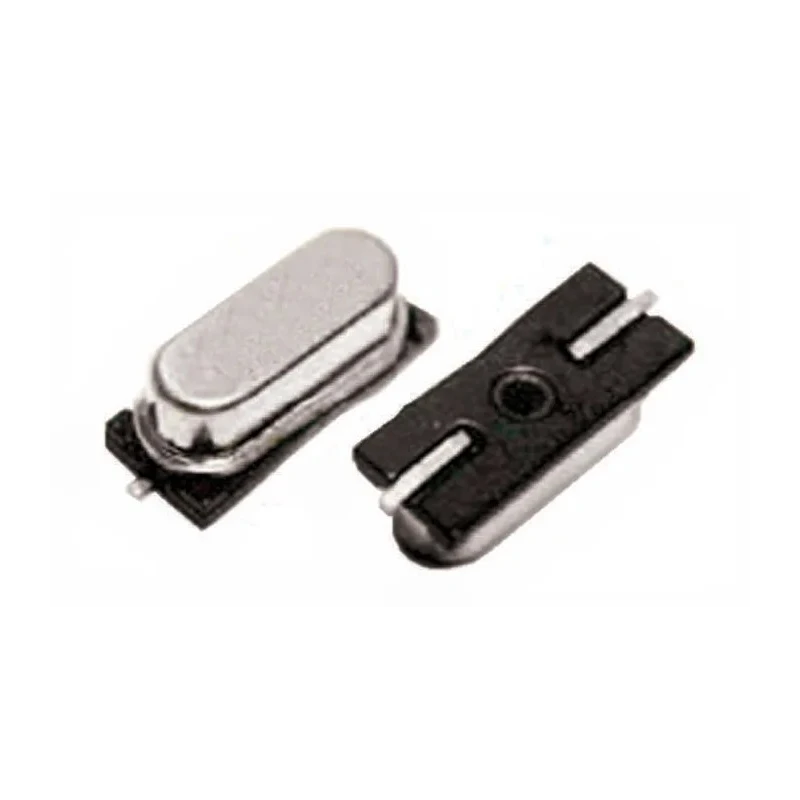

MERCURY 12 MHz Crystal ±30 ppm HC-49 2-Pin Surface Mount 11.2 mm x 4.5 mm x 4 mm M49-12.000-18-30/50/4085
Specifications
| Country of Origin | India |
|---|---|
| Brand | MERCURY |
| Height | 4mm |
| Length | 11.2mm |
| Model | M49-12.000-18-30/50/4085 |
| Packaging | Tape & Reel |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | M-49 |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
| Abracon 12MHz Crystal ±20ppm HC-49-US SMD 2-Pin 11.5 x 4.7 x 4.2mmBrand | Abracon |
Key Features
- Standard operating frequency of 12 MHz ensures compatibility with diverse circuits.
- Surface mount package type HC-49 offers easy PCB assembly and compact footprint.
- Load capacitance rated at 18 pF for optimized frequency response.

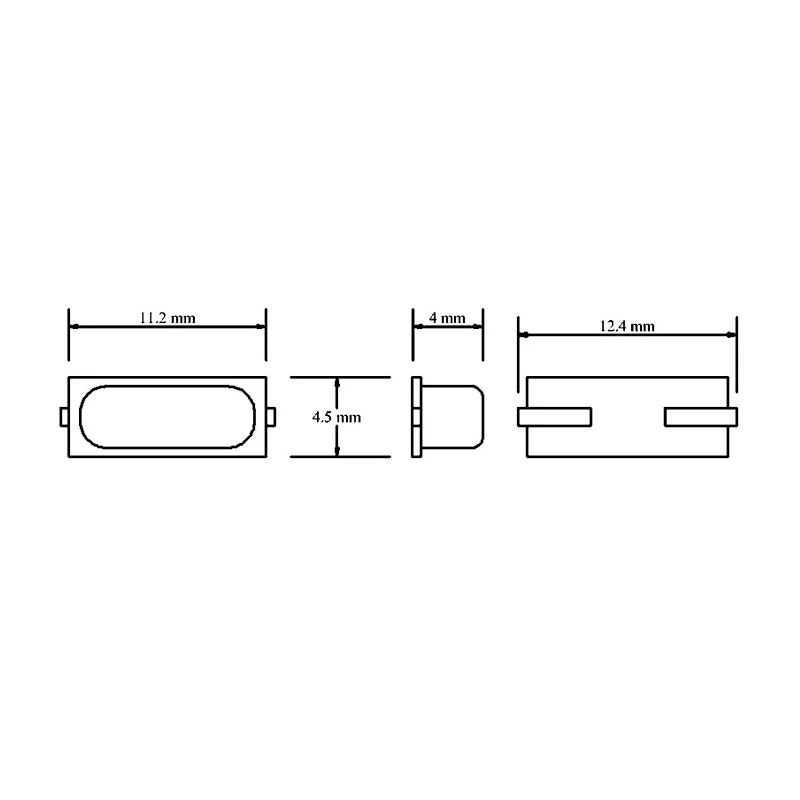

- Constructed with 2 pins and dimensions of 11.2 mm length, 4.5 mm width, and 4 mm height.
- Tape and reel packaging supports high volume automated placement processes.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- Series resistance of 40 Ω reduces signal distortion and enhances performance.
- Complies with RoHS standards ensuring environmentally compliant manufacturing.
Product Description
MERCURY M49-12.000-18-30/50/4085 12 MHz Crystal HC-49 2-Pin Surface Mount, with a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, is designed for reliable performance in a broad range of electronic applications.
This crystal unit operates at a standard frequency of 12 MHz with a load capacitance of 18 pF and features an HC-49 package for easy surface mounting on PCBs. Its compact dimensions of 11.2 mm length, 4.5 mm width, and 4 mm height allow versatile integration into electronic modules.
The device's 2-pin configuration and series resistance of 40 Ω ensure minimal signal loss and optimal frequency accuracy, making it suitable for use in oscillators, timing circuits, and frequency control modules.
Engineered for industrial and commercial electronics, this crystal withstands operating temperatures from -40°C to 85°C, providing robust reliability in harsh environments. It complies with RoHS directives, confirming its environmentally friendly construction.
Packaging in tape and reel supports efficient automated assembly and volume production processes, enhancing manufacturing productivity. Standard frequency of 12 MHz for broad circuit compatibility. Surface mount HC-49 package supports compact PCB designs.
Load capacitance of 18 pF for stable oscillations. Dimensions perfectly suited for electronic assembly needs. Wide operating temperature range ensures durability. RoHS compliant for environmental safety. Low series resistance enhances signal integrity.
Tape and reel packaging suits automated assembly lines. Designed for industrial, commercial, and electronic component applications. Explore EnvMart's Electronics Components category for similar precision crystal units and oscillators designed for advanced electronic design and manufacturing.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard operating frequency of this model is 12 MHz, ensuring compatibility with a variety of circuits.
This unit has dimensions of 11.2 mm in length, 4.5 mm in width, and 4 mm in height, suitable for compact PCB designs.
The load capacitance is rated at 18 pF, which is optimized for stable frequency response.
It features a series resistance of 40 Ω, which helps reduce signal distortion and enhance performance.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial environments.
This model uses an HC-49 package type, which supports easy surface mounting on PCBs.
It is packaged in tape and reel format, which supports high volume automated placement processes.
It complies with RoHS standards, ensuring environmentally compliant manufacturing.
This crystal has a pin count of 2, designed for surface mount applications.
It is suitable for use in oscillators, timing circuits, and frequency control modules in various electronic applications.
The frequency tolerance is ±30 ppm, providing reliable performance in electronic applications.
The country of origin for this model is India.
