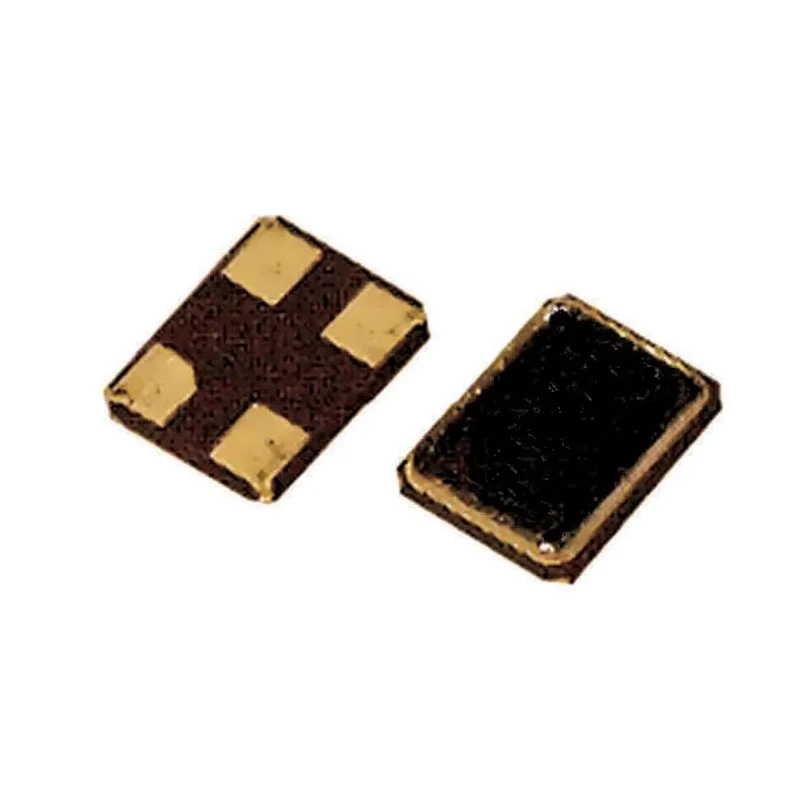

MERCURY 12 MHz Surface Mount Crystal ±30 ppm Frequency Stability SMD 4-Pin 3.2 x 2.5 x 0.7 mm X32-12.000-12-30/30/4085

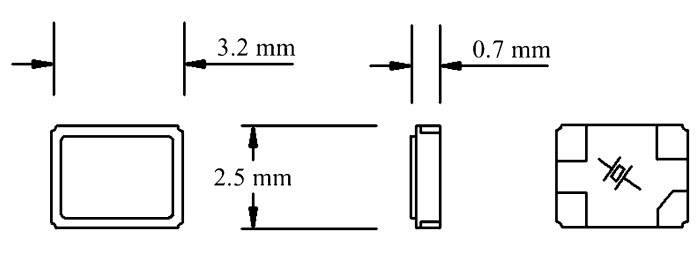

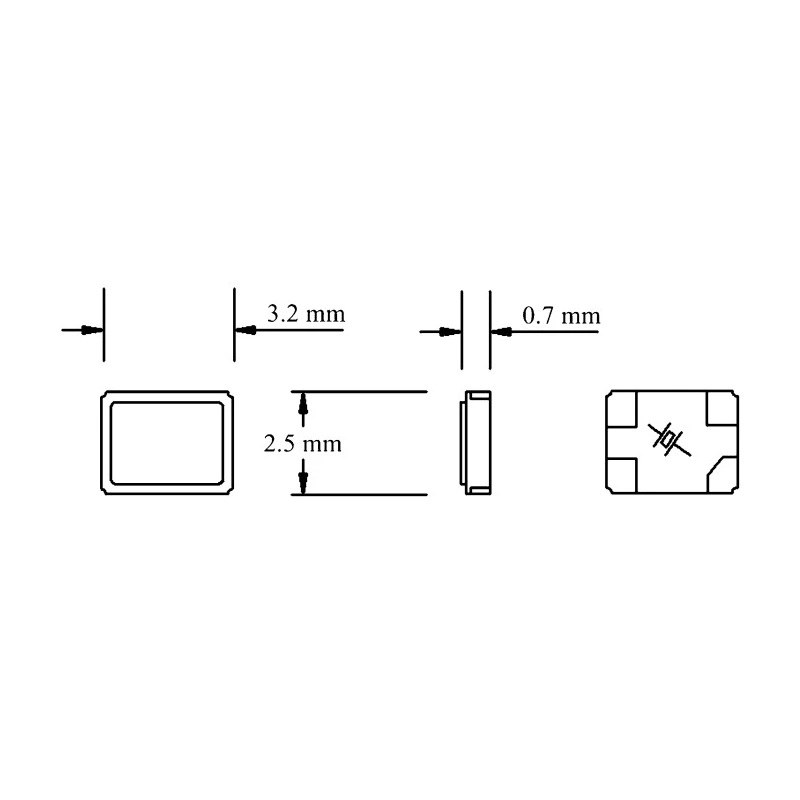

The MERCURY X32-12.000-12-30/30/4085 is a precision 12 MHz crystal unit designed for surface mount applications requiring stable frequency performance within ±30 ppm tolerance. The 4-pin SMD package, measuring 3.2 mm in length, 2.5 mm in width, and 0.7 mm in height, provides a compact footprint for space-sensitive circuit designs.

This crystal offers a load capacitance of 12 pF and a series resistance of 100 Ω, achieving reliable oscillation suitable for timing, frequency reference, and clock generation in industrial, communication, and consumer electronic devices. The wide operating temperature range from -40°C to 85°C enables consistent performance in harsh and varying environmental conditions.

Packaged on tape and reel, the unit facilitates efficient automated pick-and-place assembly for high volume production. The product meets RoHS compliance, reflecting commitment to reducing hazardous substances in electronics manufacturing.

Its origin from Taiwan, Province of China ensures adherence to high manufacturing standards and quality assurance processes. This crystal unit is ideal for industrial electronics, communications equipment, computing devices, and other precision frequency control applications.

Standard frequency: 12 MHz for accurate timing applications. Surface mount package with 4 pins for easy PCB integration. Load capacitance of 12 pF ensures optimal oscillator performance. Temperature operating range from -40°C to 85°C suits demanding environments.

Series resistance at 100 Ω supports effective signal integrity. RoHS compliant for environmentally responsible manufacturing. Tape and reel packaging supports automated assembly lines. Explore more precision crystals and oscillators in the Electronics Components category on EnvMart for your industrial and technological requirements.
