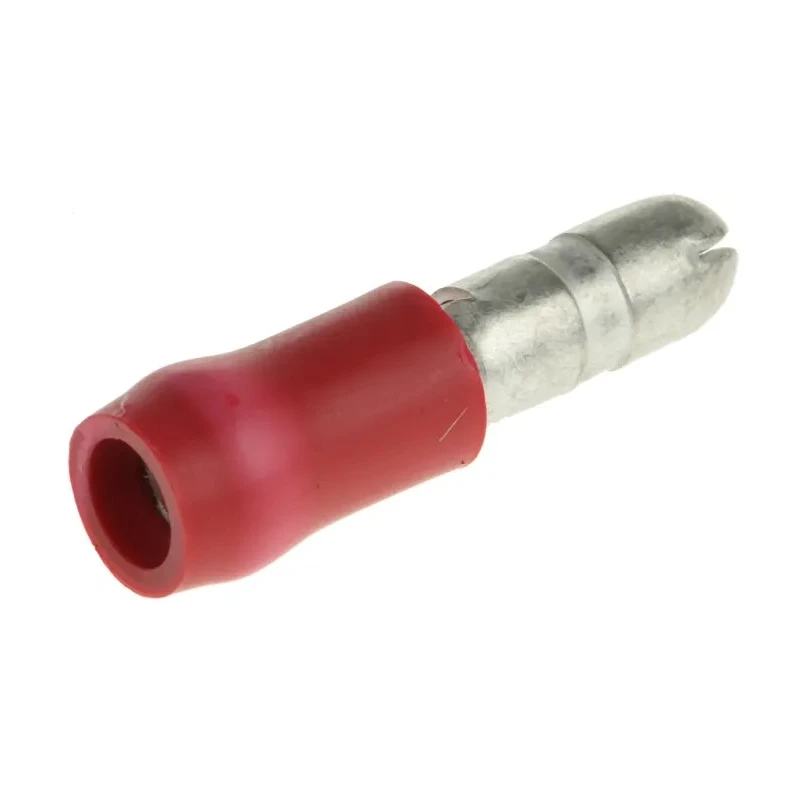

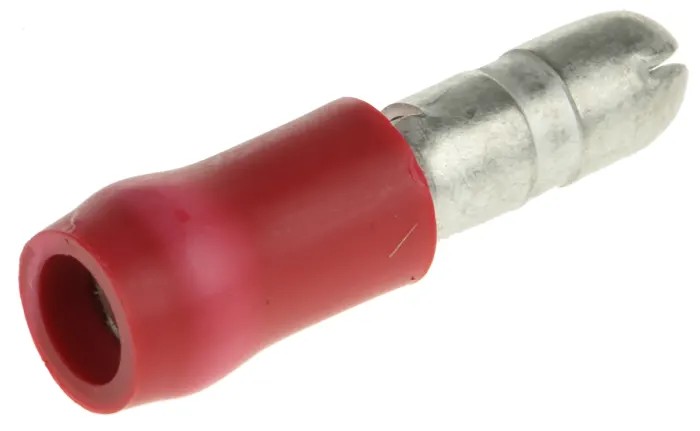

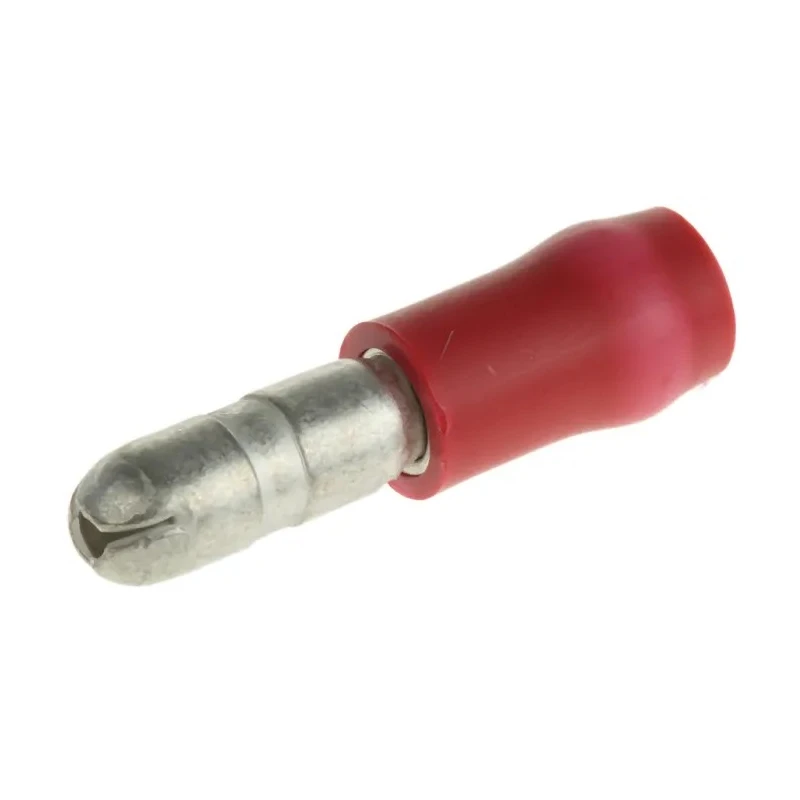

TE Connectivity Insulated Red Crimp Bullet Connector 20 AWG to 15 AWG, 4 mm Bullet Diameter, Male 165590-1

TE Connectivity 165590-1 Insulated Red Crimp Bullet Connector is designed for a wide range of electrical and electronic wiring tasks requiring secure, reliable connections. This male connector accommodates wire sizes from 20 AWG to 15 AWG and features a 4 mm bullet diameter for versatile compatibility.

The connector's core is made of a precision-formed high conductivity copper body and barrel, ensuring excellent electrical performance. The barrel contains serrations to maximize contact and tensile strength once crimped. Surrounding the wire barrel is a copper sleeve that improves insulation support, while a red nylon sleeve provides colour coding to instantly identify the wire size.

The funnelled wire entry allows quick wire insertion, which is essential for high-speed production environments. This connector achieves uniform, reliable crimps with specially designed tool dies and construction.

Applications include use in instruments and controls, lighting equipment, power supplies, panel boxes, transportation and lifting equipment, motors, aerospace systems, and household appliances. The connector meets robust wiring standards and is suitable for demanding environments.

Constructed with a high conductivity copper body for reliable and efficient electrical connections. Copper sleeve improves wire insulation support during and after crimping. Serrations in the wire barrel ensure secure contact and tensile strength.

Colour coded red nylon sleeve allows easy wire size identification and tooling compatibility. Funnelled wire entry facilitates fast and accurate wire insertion during assembly. Supports uniform and durable crimps for long service life.

Male gender configuration with a compact 22.7 mm overall length. Compatible with wire sizes from 20 AWG (0.25 mm²) to 15 AWG (1.6 mm²).

TE Connectivity PIDG crimp bullet connectors provide a versatile solution for various electrical wiring and manufacturing requirements, combining durability, ease of use, and excellent electrical performance.
