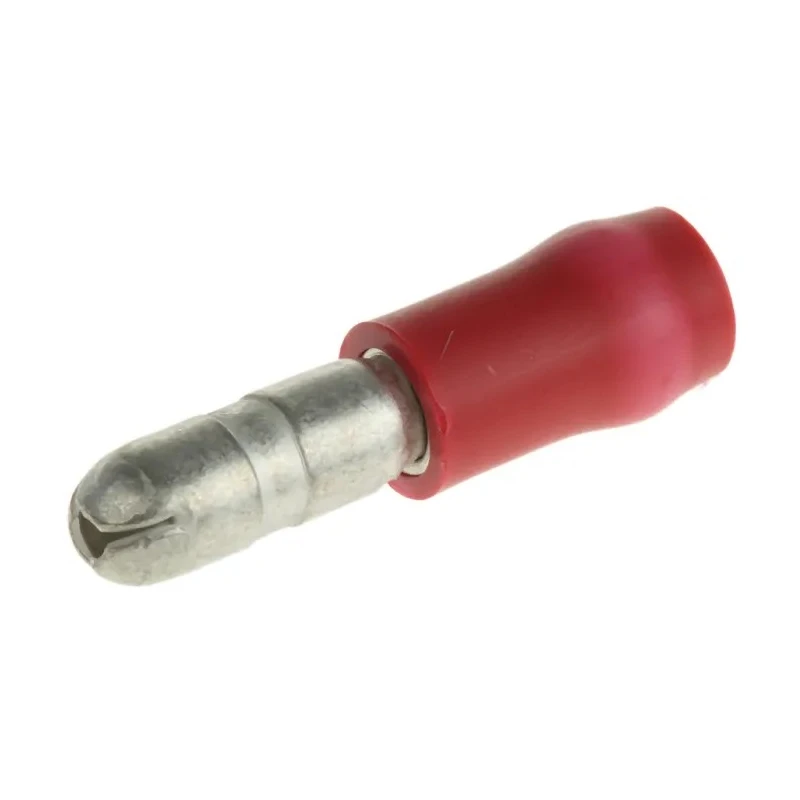

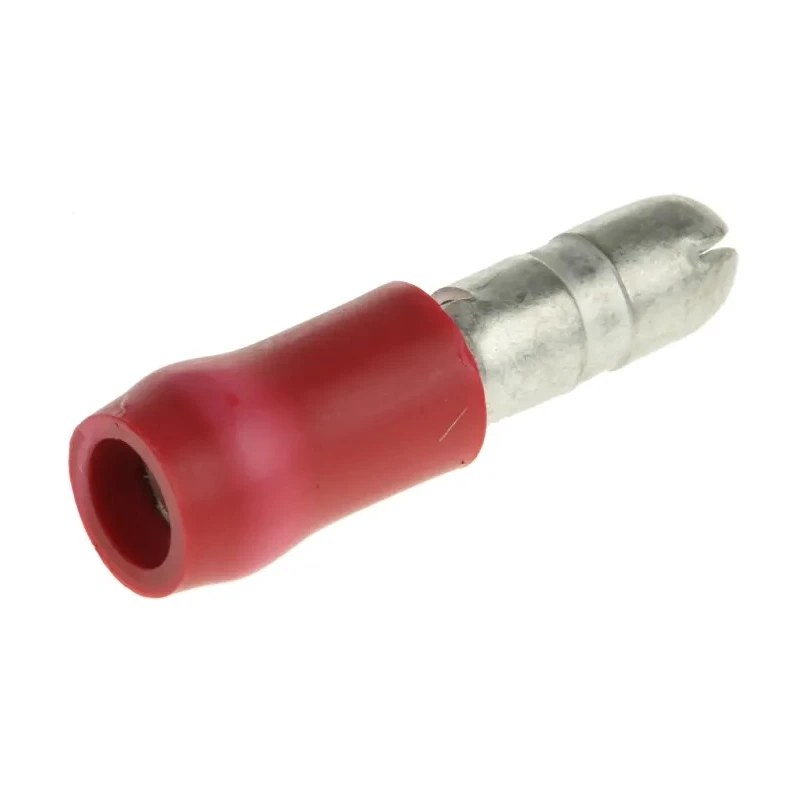

TE Connectivity Insulated Red Crimp Bullet Connector 20 AWG to 15 AWG, 4 mm Bullet Diameter Male 22.7mm Overall 165590-1

TE Connectivity 165590-1 is an insulated red crimp bullet connector suitable for wire sizes ranging from 20 AWG to 15 AWG. It features a 4 mm male bullet diameter and an overall connector length of 22.7 mm.

These PIDG (Pre-Insulated Diamond Grip) bullet connectors are engineered for consistent and reliable electrical connections in demanding circuit environments. The precision-formed copper body and barrel offer excellent conductivity. Serrations inside the wire barrel ensure maximum contact and tensile strength after crimping, while the copper sleeve supports wire insulation integrity.

The colour coded red nylon sleeve provides clear wire size identification and tooling guidance, streamlining assembly processes. The funnelled wire entry is designed for quick wire insertion, enhancing efficiency in high-volume production lines.

Contact surfaces are tin plated over brass material to resist corrosion and ensure lasting connections. These connectors are widely used in industrial, instrumentation, control systems, lighting, power supply panels, transportation equipment, lifting devices, motors, aerospace applications, and appliances.

Designed to meet or exceed stringent standards, including MIL-T-7928 Type II Class 1 and 2, these connectors provide dependable performance in both commercial and industrial sectors.

High conductivity copper body. Copper sleeve for wire insulation support. Serrations for secure crimp connections. Red nylon colour coded sleeve for easy identification. Funnelled wire entry for fast wire insertion. Reliable and uniform crimp design.

Tin plated brass contact material. Wide range of industrial and aerospace applications. Compatible with specialised crimping tools for consistency. Explore TE Connectivity's Bullet Connectors to find a variety of crimp connectors designed for precision and reliability in electrical wiring tasks.
