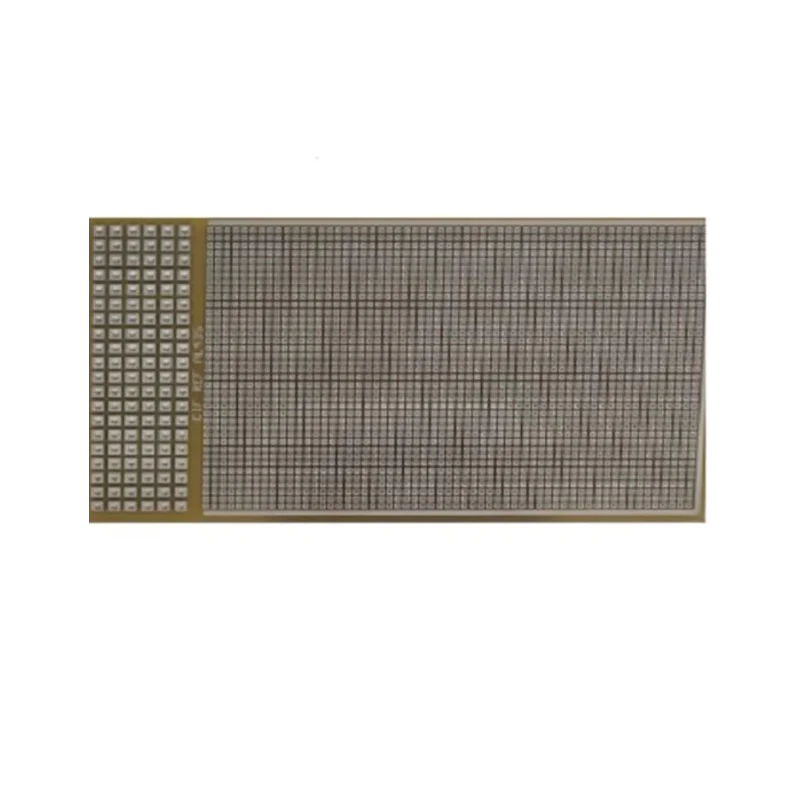

CIF 2 Sides Matrix Board FR4 95mm x 53mm 0.70mm Thick 1.27mm Pitch with 39 x 59 SMD Pads AL435

CIF AL435 Matrix Board is a professional-grade dual-sided prototyping board made from FR4 material, measuring 95 mm in length and 53 mm in width. The board thickness of 0.70 mm and copper thickness of 0.7 μm on both sides make it a reliable substrate for soldering and circuit assembly. Engineered with a precise 1.27 mm hole pitch and hole diameter of 0.35 mm, it facilitates easy and accurate placement of components.

This matrix board is configured with 39 x 59 surface-mount device (SMD) pads, each having an area of 1 mm², making it ideal for designing and testing electronic circuits involving SMD components. Its double-sided copper plating enhances electrical connectivity and reduces circuit resistance, suitable for prototypes or repair work.

The FR4 material grade ensures excellent mechanical strength, flame resistance, and dimensional stability under typical electronic manufacturing conditions. This board is suitable for use in electronics development labs, testing setups, and hobbyist projects requiring compact and high-quality prototyping solutions.

Applications include laboratory prototyping for electronic components, educational electronics experiments, and small batch manufacturing tests. The precise layout supports a range of component sizes with compatibility for standard pitch and hole sizes.

The board material is high-grade FR4, ensuring durability and stability. It has copper thickness of 0.7μm on both sides for effective conductivity. The precision of 1.27 mm hole pitch facilitates standard component fitting.

The 0.35 mm diameter holes allow for easy through-hole component mounting. Designed for testing and prototyping of surface-mount device (SMD) components. Suitable for electronic development, repair, and testing applications.

Manufactured in France, adhering to quality standards.

This matrix board is a valuable component for professionals and enthusiasts in electronics engineering and prototyping fields. Explore other Matrix Boards and prototyping solutions in EnvMart's Electronics & Electricals category for comprehensive product selections.
