Takachi Electric Industrial 2 Surface Mount (SMT) Board Epoxy Glass Fabric Laminate FR4 14 x 21 1 mm Holes, 2.54 mm TNF39-59

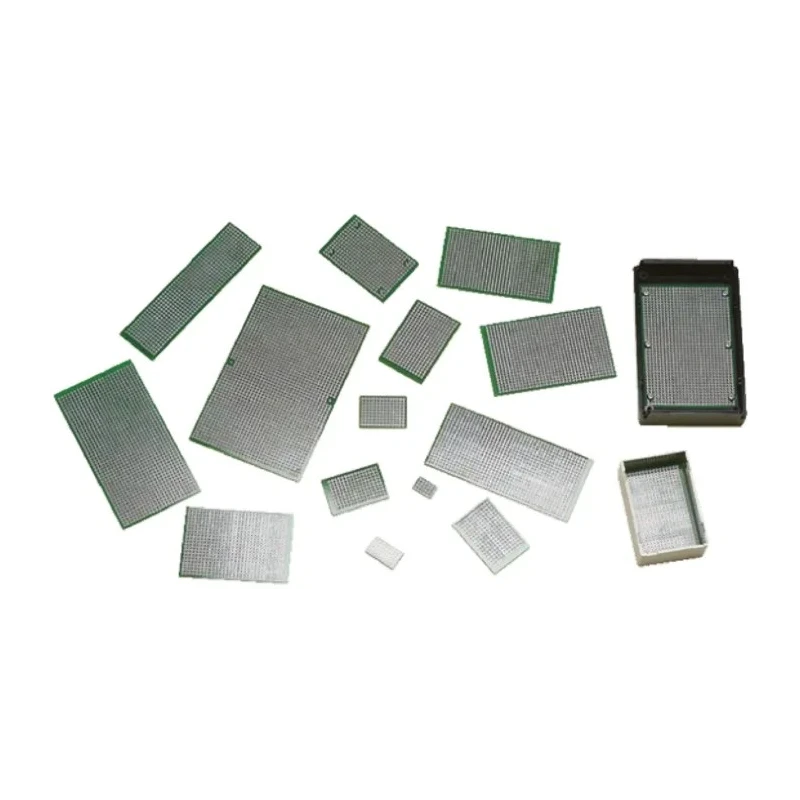

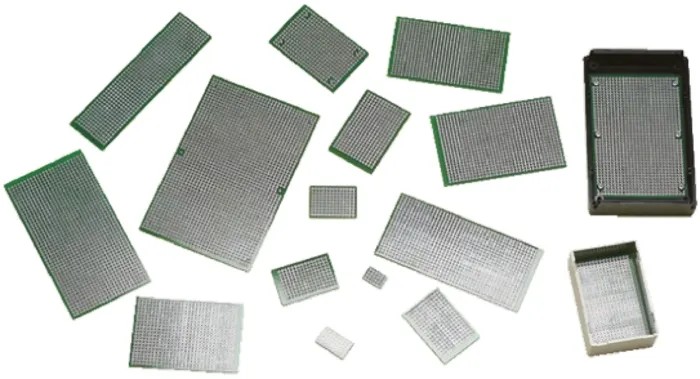

Takachi Electric Industrial TNF39-59 is a high-quality 2-sided Surface Mount (SMT) prototyping board made from epoxy glass fabric laminate FR4 material. It features a precise hole pitch of 2.54 mm and a layout of 14 by 21 holes with each hole diameter of 1 mm. The overall board dimensions are 59 mm in length and 39 mm in width, while the thickness is a sturdy 1.6 mm. This board is designed for seamless use with SW and SS series cases for prototyping electronic circuits.

Crafted in Japan, this universal board offers excellent durability and precision for a variety of electronic prototyping, cleanroom, and assembly applications. Its double-sided surface mount allows components to be soldered on either side, enhancing design flexibility and circuit density.

The board’s Epoxy Glass Fabric Laminate (FR4) ensures superior electrical insulation and mechanical strength, vital for industrial and laboratory use. With RoHS compliance, the TNF39-59 board supports environmentally responsible manufacturing standards, making it suitable for sustainable industrial electronics projects.

Applications include laboratory prototyping, electronic component testing, industrial control systems development, and educational electronics development kits. Constructed with durable epoxy glass fabric laminate material suitable for electronic prototyping.

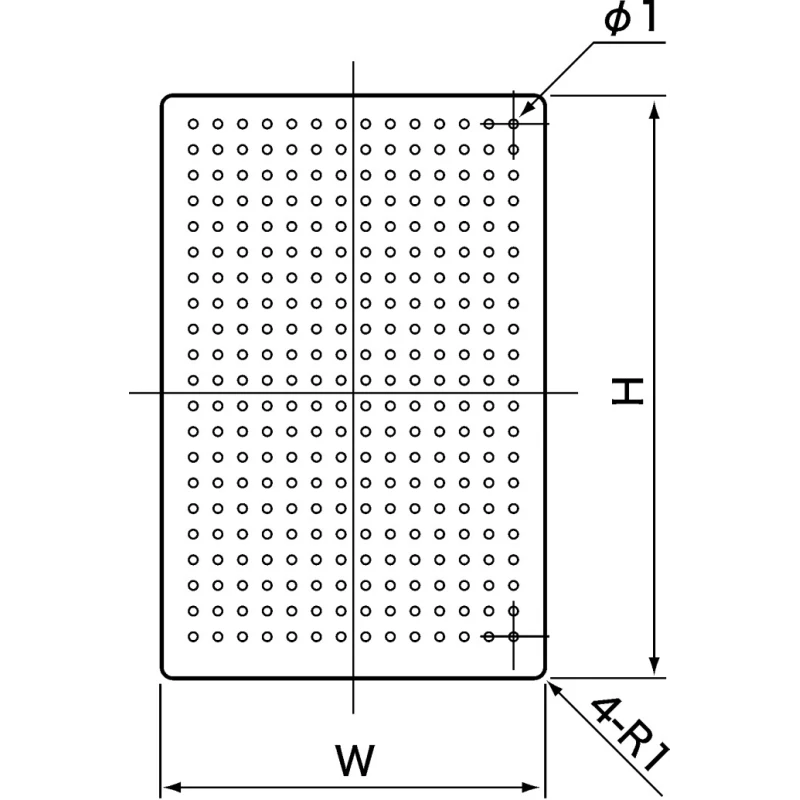

Features two-sided board design allowing versatile mounting options. Holes layout of 14 by 21 with 1 mm diameter for secure component placement. Standard 2.54 mm hole pitch ensures compatibility with common electronic components.

Board thickness of 1.6 mm provides robust mechanical strength. Precisely sized at 59 mm length and 39 mm width for fitting in SW and SS series cases. Manufactured in Japan with RoHS compliance for environmental safety. Explore Takachi Electric Industrial products and Matrix Boards on EnvMart for comprehensive prototyping solutions.
