Takachi Electric Industrial Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 25mm x 15mm x 1.6mm TNF15-25

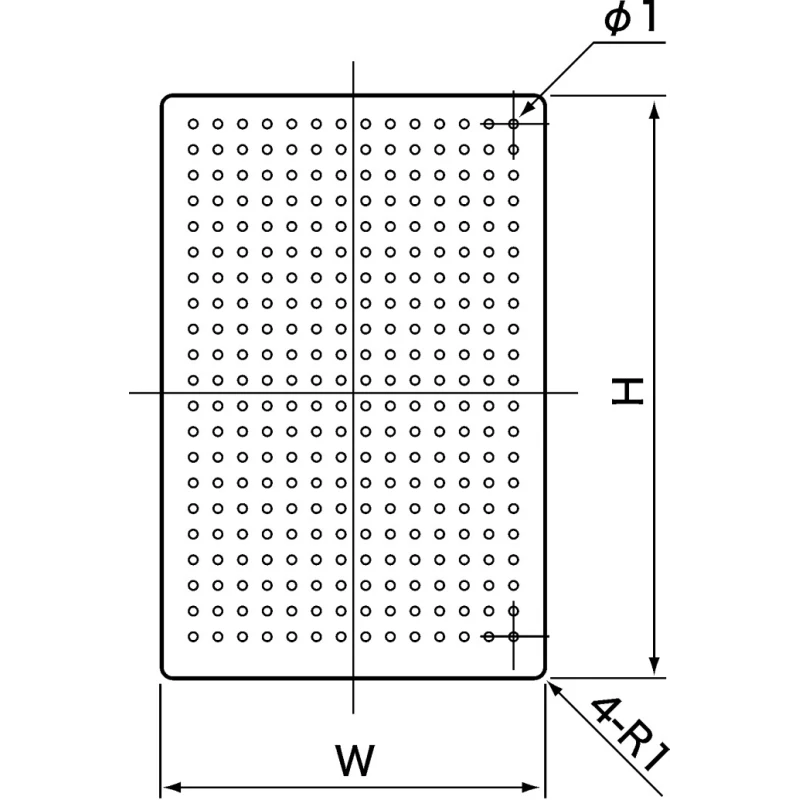

Takachi Electric Industrial TNF15-25 is a professional-grade Surface Mount Technology (SMT) prototyping board constructed from FR4 epoxy glass fabric laminate material. Its precise dimensions of 25 mm length, 15 mm width, and 1.6 mm thickness combined with a 2.54 mm pitch and 1 mm diameter holes make it ideal for reliable, repeatable circuit prototyping and assembly.

This universal board is designed with 2 sides equipped with through holes arranged in a 5 by 9 hole layout pattern, facilitating versatile component placement and soldering. The board complies with RoHS environmental standards ensuring safety and sustainability in electronics manufacturing.

Manufactured in Japan, this high-quality board suits use in workshop and laboratory environments, as well as in industrial settings requiring durable, dependable prototyping hardware. It fits perfectly with SW and SS series cases to support compact and modular electronics assemblies.

Two-sided Surface Mount Technology board for maximum prototyping flexibility. Easily accommodates various electronic components with 2.54 mm pitch hole spacing. Robust FR4 epoxy glass fabric laminate material offers electrical insulation and mechanical strength.

Standard 5 x 9 hole layout supports organized circuit design. Complies with industry RoHS environmental and safety standards. Made in Japan with stringent quality control for consistent performance. Compatible with SW and SS series cases for modular mounting solutions.

Suited for electronics development, manufacturing, and educational labs.
