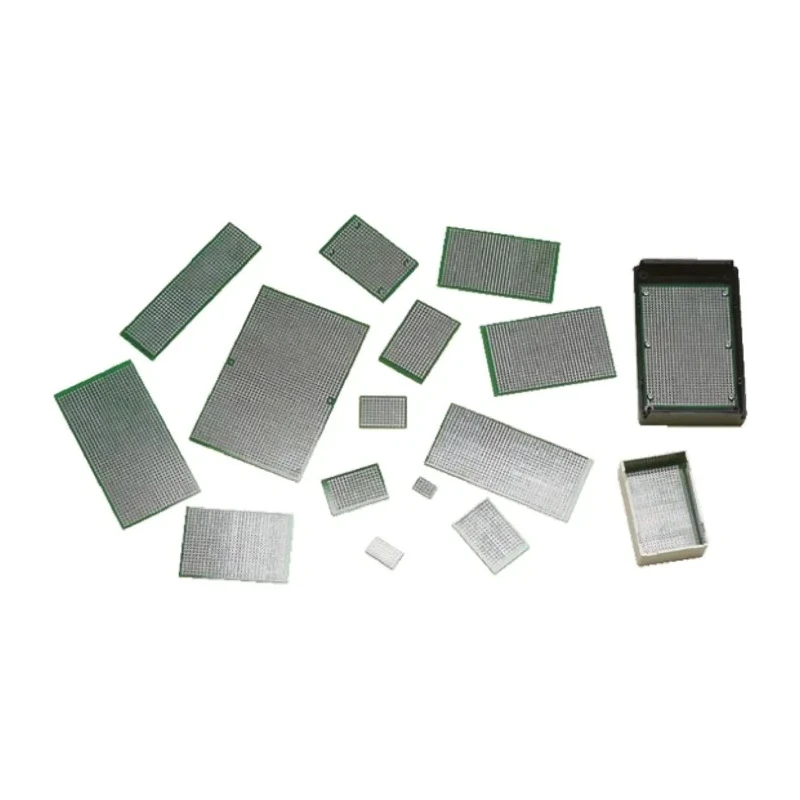

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 1.6mm Thickness 10.7mm x TNF11-16
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Takachi Electric Industrial |
| Length | 15.8mm |
| Model | TNF11-16 |
| Width | 10.7mm |
| Hole Diameter | 1mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Number of Sides | 2 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |
| Hole Layout | 4 x 6 |
| Hole Pitch | 2.54mm |
Key Features
- Constructed from high-quality FR4 epoxy glass fabric laminate for durability.
- Features 4 by 6 holes with 1 mm diameter for component mounting.
- Standard 2.54 mm hole pitch compatible with typical SMT applications.
- Universal board suited for SW and SS series cases.
- Compact size enhances versatility in prototyping and electronic applications.
- Double-sided design for efficient circuit layout options.
- Manufactured in Japan ensuring quality and reliability.
Product Description
Takachi Electric Industrial TNF11-16 Surface Mount (SMT) Board is a high-quality 2-sided prototyping board designed for electronic circuit development and testing. Constructed from durable FR4 epoxy glass fabric laminate material, this board features a precise 1.6 mm thickness and compact dimensions of 15.8 mm in length and 10.7 mm in width, making it ideal for mounting and connecting SMT components.
Its 4 x 6 hole layout with 1 mm diameter holes and 2.54 mm pitch spacing allow for flexible design options and compatibility with a wide range of surface mount electronic components. This universal board is perfectly sized for SW and SS series cases, enhancing adaptability for various electronics projects.
The double-sided design increases available circuit routing space, making it suitable for complex prototyping and low-volume production runs. Its high-grade FR4 material ensures excellent mechanical strength and electrical insulation, meeting industry standards for prototyping boards used in both industrial and laboratory electronics applications.
Manufactured in Japan, the TNF11-16 exemplifies reliability and precision needed for modern electronic circuit development. This board is widely used by engineers and technicians in industries such as industrial electronics, research laboratories, and prototype fabrication settings.
Constructed from FR4 epoxy glass fabric laminate for durability. Features 4 by 6 holes with 1 mm diameter for component mounting. Standard 2.54 mm hole pitch supports typical SMT components. Universal fit for SW and SS series cases enhances versatility.
Double-sided design allows expanded circuit layout options. Compact footprint suits a wide range of prototyping applications. Made in Japan guarantees quality and consistent performance. Explore our Electronics Components category for more prototyping and Matrix Boards from trusted brands and manufacturers.
