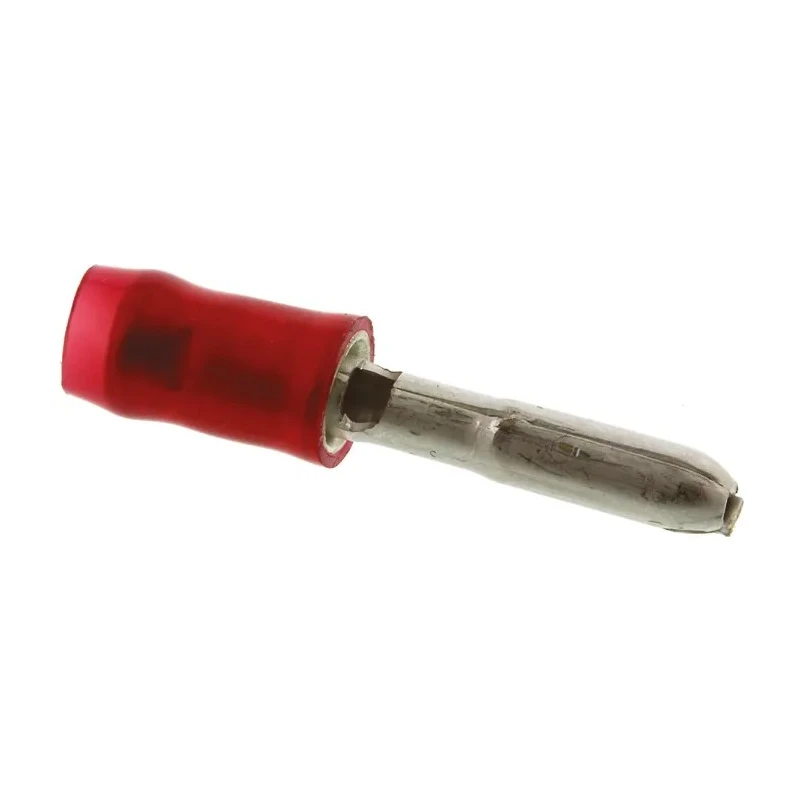

TE Connectivity PIDG Insulated Red Crimp Bullet Connector 20 AWG to 15 AWG, 3 mm Bullet Diameter Male 141462-1

TE Connectivity 141462-1 PIDG Insulated Red Crimp Bullet Connector is a precision-engineered wire terminal designed for secure and reliable electrical connections in industrial and commercial wiring. This male bullet connector accommodates wire sizes from 20 AWG (0.5 mm²) to 15 AWG (1 mm²) and features a 3 mm bullet diameter optimized for consistent mating and un-mating in high-reliability circuits.

The connector construction includes a high conductivity copper body with a brass contact material that is tin-plated to provide excellent corrosion resistance. The wire barrel contains serrations for enhanced contact and tensile strength following crimping, and a copper sleeve surrounds it to support wire insulation. The outer nylon sleeve, colored red, allows easy identification of wire size, improving installation accuracy and minimizing errors in wiring tasks.

The funnelled wire entry design facilitates fast and efficient wire insertion, ideal for high-speed production environments. This connector is part of the PIDG (Pre-Insulated Diamond Grip) series, known for uniform reliability even in the most demanding conditions, with many terminals conforming to military standards MIL-T-7928 Type II, Classes 1 and 2.

Applications include instrumentation and control systems, lighting assemblies, power supplies, panel boxes, transportation equipment, motors, aerospace components, and household appliances. Its compact 24 mm length minimizes space usage while delivering a dependable crimp connection.

Constructed with a high conductivity copper body and barrel for efficient electrical flow. Features a copper sleeve that provides improved insulation support and mechanical strength. Serrated wire barrel ensures maximum contact and tensile strength after crimping.

Red nylon insulation sleeve for quick wire size identification. Funnelled wire entry supports quick wire insertion, enhancing manufacturing productivity. Brass contact material with tin plating offers corrosion resistance and durability.

Compatible with wire sizes ranging from 20 AWG to 15 AWG (0.5 mm² to 1 mm²). Meets stringent reliability standards including MIL-T-7928 for demanding applications. Manufactured in France with high quality and consistent performance.

This product is suitable for use in industries including industrial manufacturing, aerospace, automotive, electrical panels, HVAC systems, and other commercial wiring applications. It ensures a dependable and uniform crimp connection that supports electrical safety and operational efficiency.
