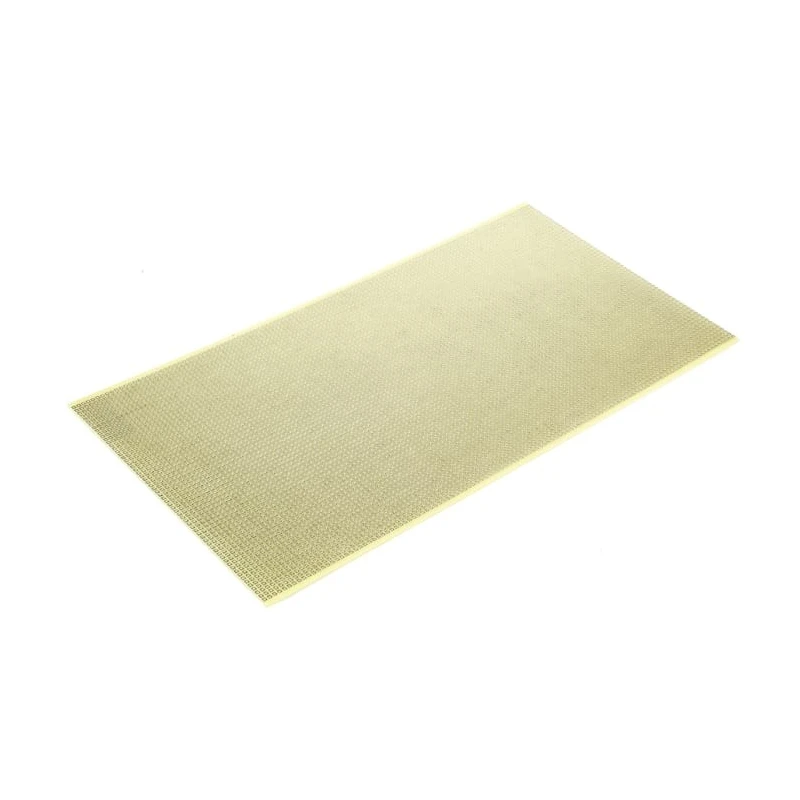

CIF 1 Matrix Board FR4 Epoxy Glass Fabric Laminate 1 mm Holes, 2.54 mm Pitch, 300 mm Length, 160 mm Width AGP30

CIF AGP30 1 Matrix Board FR4 is a high-quality single-sided prototyping board designed for electronic circuit development and testing. It features a robust FR4 epoxy glass fabric laminate that ensures excellent mechanical strength and electrical insulation across the 300 mm length and 160 mm width dimensions. This matrix board is ideal for precision wiring and soldering applications requiring consistent hole pitch and pad size.

The copper-tin plated square pads have a thickness of 35 μm and provide reliable conductivity for electronic connections. Holes with a diameter of 1 mm are drilled at a standard pitch of 2.54 mm, which is compatible with common electronic components and integrated circuits. The gap of 0.54 mm between copper tracks offers sufficient clearance to reduce the risk of short circuits and crosstalk.

Designed to meet RoHS compliance, the board minimizes hazardous substances, making it suitable for environmentally-conscious electronic manufacturing processes. Manufactured in France, the product guarantees adherence to strict quality standards. Its single-sided configuration makes it suitable for straightforward, accessible prototyping tasks.

This CIF Matrix Board suits applications in industrial electronics design, laboratory prototyping, electronic research, educational projects, and hobbyist model building. Its standardized layout facilitates efficient circuit assembly and debugging.

The board is made of FR4 epoxy glass fabric laminate for durability and insulation. Single-sided copper-tin plating with 35 μm copper thickness provides excellent conductivity. Holes have a diameter of 1 mm and are arranged with a 2.54 mm drilled pitch.

Square pads measuring 2 mm by 2 mm and a gap between tracks of 0.54 mm ensure precise component placement. Manufactured in France and compliant with RoHS standards for environmental safety. Explore the Electronics Components category at EnvMart for a wide range of prototyping boards and development accessories from trusted brands including CIF.
