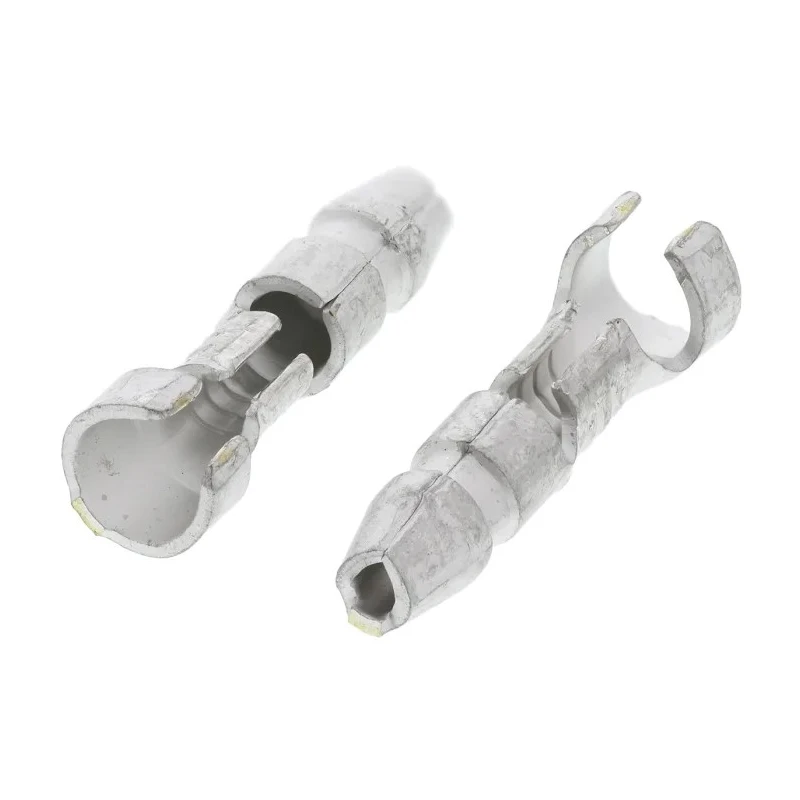

TE Connectivity Uninsulated Crimp Bullet Connector 20 AWG to 14 AWG, 3.5 mm Bullet Diameter Male 170020-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 170020-1 |
| Gender | Male |
| Insulation | Uninsulated |
| Overall Length | 17mm |
| Contact Material | Brass |
| Series | 170020 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-6212PBrand: TE ConnectivityManufacturers Part No.: 170020-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.27mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Bullet Diameter | 3.5mm |
Key Features
- Constructed from tin-plated brass for reliable conductivity and corrosion resistance.
- Designed for uninsulated, male bullet crimp connections.
- Overall length is 17 mm for suitable wire termination applications.
- Compatible with wire cross-sectional areas from 0.5 mm² to 2.27 mm².
- Tin plating on contact surface ensures durable and low-resistance connectivity.
- Applicable in electrical power and signal wire splicing tasks.
- No additional insulation, requiring proper handling for safe circuit assembly.
- Meets basic connector standards without special certifications.
Product Description
TE Connectivity 170020-1 is a high-quality uninsulated crimp bullet connector designed for professional electrical and electronic applications. It supports wire sizes ranging from 20 AWG (0.5 mm²) to 14 AWG (2.27 mm²), catering to a broad range of power and signal wiring needs. The connector features a male bullet terminal with a bullet diameter of 3.5 mm, providing a secure and easy-to-mate connection.
Manufactured from brass and finished with tin plating, these connectors combine excellent electrical conductivity with corrosion resistance, ensuring long-term reliability in industrial, commercial, and laboratory environments. The overall length of the connector is 17 mm, optimized for precise and consistent crimping compatibility with wire terminals.
The uninsulated design demands careful installation to prevent accidental shorts, making it suitable for experienced technicians and engineers in controlled assembly scenarios. These connectors are commonly used in wire terminals and splices for power distribution, automotive wiring harnesses, control panels, and various electronic equipment assemblies.
TE Connectivity’s 170020-1 crimp bullet connector does not carry specific standard approvals but leverages the trusted quality of the TE Connectivity brand, well-known for durable electronic components.
Constructed from tin-plated brass ensuring excellent conductivity and corrosion resistance. Male bullet terminal with a 3.5 mm diameter for secure mating. Supports wire sizes from 20 AWG to 14 AWG, covering multiple wire gauges.
Uninsulated type requires precise installation practices. Overall 17 mm length optimized for efficient crimping and reliable connection. Widely suitable for electrical power and signal splicing applications. Ideal for industrial, laboratory, manufacturing, and automotive wiring uses.
Does not have specific certifications but backed by TE Connectivity’s industry reputation.
Explore EnvMart’s extensive range of TE Connectivity crimp connectors and Bullet Connectors for comprehensive wire termination solutions. Our catalog offers technical support and datasheets to assist in selecting the right connector for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 20 AWG (0.5 mm²) to 14 AWG (2.27 mm²).
The overall length of this connector is 17 mm, which is optimized for efficient crimping and reliable connections.
It is constructed from brass and features tin plating, ensuring excellent electrical conductivity and corrosion resistance.
The bullet diameter of this male terminal is 3.5 mm, providing a secure and easy-to-mate connection.
No, this model is uninsulated, which requires careful installation to prevent accidental shorts during use.
It is commonly used in electrical power and signal splicing applications, including automotive wiring harnesses and control panels.
It provides a male bullet crimp connection, designed for reliable electrical and electronic applications.
This model does not carry specific standard approvals but is backed by the trusted quality of the TE Connectivity brand.
The contact surface is tin plated, which helps ensure low-resistance connectivity.
Due to its uninsulated design, it requires precise installation practices to ensure safe circuit assembly.
The connector is manufactured in India.
This model features a male gender design, suitable for specific mating applications.
