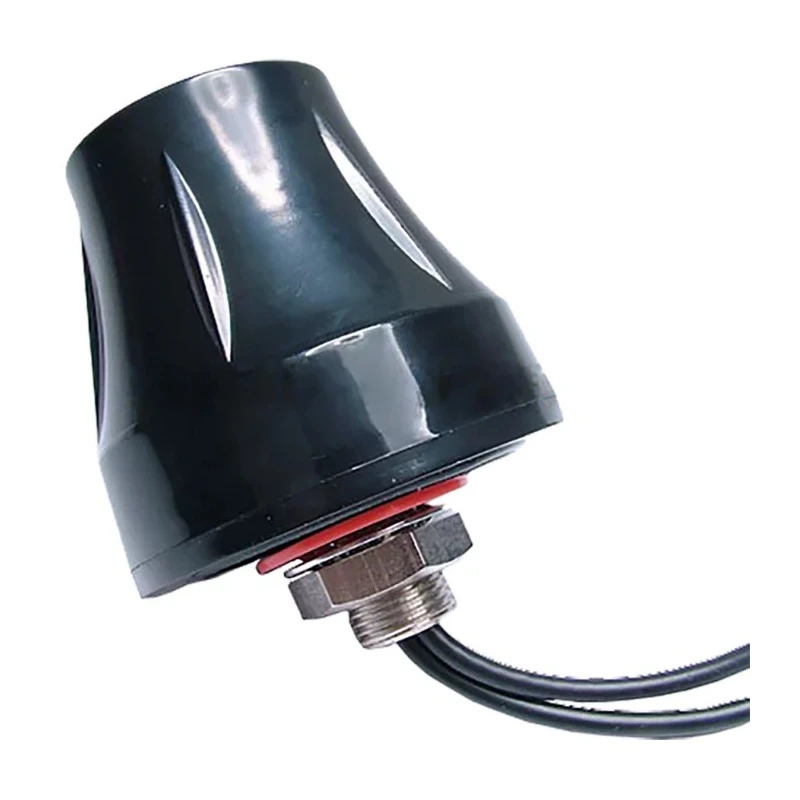

Siretta Dome Multi-Band Antenna with SMA Connector 824 MHz - 2.17 GHz 4G/5G TANGO16/3M/SMAM/SMAM/S/S/26
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Siretta |
| Operating Temperature | -40 to +85°C |
| Model | TANGO16/3M/SMAM/SMAM/S/S/26 |
| Cable | 2 x RG174 coaxial cable |
| Connector Type | SMA |
| Series | Tango 16 |
| Connectors | 2 x SMA Male |
| Gain | 2dBi |
| Lead Length | 3m |
| Protection | IP67 Rated |
| Impedance | 50 Ω |
| Standards/Approvals | RoHS |
| Maximum Frequency | 2.17GHz |
| Connector Gender | Male |
| Minimum Frequency | 824MHz |
| Internal/External | External |
| RF Protocols | 4G/5G |
| Antenna Physical Form | Dome |
| Antenna Mount Type | Through Hole/Bolted |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Dielectric |
| Number of Bands | 4 |
| GPS Gain | 28 dB |
| GSM Polarisation | Linear |
| GPS Polarisation | RHCP |
| GSM Gain (peak) | 1.95 dBi |
| 3G Gain | 2.33 dBi |
| ISM Gain | 1.5 dBi to 2 dBi |
Key Features
- This external dome antenna features an SMA male connector for reliable signal transmission.
- The antenna provides a 2 dBi gain and supports omni-directional directivity for wide coverage.
- Its IP67 rated housing ensures protection against water ingress, suitable for outdoor use.
- This antenna includes a 3-meter RG174 coaxial cable with through hole/bolted mounting using an M12 stud.
- Operating temperature range from -40°C to +85°C allows flexible deployment in various environments.
- Supports four frequency bands enabling combined GSM, GPRS, 3G, ISM, and GPS functionality.
- The GPS element includes a low noise amplifier with 28 dB gain and right-hand circular polarization.
- Construction uses dielectric internal antenna elements for robust performance.
Product Description
Siretta TANGO16/3M/SMAM/SMAM/S/S/26 Dome Multi-Band Antenna is a weatherproof external antenna designed for advanced outdoor wireless communication systems supporting 4G and 5G protocols. With its versatile multi-band capabilities covering frequencies from 824 MHz to 2.17 GHz, it integrates GSM, GPRS, 3G, ISM, and GPS signals in one compact dome housing.
The antenna features an SMA male connector and is equipped with a 3-meter length RG174 coaxial cable, facilitating flexible installation and secure mounting via an M12 stud through-hole bolted mount. The dome-shaped form factor, measuring 50 mm in diameter and 48 mm in height, includes a rubber O-ring to maintain IP67 rated protection, making it highly suitable for harsh outdoor environments.
Performance highlights include a GSM peak gain of 1.95 dBi, a 3G gain of 2.33 dBi, ISM gains ranging from 1.5 dBi to 2 dBi, and a GPS antenna with a 28 dB low noise amplifier supporting RHCP polarization. The antenna impedance is standardized at 50 Ω for optimal RF efficiency. Its omni-directional directivity provides uniform signal coverage, enhancing connectivity for wireless applications.
Operating reliably between -40°C and +85°C, this antenna is engineered for industrial, commercial, and telecommunications uses, including IoT networks, GPS tracking, automated monitoring, and cellular base stations. Its rugged design and multi-band support allow integrators to deploy single antenna solutions compatible with multiple radio technologies, reducing the need for separate antennas.
External dome antenna with IP67 weather protection. Multi-band operation across GSM, GPRS, 3G, ISM, and GPS frequencies. Includes 3m RG174 cable with SMA male connectors. Omni-directional radiation pattern with 2 dBi gain.
Robust construction for challenging environmental conditions. Compact dimensions suitable for low-profile mounting. Wide temperature range for versatile deployment. Supports applications in telecommunications, GPS, IoT, and industrial monitoring.
Complies with RoHS standards.
This antenna is a reliable, durable solution for integrators requiring multi-band cellular and GPS reception in outdoor installations. Browse EnvMart's full range of Multi-Band Antennas for matching accessories and advanced RF solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna provides a gain of 2 dBi, with specific gains of 1.95 dBi for GSM, 2.33 dBi for 3G, and between 1.5 dBi to 2 dBi for ISM.
It features an SMA male connector, ensuring reliable signal transmission.
The antenna has an IP67 rating, providing protection against water ingress, making it suitable for outdoor use.
This antenna operates effectively within a temperature range of -40°C to +85°C, allowing for deployment in various environments.
It supports through hole/bolted mounting using an M12 stud, facilitating secure installation.
The antenna includes a 3-meter RG174 coaxial cable, providing flexibility for installation.
The antenna has a dome physical form, measuring 50 mm in diameter and 48 mm in height.
The antenna has a standardized impedance of 50 Ω, which is optimal for RF efficiency.
The GPS element includes a low noise amplifier with a gain of 28 dB and supports right-hand circular polarization (RHCP).
Yes, this model complies with RoHS standards, ensuring it meets environmental regulations.
