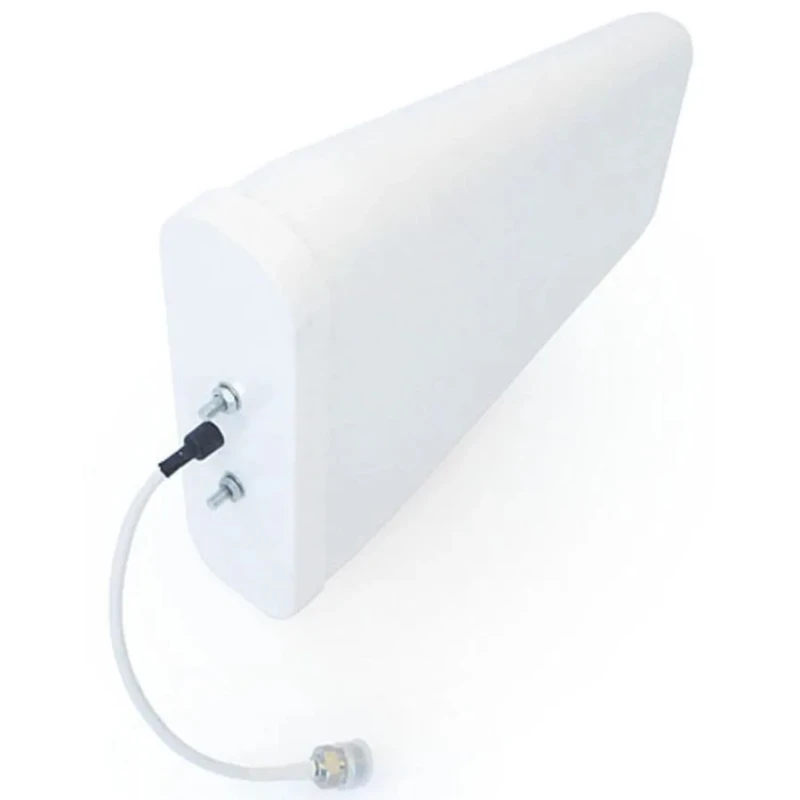

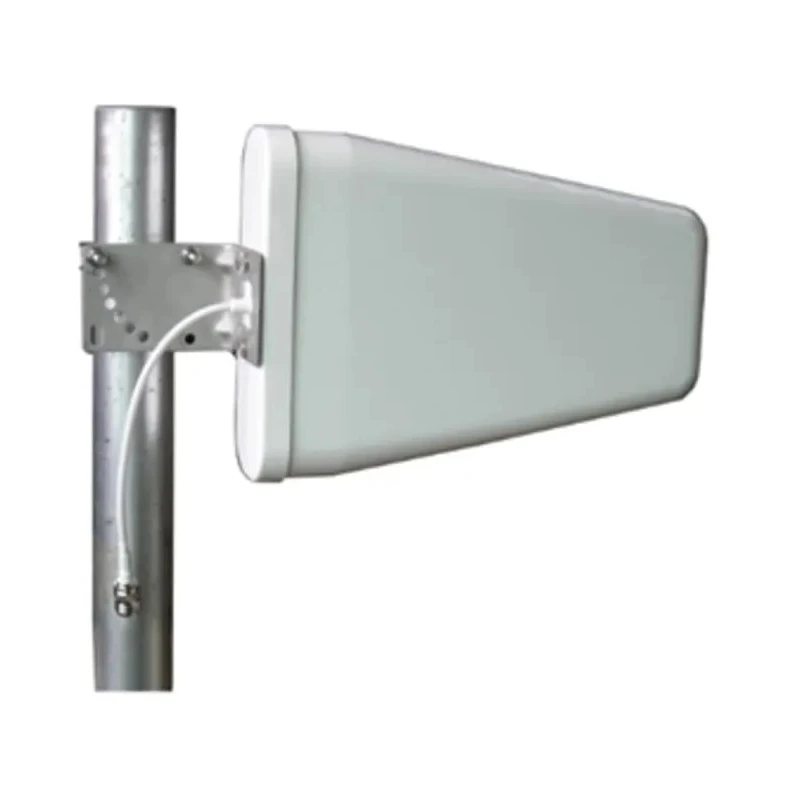

Siretta Multi-Band Directional Wall/Pole Mount Antenna with Type N Female Connector 800 MHz to 2.5 GHz OSCAR18/x/NF/S/S/22
Specifications
| Country of Origin | India |
|---|---|
| Brand | Siretta |
| Dimensions | 290x208x50 |
| Operating Temperature Range | -40 to +60 °C |
| Model | OSCAR18/x/NF/S/S/22 |
| Connector Type | Type N Female |
| Gross Weight | 0.9 kg |
| Bandwidth | 6000MHz |
| Series | Oscar 18 |
| Connector | N-TYPE Female |
| Polarization | Vertical |
| Gain | 8dB |
| Lead Length | 0.2m |
| Impedance | 50 Ohm |
| Max Input Power | 50 W |
| Maximum Frequency | 2.5GHz |
| Connector Gender | Female |
| Minimum Frequency | 800MHz |
| Internal/External | External |

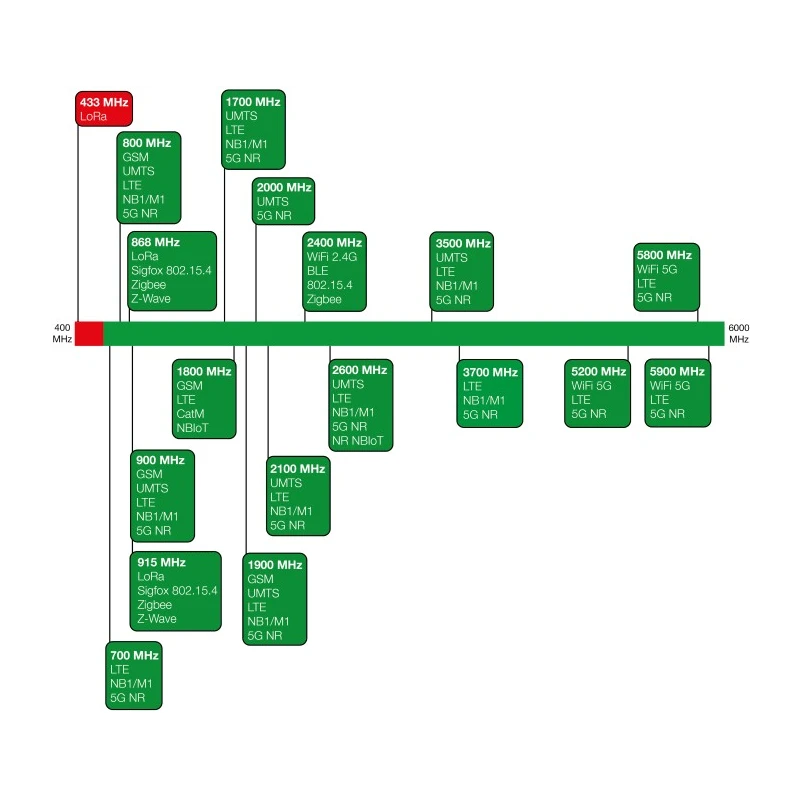

| RF Protocols | NB IoT, 4G, Wi-Fi 6, 2G (GSM/GPRS), Cat-M, LoRaWAN, ZigBee, 3G (UMTS), ISM Band, 5G, IEEE 802.15.4, Bluetooth (BLE), WiFi (Dual Band), WiFi, ISM |
| Antenna Mount Type | Adhesive |
| Directivity | Directional |
| Antenna Internal Construction | Yagi |
| Number of Bands | 4 |
| Highly versatile | excellent performance from 400 MHz to 6 GHz |
| Antenna Cable | RG58 |
Key Features
- Supports multiple RF protocols including 5G NR, 4G LTE, Wi-Fi 6, NB IoT, 2G, 3G, Cat-M, LoRaWAN, ZigBee, Bluetooth, and ISM bands.
- Directional Yagi antenna design provides peak gain of 8 dBi for enhanced signal strength.
- Compact external antenna suitable for wall or pole mounting with included A3 steel bracket.
- Robust ABS plastic radome and aluminum radiating elements ensure durability and weather resistance.
- Operating temperature range of -40 to +60 °C for reliable outdoor use.
- Impedance of 50 Ohm with Type N Female connector and RG58 antenna cable.
- Ground plane independent and supports maximum input power of 50 W.

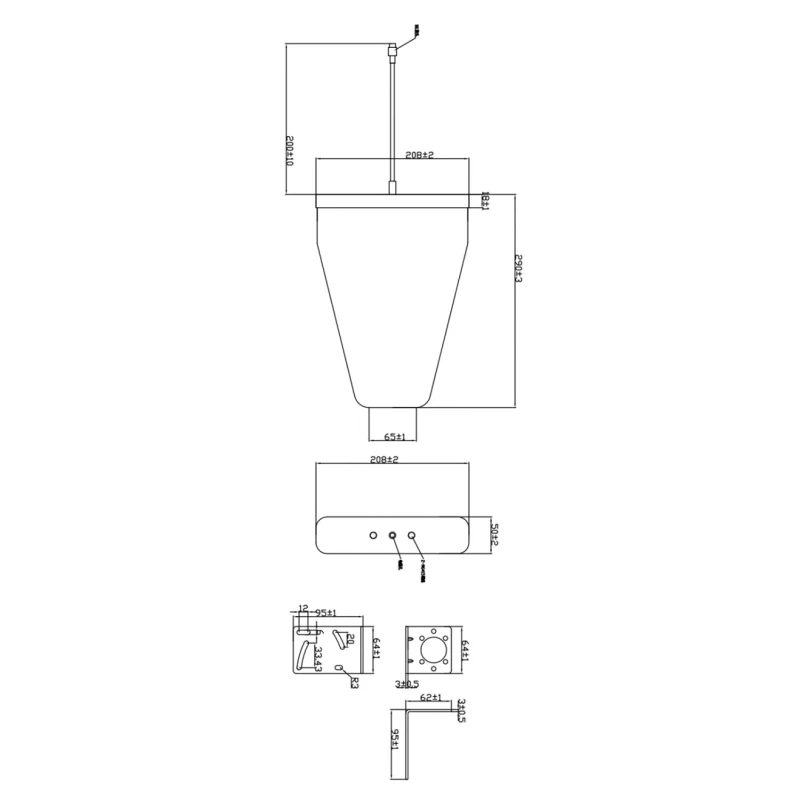

- Measures 290x208x50 mm and weighs approximately 0.9 kg.
Product Description
Siretta OSCAR18/x/NF/S/S/22 is a high-performance multi-band directional antenna designed for various wireless communication protocols including 5G NR, 4G LTE, Wi-Fi 6, NB IoT, 2G GSM/GPRS, 3G UMTS, Cat-M, LoRaWAN, ZigBee, Bluetooth (BLE), and ISM bands.
This external Yagi antenna features a Type N Female connector and is intended for wall or pole mounting with the supplied high-quality A3 steel bracket. Its compact size and directional design deliver a peak gain of 8 dBi, optimizing signal transmission and reception especially in challenging environments like rural areas where signal is low.
The antenna is constructed with an ABS plastic radome and aluminum radiating elements, providing excellent durability and environmental resistance. It is suitable for harsh outdoor applications with an operating temperature range from -40 to +60 °C.
With an impedance of 50 Ohm, a maximum input power rating of 50 W, and ground plane independence, this antenna supports a bandwidth from 800 MHz to 2.5 GHz, covering a broad spectrum of frequencies from 400 MHz to 6 GHz.
Its typical uses include train-to-ground rail communications, precision agriculture, smart grid implementations, and enhancing signal strength for real-time tracking in public transport systems.
Supports multiple communication standards including 5G, 4G LTE, Wi-Fi, Bluetooth, and more. Directional Yagi design with 8 dBi peak gain for superior performance. Durable UV and water-resistant ABS plastic radome. Wall or pole mount with robust A3 steel bracket for flexible installation.
Wide operating temperature range ensures reliable outdoor use. Includes Type N Female connector and RG58 antenna cable. Compact footprint: 290x208x50 mm and lightweight at 0.9 kg. Discover this antenna in the Multi-Band Antennas category at EnvMart for industrial, telecommunications, and advanced wireless applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a frequency range of 800 MHz to 2.5 GHz, supporting a bandwidth of 6000 MHz.
It features a peak gain of 8 dBi, which enhances signal strength for improved transmission and reception.
The antenna is equipped with a Type N Female connector, suitable for various RF applications.
This unit can operate in temperatures ranging from -40 to +60 °C, making it suitable for outdoor use.
It has an impedance of 50 Ohm, which is standard for many RF applications.
The maximum input power rating for this model is 50 W, ensuring it can handle significant signal strength.
It measures 290 x 208 x 50 mm and weighs approximately 0.9 kg, making it compact and lightweight.
This model is designed for wall or pole mounting and includes a high-quality A3 steel bracket for installation.
This antenna features a Yagi design, which is known for its directional capabilities and enhanced performance.
It is constructed with a robust ABS plastic radome and aluminum radiating elements, ensuring durability and weather resistance.
It is suitable for applications such as train-to-ground rail communications, precision agriculture, and smart grid implementations.
