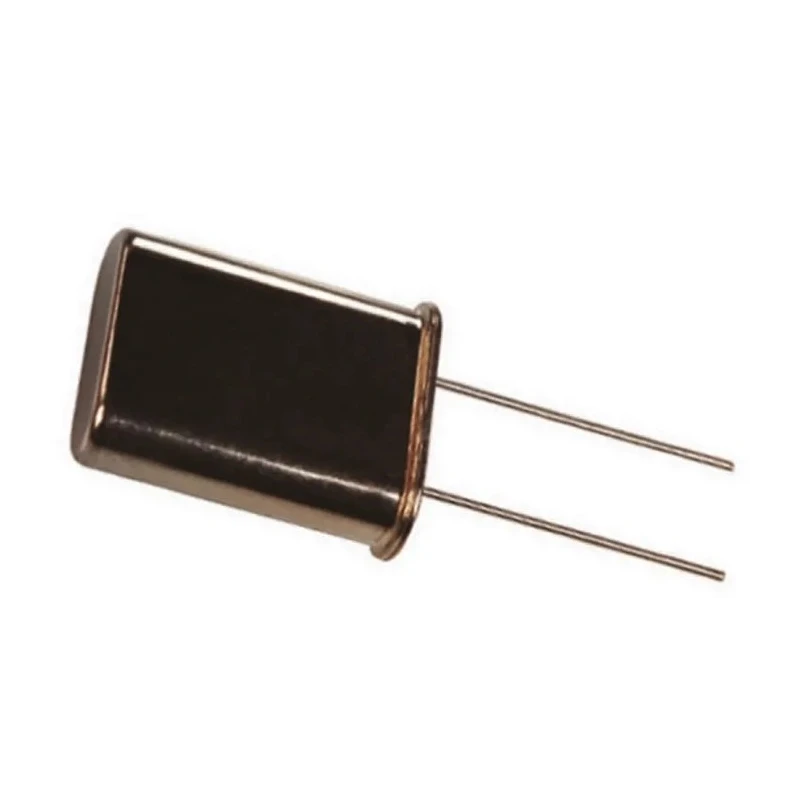

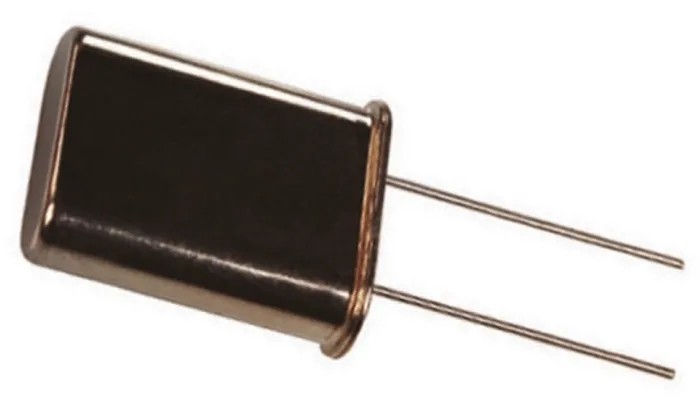

MERCURY 3.6864 MHz Crystal ±30 ppm HC-49U 2-Pin Through Hole 13.6 mm Height 10.7 mm Length 4.5 mm H49-3.6864-18-30/50/4085

MERCURY H49-3.6864-18-30/50/4085 is a high-precision crystal unit operating at a standard frequency of 3.6864 MHz. It features a frequency tolerance of ±30 ppm and a stability of ±50 ppm, ensuring precise timing and frequency control in electronic oscillator applications.

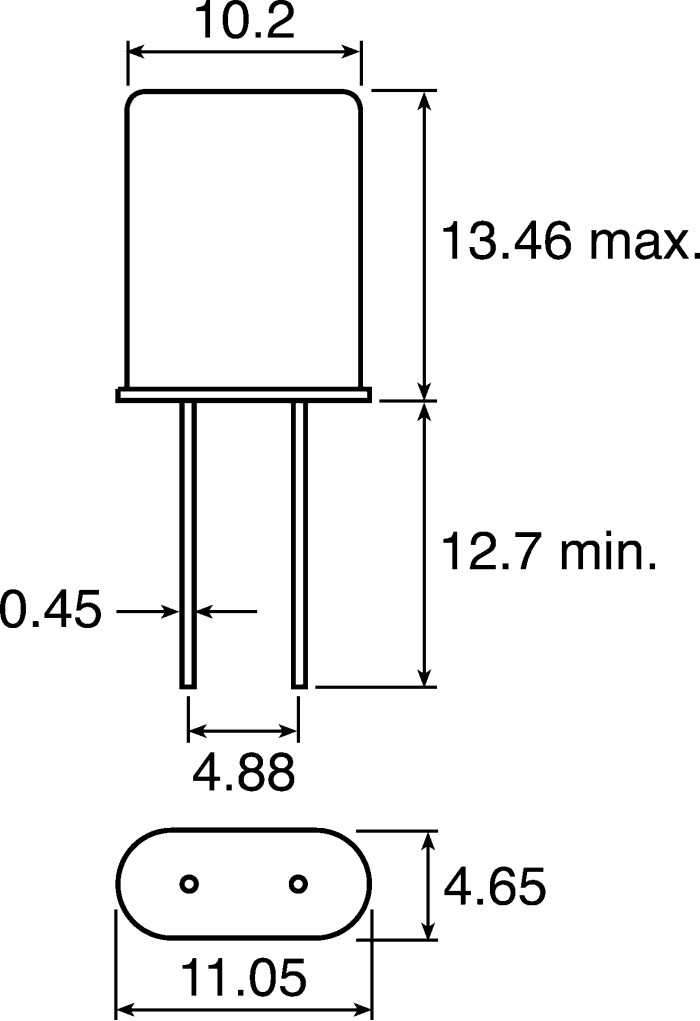

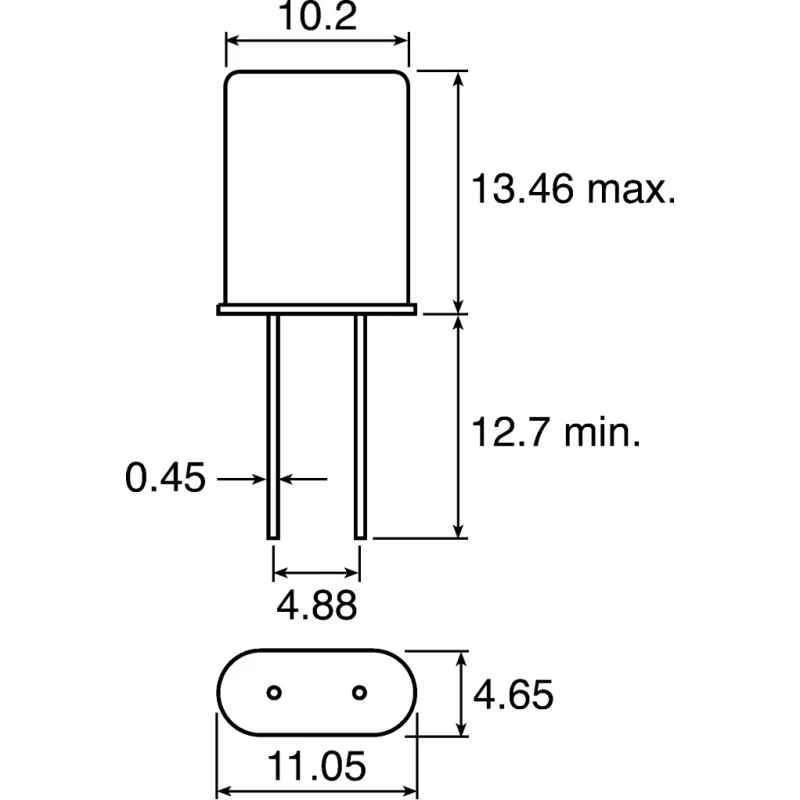

This component is housed in an HC-49U package with two pins designed for through hole mounting, making it compatible with a wide range of printed circuit boards. The crystal has physical dimensions of 13.6 mm in height, 10.7 mm in length, and 4.5 mm in width. With a load capacitance of 18 pF and series resistance of 100 Ω, it delivers stable oscillation performance.

Operating temperature ranges from -40°C to 85°C, allowing it to perform in various environmental conditions typical of industrial and commercial electronics manufacturing. This crystal is commonly used in timing circuits, communications equipment, and measurement instruments that require highly stable frequencies.

Standard frequency of 3.6864 MHz ensures reliable and precise oscillation. Tight frequency tolerance of ±30 ppm enhances timing accuracy. HC-49U package and 2-pin configuration facilitate easy PCB mounting. Load capacitance of 18 pF optimizes frequency stability in circuits.

Wide operating temperature range from -40°C to 85°C expands application scope. Series resistance of 100 Ω improves oscillation stability. Compact crystal dimensions enable integration in compact PCB layouts. Manufactured to quality standards in China, ensuring consistent performance.

This crystal unit is an essential component in electronics design, supporting the precise functioning of oscillators in industrial, commercial, and laboratory electronic equipment.
