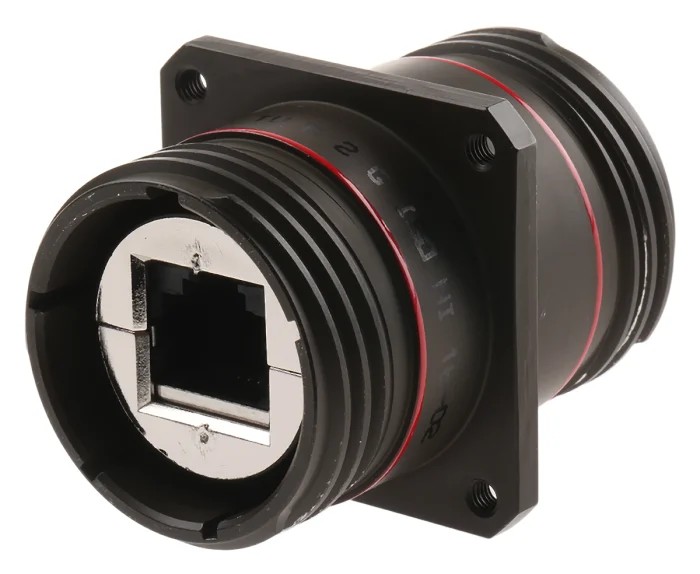

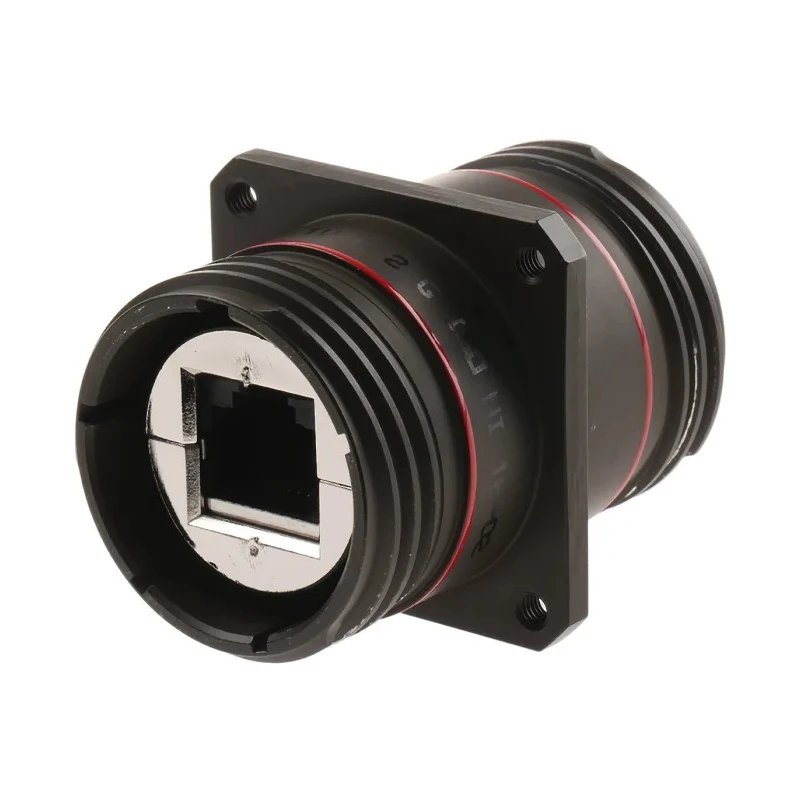

Amphenol Socapex RJFTV Series RJ45 Connector Female/Female Panel Mount Cat5e Shielded Straight 1 Port 8 Way RJFTVB2GISONI

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Socapex RJFTV Series RJ45 Connector Female/Female Panel Mount Cat5e Shielded Straight 1 Port 8 Way RJFTVB2GISONI

Name: Amphenol Socapex RJFTV Series RJ45 Connector Female/Female Panel Mount Cat5e Shielded Straight 1 Port 8 Way RJFTVB2GISONI
Brand: Amphenol Socapex
SKU: 213309
Price: 201.51 USD
Availability: InStock



Category Ethernet Connectors Brand Amphenol Socapex Condition New

Specifications

Country of Origin	India
Brand	Amphenol Socapex
Orientation	Straight
Length	48.5mm
Model	RJFTVB2GISONI
Depth	36.53mm
IP Rating	IP68
Connector Type	Receptacle
Number Of Ways	8
Width	36.53mm
Mount Type	Panel Mount
Contact Material	Copper Alloy
Series	RJFTV
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shield Type	Shielded
Contact Plating	Gold
Connector Gender	Female/Female
LAN Category	Cat5e
Ethernet Connector Type	RJ45
Compatible cable	6mm to 13mm diameter

Key Features

Durable RJFTV series designed for harsh environments with IP68 waterproof and dustproof rating.
Supports Ethernet Class D or Cat5e connections for BaseT, 100 BaseTx, and 1000 BaseT networks.
Features gold-plated copper alloy contacts for reliable signal transmission.
Compatible with cables 6mm to 13mm in diameter using solder termination.
Operating temperature range from -40°C to 85°C ensuring performance in extreme conditions.
Panel mount design with straight orientation and shielded protection for interference resistance.
Offers shock, vibration, and traction resistance for extended durability.
Suitable for industrial, military, marine, railway, and radar applications requiring secure data connections.

Product Description

Amphenol Socapex RJFTVB2GISONI RJ45 Connector is a high-performance female/female Ethernet connector from the RJFTV series tailored for demanding environments. It features a panel mount design with a straight orientation, compatible with Cat5e shielded cables of 6mm to 13mm diameter and offers a single 1-port configuration with 8 ways.

This connector is IP68 rated, providing waterproof and dustproof protection, which enables operation even when submerged up to 1.5 meters. Its gold-plated copper alloy contacts ensure excellent conductivity and durability across a wide temperature range from -40°C to 85°C. The solder termination method supports reliable cable attachment.

The RJFTVB2GISONI is designed to withstand harsh conditions including shock, vibration, and traction stresses, making it ideal for critical applications in industrial, automotive, marine, radar, military, and railway networking systems that require robust and secure data transmission.

The connector supports Ethernet Class D and Cat5e standards per TIA/EIA 568B and ISO/IEC 11801, accommodating BaseT, 100 BaseTx, and 1000 BaseT networks while maintaining compatibility with standard RJ45 cords.

Durable RJFTV series with IP68 waterproof and dustproof rating. Gold-plated copper alloy contacts for reliable performance. Panel mount with shielded, straight female/female RJ45 receptacle. Supports Cat5e Ethernet network standards and 1 port 8-way configuration.

Resistant to shock, vibration, and traction for harsh environmental use. Operates within -40°C to 85°C temperature range. Solder termination compatible with 6mm to 13mm cable diameters. Ideal for industrial, military, automotive, marine, and railway data systems.

This Amphenol Socapex Ethernet connector ensures reliable and rugged network connectivity in challenging conditions, suitable for a variety of professional and industrial applications. Discover more products in Ethernet Connectors at EnvMart for all your electronic component needs.
