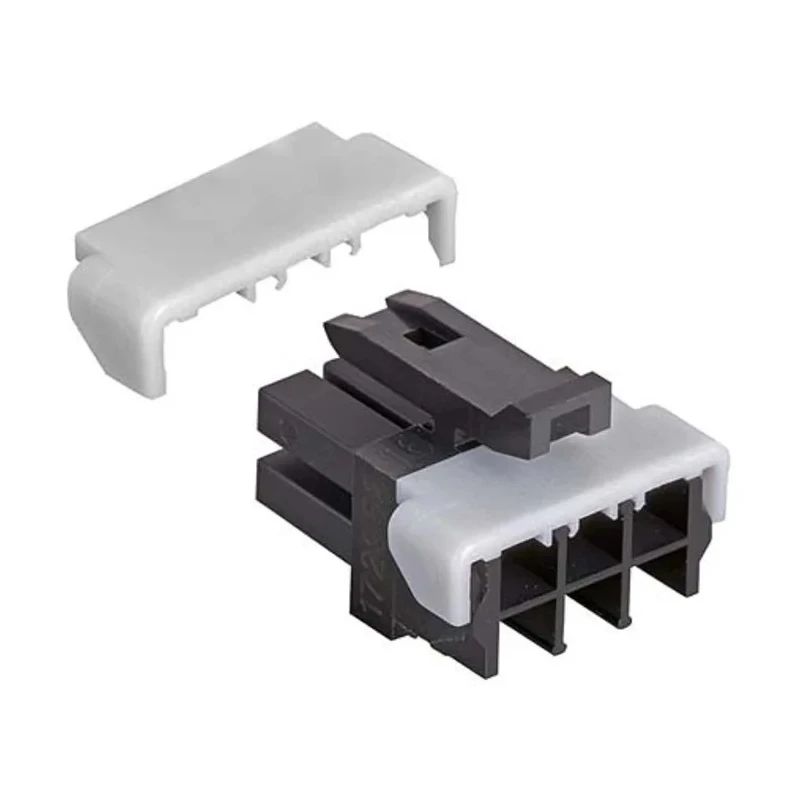

Molex Micro-Fit TPA Female Connector Housing 3 mm Pitch 10 Way 2 Row Straight 172952-1001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 15.85mm |
| Width | 6.86mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro-Fit TPA |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Micro-Fit 3.0 FeMale Crimp Terminal 43030, Micro-Fit RMF Reduced Mating Force 46235 |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- Features a Terminal Position Assurance (TPA) with integrated secondary lock to prevent terminal backouts.
- Constructed with nylon housing material for durability and insulation.
- Polarized housing design to prevent accidental mismating and ensure secure connection.
- Compatible with Micro-Fit 3.0 Female Crimp Terminal 43030 and Micro-Fit RMF Reduced Mating Force 46235.
- Contacts are fully isolated within the housing to prevent arcing and ensure reliable electrical performance.
- Supports a 10 contact, 2 row straight configuration with a 3 mm pitch.
- Applications include consumer electronics, computing, telecommunications, automotive harnesses, and commercial vehicle devices.
Product Description
Molex 172952-1001 Micro-Fit TPA Female Connector Housing offers a 3 mm pitch, 10 way, 2 row straight connector housing specifically designed for cable mounting. This product integrates a Terminal Position Assurance (TPA) mechanism with an integrated secondary lock that effectively reduces terminal backouts due to improper assembly.
The housing is manufactured from robust nylon material, providing durability while ensuring electrical insulation. The design features polarization to prevent mis-mating, and locking latches secure the connector firmly during use. Contacts are fully isolated in the housing to prevent electrical arcing.
This Micro-Fit TPA housing is compatible with Micro-Fit 3.0 Female Crimp Terminal 43030 and Micro-Fit RMF Reduced Mating Force 46235 crimp terminals, enabling easy integration into existing systems.
Its applications cover a broad range of industries including consumer and home appliances, data and computing systems such as desktops, workstations, power supplies, and UPS units, as well as telecommunications equipment like servers, routers, and switches. Additionally, it serves automotive and commercial vehicle sectors, suited for harnesses and internal non-sealed device connections.
Terminal Position Assurance (TPA) with integrated secondary lock reduces terminal backouts. Nylon housing material ensures durability and electrical insulation. Polarized housings prevent mis-mating and enhance connection reliability.
Locking latch mechanism secures mating connection firmly. Contacts are fully isolated within the housing to prevent arcing. Compatible with Micro-Fit 3.0 Female Crimp Terminal 43030 and RMF Reduced Mating Force 46235. Supports various industrial applications including consumer electronics, telecommunications, and automotive.
Choose Molex Micro-Fit TPA Female Connector Housing 172952-1001 for reliable and secure connector solutions in your cable assemblies. Explore more electronic components and connector solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3 mm.
It supports a total of 10 contacts in a 2 row configuration.
The housing is constructed from nylon, which provides durability and electrical insulation.
The orientation of this model is straight.
It is compatible with Micro-Fit 3.0 Female Crimp Terminal 43030 and Micro-Fit RMF Reduced Mating Force 46235.
The dimensions are 15.85 mm in length and 6.86 mm in width.
It features a Terminal Position Assurance (TPA) mechanism with an integrated secondary lock to reduce terminal backouts.
The connector is secured by a locking latch mechanism that ensures a firm mating connection.
It can be used in consumer electronics, computing, telecommunications, automotive harnesses, and commercial vehicle devices.
This connector housing has 2 rows.
It is manufactured in China.
The connector gender of this housing is female.
