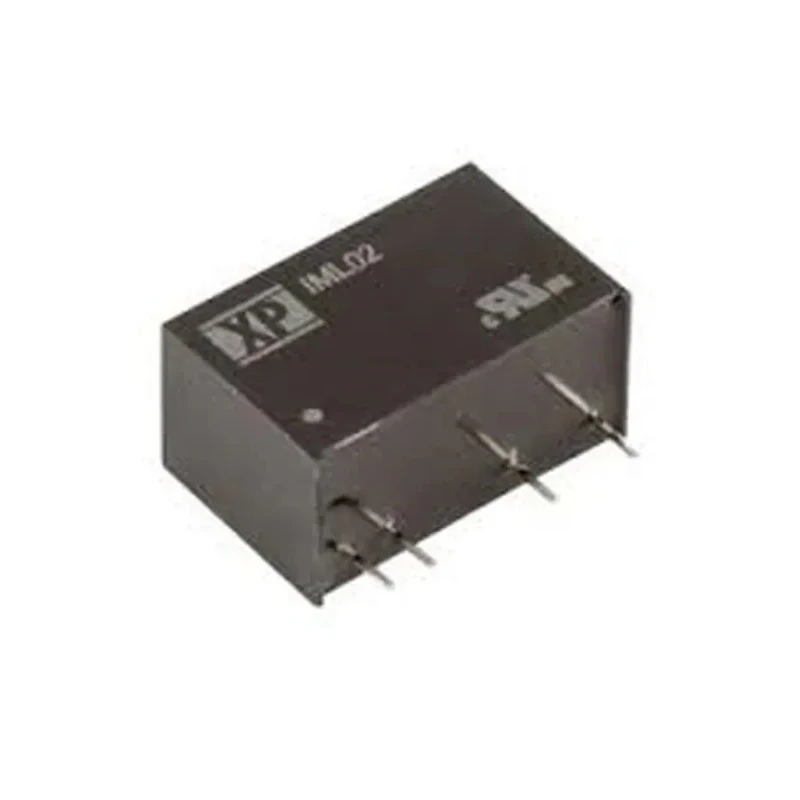

XP Power Isolated DC-DC Converter 12V, -12V, 83mA, 13.2V DC Input, 2W, SIP Through Hole, Medical, -40°C to 85°C IML02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IML02 DC/DC Converter, 12V, -12 V/ 83 mA |
| Brand | XP Power |
| Efficiency | 83% |
| Length | 19.5mm |
| Model | IML02 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IML02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 83mA |
| Output Voltage Adjustment Range | ±5 V |
| Isolation Voltage | 4kV ac |
| Medical Approval | 1 x MOPP @ 250V AC |
Key Features
- Isolated dual output DC-DC converter providing 12V and -12V outputs.
- Maximum output current of 83mA for each channel.
- Supports input voltage range from 10.8V to 13.2V DC.
- Delivers up to 2W output power in a compact SIP7 package.
- High isolation voltage rating of 4000V AC for enhanced safety.
- Wide operating temperature range from -40°C to 85°C.
- Suitable for medical applications with 1 x MOPP @ 250V AC approvals.
- Efficient operation with typical efficiency of 83%.
Product Description
The XP Power IML0212D12 is an isolated DC-DC converter featuring dual regulated outputs of 12V and -12V, each capable of supplying up to 83mA. Designed for demanding industrial and medical environments, this converter operates reliably across a wide temperature range from -40°C to 85°C, ensuring robust performance in harsh conditions.
Its maximum DC input voltage is 13.2V, with a minimum input of 10.8V, accommodating a variety of power supply systems. The converter delivers up to 2W of power, making it an ideal choice for applications requiring consistent output, high isolation, and minimal footprint.
The device is engineered with a SIP7 through hole package, offering easy integration into printed circuit boards. With a 4000V AC isolation voltage and medical-grade approvals (1 x MOPP @ 250V AC), this converter secures equipment and users from electrical hazards, making it suitable for sensitive applications.
Isolated dual voltage outputs: 12V and -12V, regulated. 83mA maximum output current per channel. Input voltage operating range: 10.8V to 13.2V DC. 2W maximum output power for low-medium power devices. Package type: SIP7 (compact and standard footprint for converters).
High isolation voltage: 4000V AC safety rating. Operating temperature range: -40°C to 85°C for reliable performance. Medical-grade approvals: ideal for medical instrumentation and industrial control systems.
The converter demonstrates an MTBF of 2,500,000 hours, reflecting its reliability in critical environments. It features output voltage adjustment, efficiency up to 83%, and fits into a tight board space with dimensions of 19.5mm (L) x 9.8mm (W) x 12.5mm (D). Its seven-pin SIP configuration and dual output flexibility enable straightforward PCB layout and system integration.
Practical applications include medical electronics, laboratory devices, industrial controllers, instrumentation, and any system requiring high isolation and dependable power conversion in compact form.
Explore more isolated DC-DC converters and XP Power solutions in the DC-DC Converter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2W.
This converter provides dual regulated outputs of 12V and -12V.
The input voltage operating range is from 10.8V to 13.2V DC.
Each output channel can supply a maximum current of 83mA.
The isolation voltage rating is 4000V AC, providing enhanced safety.
This model operates reliably within a temperature range of -40°C to 85°C.
It features a through hole mounting type, suitable for integration into printed circuit boards.
The dimensions of this unit are 19.5mm in length, 9.8mm in width, and 12.5mm in depth.
It has medical-grade approvals of 1 x MOPP @ 250V AC, making it suitable for medical applications.
This converter has a typical efficiency of 83%.
This model provides two outputs, 12V and -12V.
The mean time between failures (MTBF) is 2,500,000 hours, indicating its reliability in critical environments.
