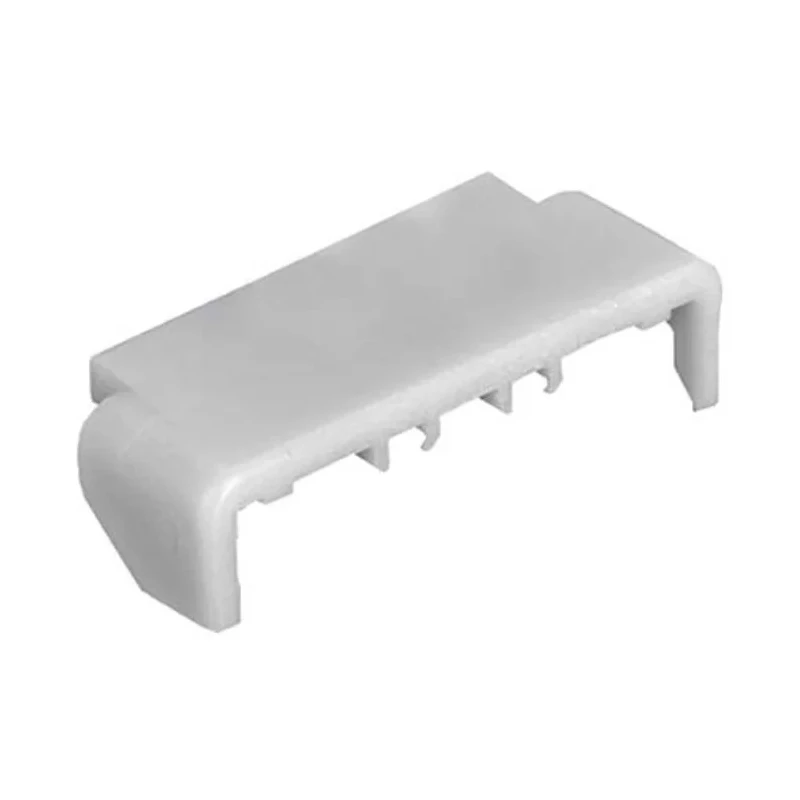

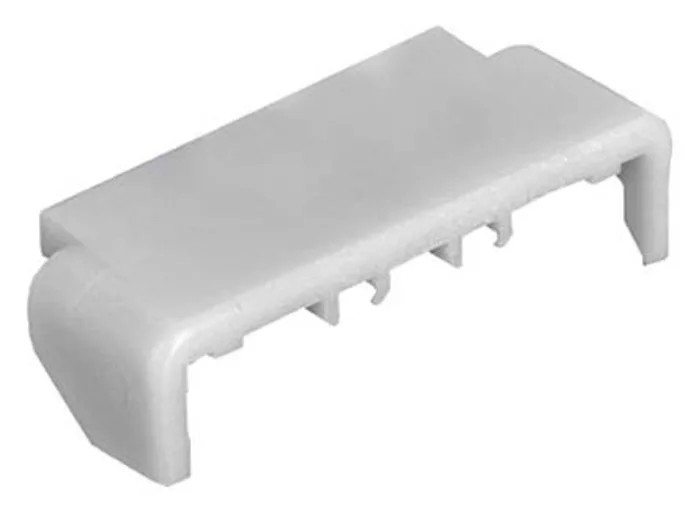

Molex Terminal Position Assurance for Micro-Fit 3.0 Plugs and Headers 10A Current, Gold or Tin Plating 172953-1001

Molex 172953-1001 Terminal Position Assurance for Micro-Fit 3.0 plugs and headers provides an added layer of security by preventing terminal backouts caused by improper assembly. This product supports a continuous current of 10 amperes, accommodating minimum wire sizes of 30 AWG and maximum wire sizes of 20 AWG.

The terminal features plating options in Gold or Tin, applied over contacts made from phosphor bronze copper alloy to ensure excellent electrical conductivity and resistance to corrosion. Its termination method is crimping, which assures a reliable and stable wire connection suitable for demanding industrial applications.

Operable across a temperature range from -40°C to 105°C, this terminal is engineered to withstand harsh environmental conditions commonly encountered in industrial, automotive, and commercial electronic applications.

The integrated secondary lock design enhances the safety and reliability of the connection by preventing terminal dislodgement during usage or vibration. Its specific design is compatible with Micro-Fit 3.0 double row receptacle housings, a prevalent standard in power and signal connectors.

Manufactured in China, the product complies with industry standards despite no explicit certificate approvals listed. It is ideal for use in industrial automation, electronic equipment manufacturing, and assembly line operations where secure and durable terminal locking is critical.

Supports current rating of 10 amperes for reliable performance. Compatible with wire sizes from 30 AWG minimum to 20 AWG maximum. Contact plating options include Gold or Tin for enhanced conductivity and corrosion resistance.

Constructed from phosphor bronze copper alloy for durability and conductivity. Operating temperature range from -40°C to 105°C suitable for diverse environments. Features crimp termination type for secure wire attachment.

Designed with integrated secondary lock to prevent improper assembly. Manufactured in China ensuring consistent quality standards.

This terminal position assurance product is an essential accessory for securing Micro-Fit 3.0 connector assemblies in electronics, industrial automation, and power distribution systems. Browse more specialized Molex connectors and accessories on EnvMart for reliable solutions.
