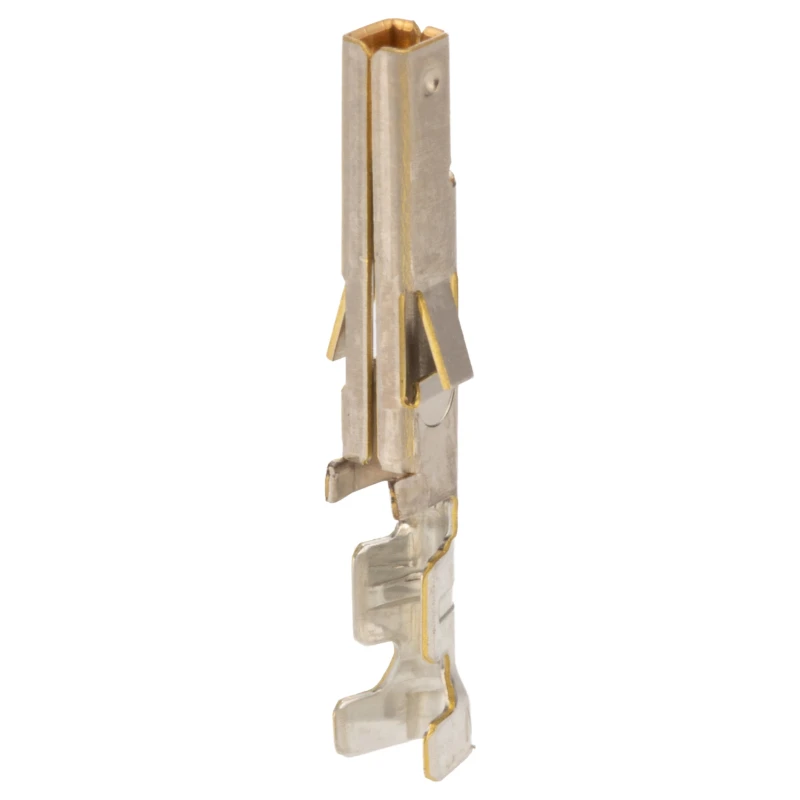

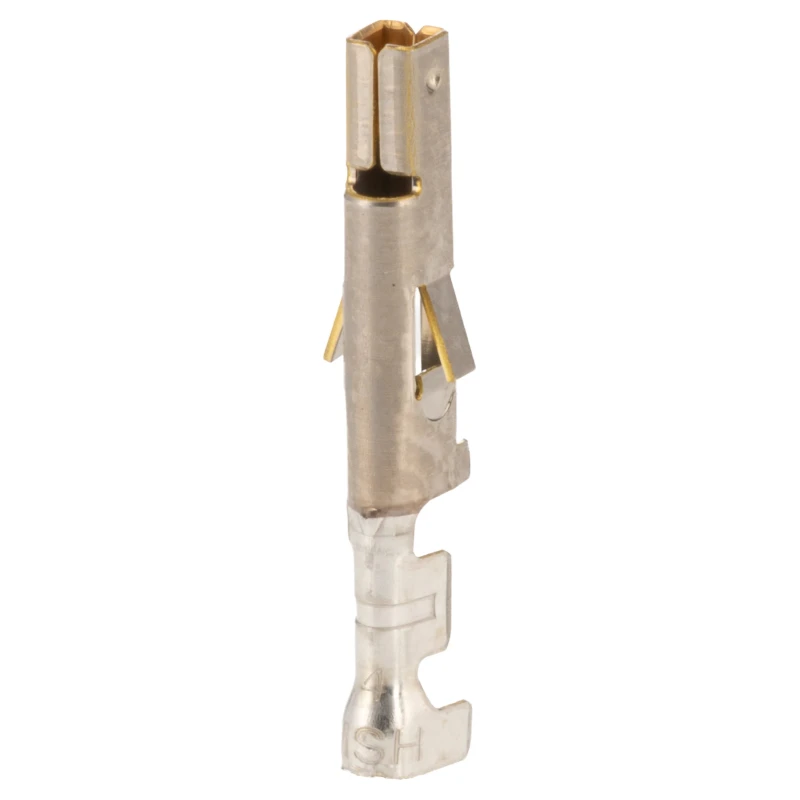

Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr Connector Housing, 9A Current, 28 AWG Min Crimp, 22 AWG 39-00-0434

Free Delivery in India | Lowest Global Shipping Charges

Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr Connector Housing, 9A Current, 28 AWG Min Crimp, 22 AWG 39-00-0434

Name: Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr Connector Housing, 9A Current, 28 AWG Min Crimp, 22 AWG 39-00-0434
Brand: Molex
SKU: 207261
Price: 0.52 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	9A
Gender	Female
Contact Material	Brass
Series	5556
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ
Molex 5556 Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand	Molex

Key Features

Constructed with brass contact material for durability and conductivity.
Features gold plating for enhanced corrosion resistance and reliable electrical connection.
Supports crimp termination type providing secure wire attachment.
Operates reliably across a temperature range from -40°C to 105°C.
Designed with multiple contact points and locking tangs for secure housing fit and high current capacity.
Suitable for applications in automotive, industrial, medical, communications, and consumer electronics sectors.
Ensures low maximum contact resistance of 10 milliohms for efficient performance.

Product Description

Molex 39-00-0434 Female Crimp Terminal from the 5556 series is engineered for robust electrical connections in Mini-Fit Jr Connectors, handling a current capacity of 9A. Manufactured with brass and enhanced by gold plating, this crimp contact ensures maximum reliability and corrosion resistance. It accommodates wire sizes from 28 AWG minimum to 22 AWG maximum, making it versatile for various wiring requirements.

The terminal's design includes multiple points of contact and locking tangs, securing the contact firmly in the connector housing to maintain a stable and high-quality electrical connection. Its rated operational temperature range from -40°C to 105°C enables use in demanding industrial and automotive environments.

This crimp terminal is widely applicable in automotive systems, industrial automation, medical devices, communication equipment, and consumer electronics. It features a maximum contact resistance of 10 milliohms to ensure low signal loss and efficient power transfer.

Termination is by crimping, offering strong mechanical and electrical retention in wire harnesses. The Molex 5556 series female crimp terminal exemplifies high precision and quality expected in professional electrical connector components.

Conductive brass material with gold plating extends product life and performance. Designed for Mini-Fit Jr connector housings ensuring compatibility and ease of assembly. Multiple contact points improve current carrying capacity and connection stability.

Locking tangs enhance retention security inside connector housings. Operating temperature range suits harsh environments from -40°C to 105°C. Ideal for diverse industrial, automotive, medical, communication, and consumer electronics applications.

Explore a broad range of professional electronic components and crimp contact solutions at EnvMart to support your precise engineering needs.
