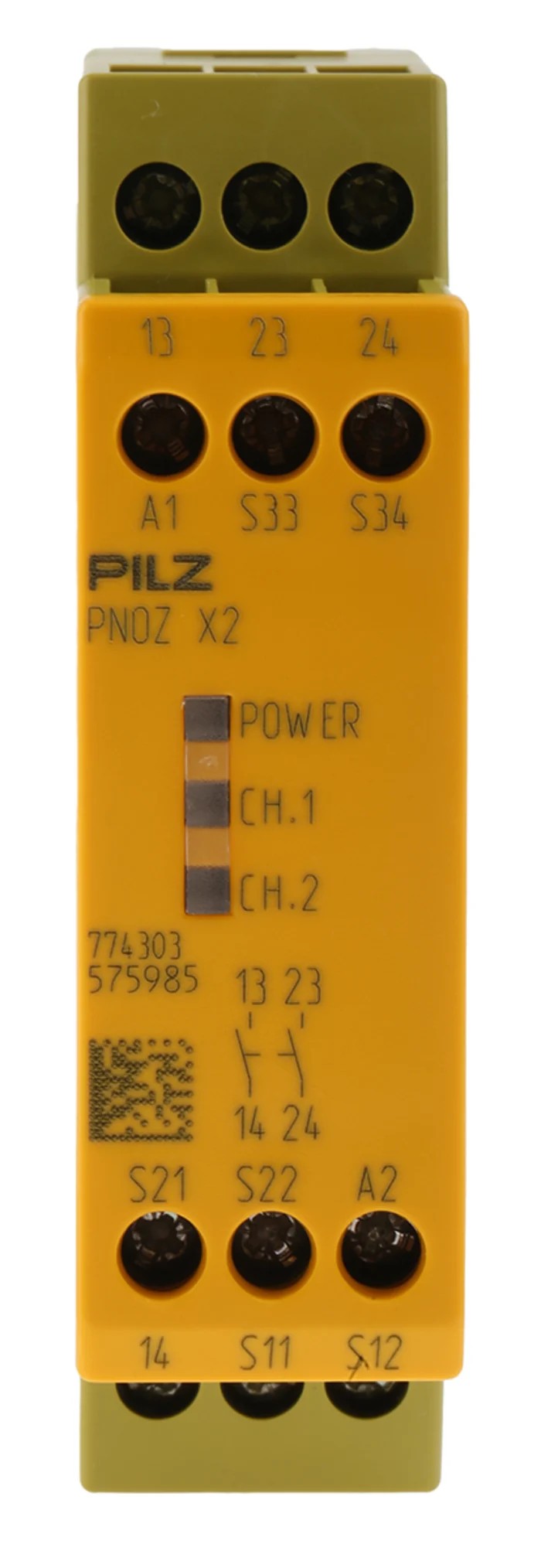

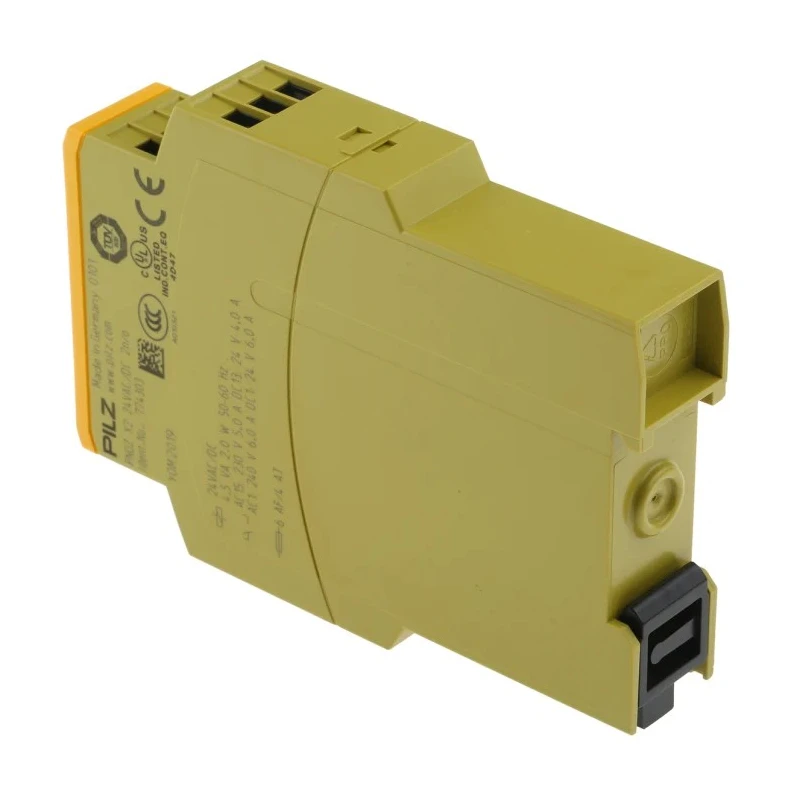

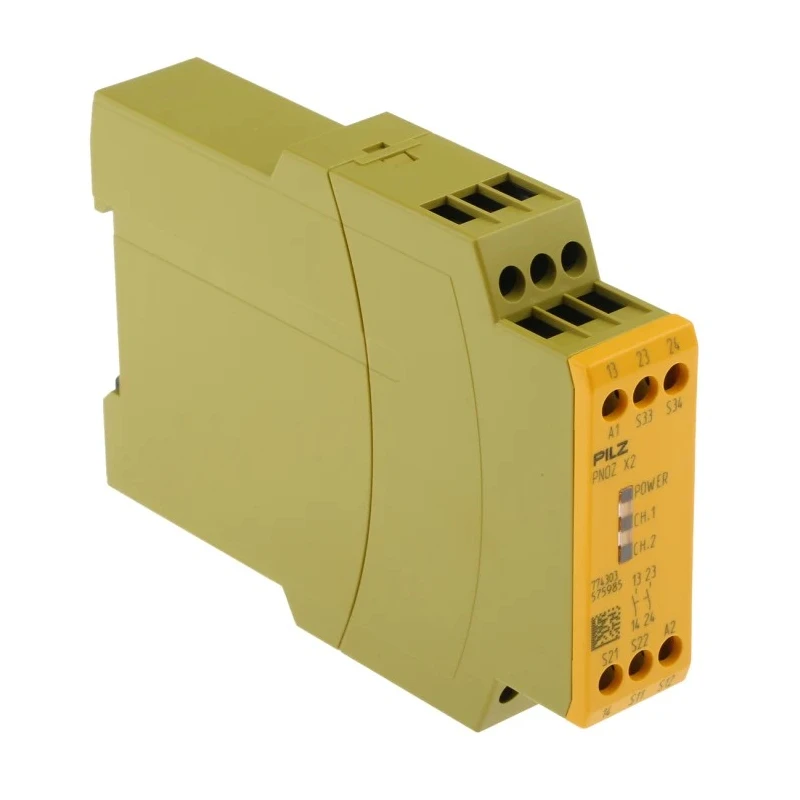

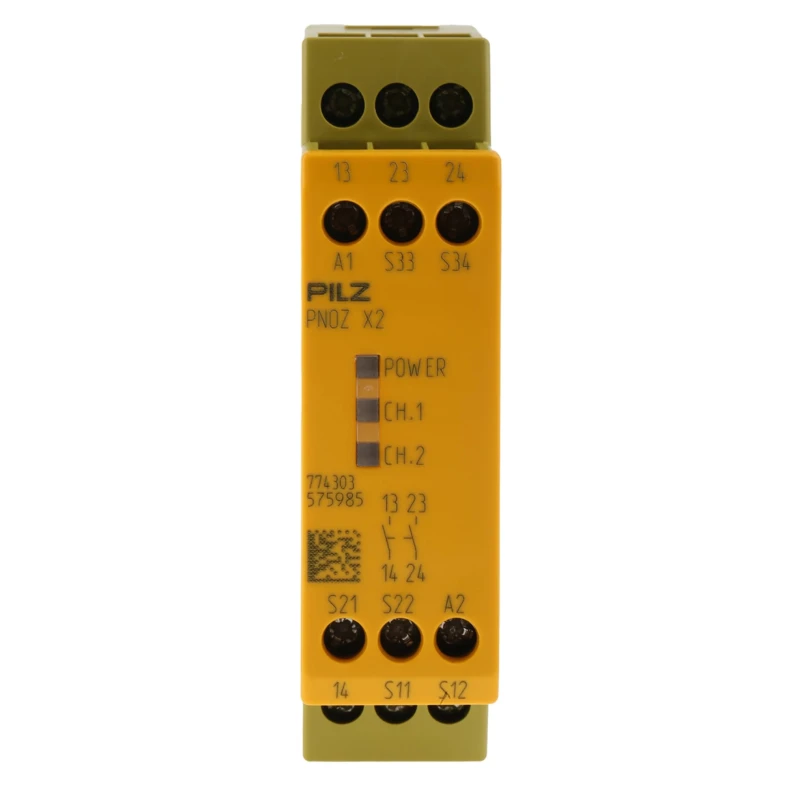

Pilz Safety Relay 24V AC/DC, 2 Safety Contacts, 1 Auxiliary Contact, Manual Reset, DIN Rail Mount PNOZ X2 774303

Pilz 774303 Safety Relay PNOZ X2 series operates at 24V AC/DC coil voltage providing reliable safety relay functionality with 2 safety contacts and 1 auxiliary contact.

This relay is designed for safety-critical industrial applications including emergency stop buttons, safety curtains, safety gates, external relay monitoring, and safety interlocks to ensure machine operator protection.

The device supports manual reset and mounts securely on standard DIN rails for easy integration into industrial control panels. Screw-terminal connections offer solid electrical contact reliability.

Operating voltage compatibility with both 24V AC and DC switching ensures versatile usage across various industrial control systems. The built-in LED indicator allows easy monitoring of channel status and supply voltage.

The relay’s robust design includes a redundant circuit with self-monitoring that enhances operational safety by maintaining functionality even in case of component failure.

Operating temperature tolerance from minus 10°C up to 55°C extends its usability in diverse industrial environments. Its compact form factor with dimensions of 121mm height, 87mm length, and 22.5mm width conserves panel space effectively.

This relay complies with the RoHS directive ensuring environmentally responsible manufacturing and usage. Suitable for emergency stop buttons and safety gate monitoring. Manual reset available for controlled restart of machinery.

DIN rail mounting standard for easy installation. Screw-terminal type connections for secure wiring. Operates with a coil voltage of 24V AC/DC. Redundant safety circuit with self-monitoring feature. Wide operating temperature range from -10°C to 55°C.

Compact size optimizes panel space usage. RoHS compliant to meet environmental standards. Supports monitoring of multiple safety circuits simultaneously.
