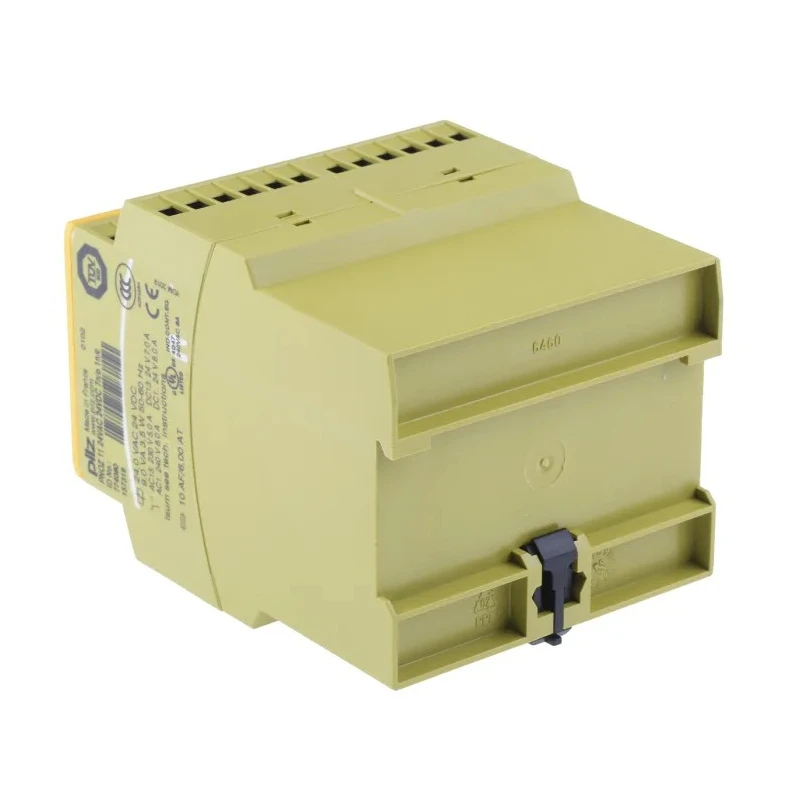

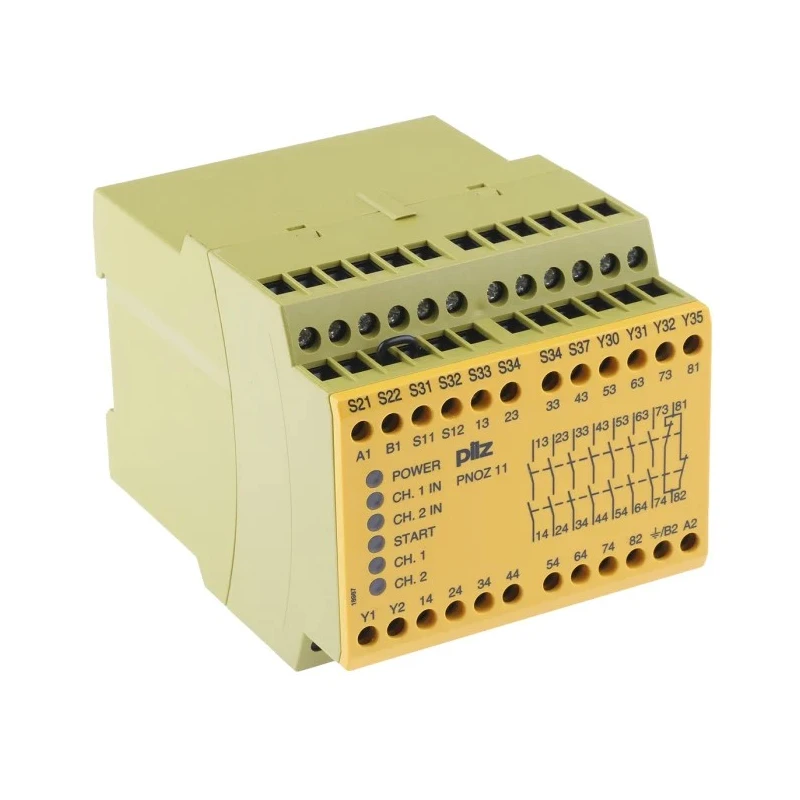

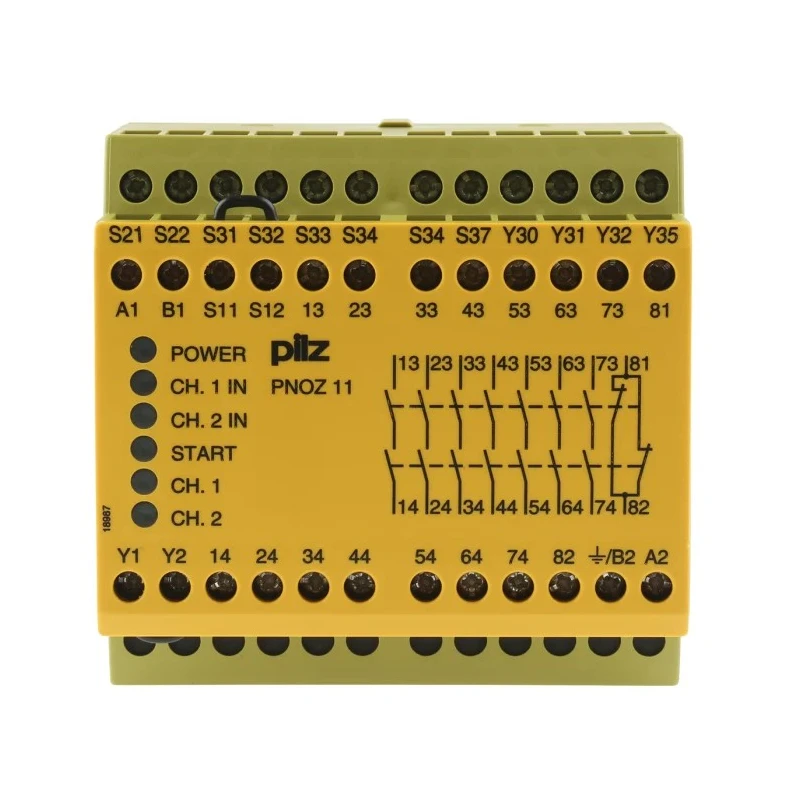

Pilz 24V AC/DC Safety Relay with 7 Safety Contacts, 1 Auxiliary Contact, Fixed Mount, IP54 Protection 774080
Specifications
| Country of Origin | France |
|---|---|
| Power Consumption | 3.5W |
| Brand | Pilz |
| Height | 121mm |
| Length | 87mm |
| Model | 774080 |
| IP Rating | IP54, IP20, IP40 |
| Width | 90mm |
| Mount Type | Fixed |
| Series | PNOZ 11 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Safety Category | 4 |
| Terminal type | Screw |
| Coil Voltage | 24V ac/dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Contact Current | 8A |
| Safety Contacts | 7 |
| Number of Auxiliary Contacts | 1 |
| Pilz PNOZ X10, 24V dc Safety Relay, 6 Safety Contacts, 4Brand | Pilz |
Key Features
- Operates on 24V AC/DC coil voltage for reliable switching.
- Equipped with seven safety contacts and one auxiliary contact.
- Fixed mount type with screw terminals ensures stable installation.
- Provides IP54, IP20, and IP40 ratings for versatile protection in different environments.
- Features LED indicators for monitoring status and diagnostics.
- Supports single or dual channel cabling with short-circuit detection.
- Power consumption of 3.5W for energy-efficient operation.
- Suitable for industrial automation and safety control applications.
Product Description
Pilz 774080 is a high-quality 24V AC/DC safety relay designed for industrial emergency stop circuits and safety gate applications. This safety relay incorporates seven safety contacts and one auxiliary contact to provide reliable safety control and monitoring in automated machinery and manufacturing processes.
The relay supports both single and dual channel cabling with built-in short-circuit detection to ensure system reliability. LED indicators are included to visually display the status of channels, input circuits, power supply voltage, and reset conditions, simplifying troubleshooting and maintenance tasks.
Its fixed mount design with screw terminal connection facilitates secure installation and wiring. With multiple ingress protection ratings (IP54, IP20, IP40), it can be deployed in a variety of industrial environments, offering protection against dust and water splashes.
Power consumption of just 3.5W ensures energy-efficient operation, while the coil voltage rating of 24V AC/DC enables compatibility with common industrial power systems. The relay can switch DC voltages of 24V and AC voltages up to 400V with a contact current rating of 8A, making it suitable for a wide range of applications.
Operates at 24V AC/DC coil voltage. Seven safety contacts and one auxiliary contact for comprehensive control. Fixed mount design with screw type terminals. IP54, IP20, and IP40 ingress protection ratings. LED status indicators for channels and power supply.
Single and dual channel cabling with short-circuit detection. Power consumption: 3.5W. Contact current: 8A. Switching AC voltage: up to 400V. Operating temperature: -10°C to 55°C. Dimensions: Height 121mm, Length 87mm, Width 90mm.
Safety Category 4 compliance. Conforms to standards EN 60204-1, CE, VDE 0113-1, CCC, cULus Listed, EN 60947-5-1, TÜV.
Originating from France, this Pilz safety relay is designed to meet stringent industrial safety requirements, ensuring secure and efficient operation within automation and control systems. It is ideal for use in safety critical applications in manufacturing plants, machinery control, and process automation.
Explore the wide range of Pilz Safety Relays and other industrial automation products available at EnvMart to enhance system safety and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The safety relay operates on a coil voltage of 24V AC/DC.
This model is equipped with seven safety contacts and one auxiliary contact.
The dimensions of this relay are 121mm in height, 87mm in length, and 90mm in width.
It can switch AC voltages up to 400V.
The power consumption is 3.5W, ensuring energy-efficient operation.
The operating temperature range is from -10°C to 55°C.
It features a fixed mount design with screw terminals for secure installation.
This safety relay has IP54, IP20, and IP40 ingress protection ratings.
The contact current rating is 8A.
Yes, it supports both single and dual channel cabling with short-circuit detection.
It complies with Safety Category 4 requirements.
This safety relay conforms to standards EN 60204-1, CE, VDE 0113-1, CCC, cULus Listed, EN 60947-5-1, and TÜV.
