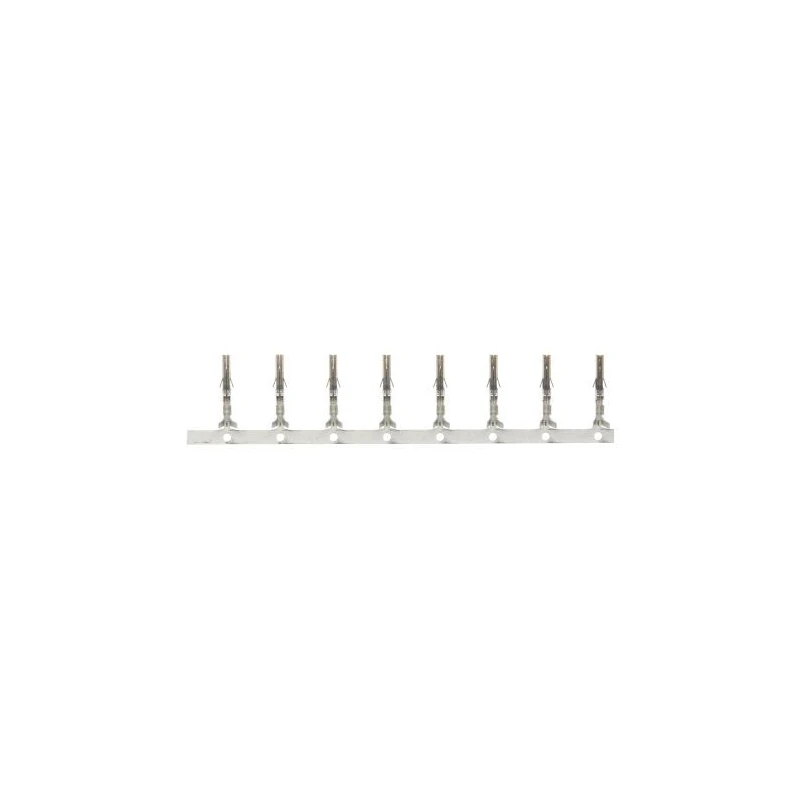

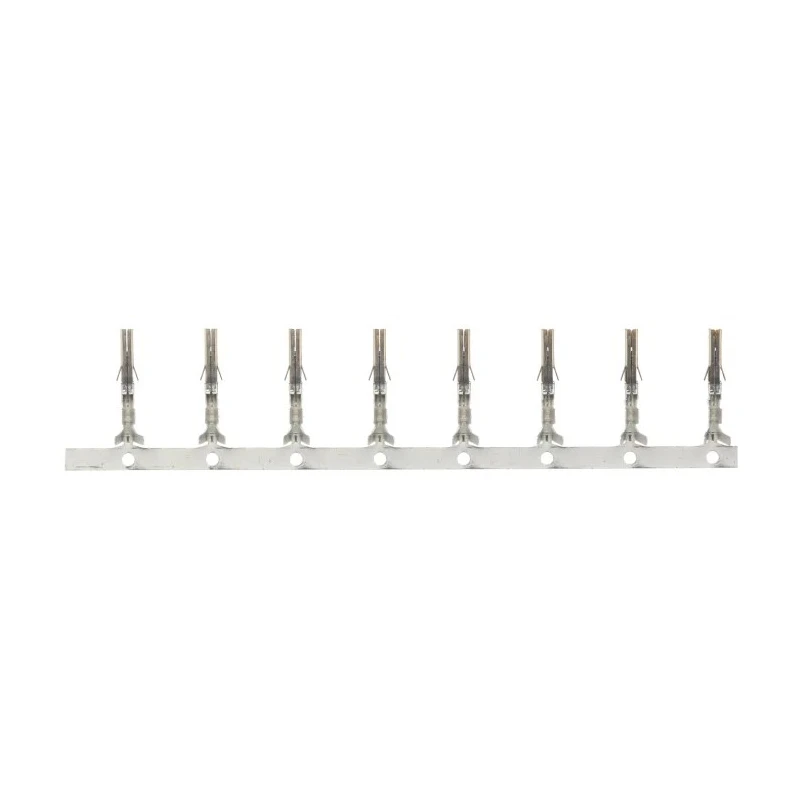

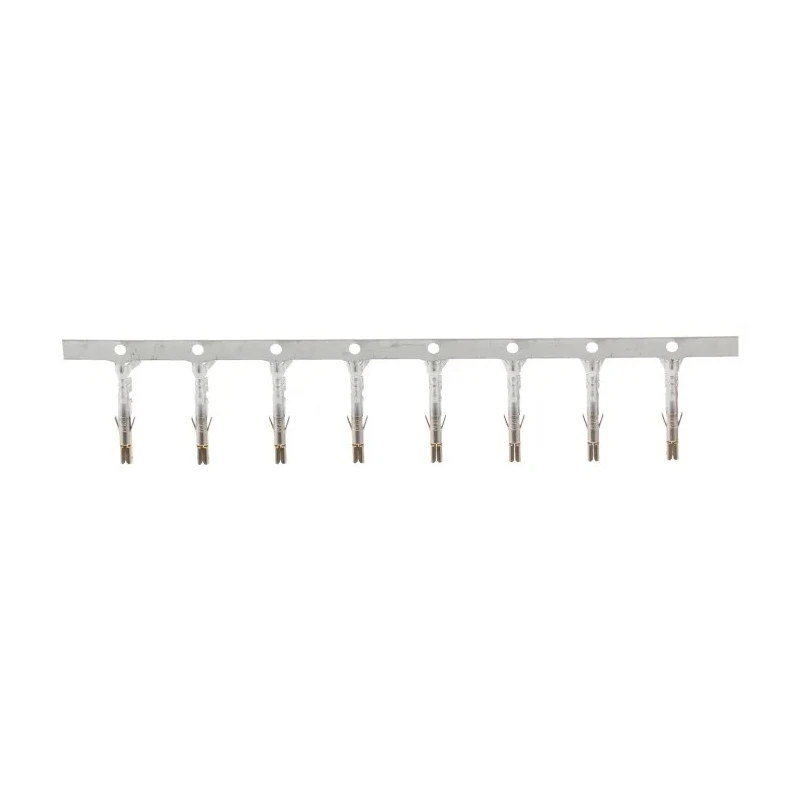

Molex 5556 Series Female Crimp Terminal 24 AWG to 18 AWG 9A Brass Gold Plated 39-00-0428
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The terminal features durable brass contact material with selective gold plating for excellent conductivity.
- It is designed for use with Mini-Fit Jr connector housings.
- Built to operate effectively between -40°C and +105°C temperature range.
- Offers a maximum contact resistance of 10 milliohms ensuring efficient electrical performance.
- Termination is accomplished through reliable crimping methods.
- Suitable for wire-to-board and wire-to-wire electrical connections.
- Designed for industrial, automation, and electronics applications requiring robust electrical connectivity.
- Manufactured in the United States maintaining high-quality standards.
Product Description
Molex 39-00-0428 Female Crimp Terminal from the 5556 Series is engineered for precise and reliable electrical connections, supporting a wire size range from 24 AWG (0.2mm²) to 18 AWG (0.8mm²). This crimp terminal is intended specifically for Mini-Fit Jr connector housings and is rated for a continuous current of 9 amperes, making it ideal for moderate power distribution tasks.
The terminal's brass contact base is plated with gold, ensuring superior electrical conductivity and enhanced resistance against corrosion, which is critical for maintaining signal integrity and longevity in demanding industrial environments. The design supports a robust crimp termination, minimizing contact resistance to a maximum of 10 milliohms for efficient power transfer with minimal loss.
Operating temperature capabilities of -40°C to +105°C allow this terminal to perform reliably across a wide variety of environmental conditions. It has no specific certifications but conforms to industry standards for electrical components.
This product is expertly manufactured in the United States, reflecting Molex's commitment to quality and durability. The terminal serves versatile applications including automation, electronics manufacturing, mechanical assembly, and power distribution systems.
Durable brass contact with selective gold plating for optimal conductivity and corrosion resistance. Compatibility with Mini-Fit Jr connector housings for secure wire connections. Wide temperature range suitability from -40°C to +105°C for diverse environments.
Low maximum contact resistance of 10 milliohms ensuring efficient electrical continuity. Supports current up to 9A for reliable power distribution. Designed for crimp termination to ensure secure and consistent connections.
Ideal for wire-to-board and wire-to-wire connections in industrial and electronics applications. Manufactured in the United States with high quality standards. Explore the Electronics & Electricals category at EnvMart for premium connectors and crimp terminals to fulfill diverse electrical requirements.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a wire size range from 24 AWG (0.2mm²) to 18 AWG (0.8mm²).
It is rated for a maximum continuous current of 9 amperes.
The terminal features a brass contact material with selective gold plating for enhanced conductivity and corrosion resistance.
The maximum contact resistance is 10 milliohms, ensuring efficient electrical performance.
It operates effectively within a temperature range of -40°C to +105°C.
This terminal is designed for use with Mini-Fit Jr connector housings.
It utilizes a crimp termination method for secure and reliable connections.
It is suitable for wire-to-board and wire-to-wire connections in industrial, automation, and electronics applications.
The specific dimensions and weight are not provided in the available information.
This product does not have specific certifications but conforms to industry standards for electrical components.
It is manufactured in the United States, reflecting high-quality standards.
The primary purpose is to provide reliable electrical connections for moderate power distribution tasks.
