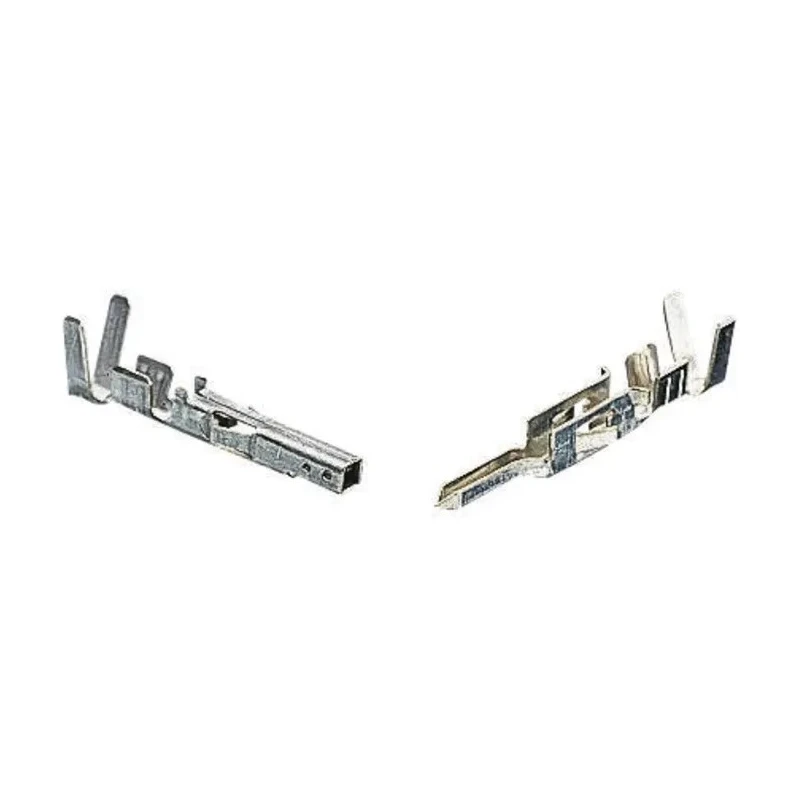

Molex 5558 Series Male Crimp Terminal 16 AWG 9A Brass Gold Plated 39-00-0095

Free Delivery in India | Lowest Global Shipping Charges

Molex 5558 Series Male Crimp Terminal 16 AWG 9A Brass Gold Plated 39-00-0095

Name: Molex 5558 Series Male Crimp Terminal 16 AWG 9A Brass Gold Plated 39-00-0095
Brand: Molex
SKU: 207248
Price: 0.79 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	9A
Gender	Male
Contact Material	Brass
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr Connector Housing
Contact Plating	Gold
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	16AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed with high-quality brass material for durability.
Features selective gold plating to enhance conductivity and resist oxidation.
Designed for crimp termination offering secure and reliable connections.
Supports a maximum wire size of 1.3mm² (16 AWG) and current rating of 9 amps.
Operates reliably within a temperature range of -40 °C to +105 °C.
Max contact resistance is 10 milliohms ensuring excellent electrical performance.
Compatible with Mini-Fit Jr plug housings and hand crimp tools.
Suitable for power and wire-to-wire automation and electrical system applications.

Product Description

Molex 39-00-0095 Male Crimp Terminal from the 5558 Series is engineered for reliable electrical connectivity in various industrial and electronic applications. Featuring a male crimp design, this terminal is intended for use with Mini-Fit Jr connector housings and accommodates wire sizes up to 1.3mm² (16 AWG) with a current rating of 9 amperes.

The terminal's brass construction ensures long-lasting mechanical strength and durability, while the selective gold plating significantly enhances conductivity and reduces oxidation effects. It supports secure crimp termination methods, providing dependable and stable connections.

Operating effectively across a temperature range from -40 °C to +105 °C, this crimp terminal withstands harsh environmental and thermal conditions commonly found in industrial, manufacturing, automation, and electrical systems.

Its excellent electrical characteristics include a maximum contact resistance of only 10 milliohms and a voltage rating up to 600 volts, making it suitable for robust power and signal applications.

Constructed from durable brass material for extended service life. Gold-plated contacts deliver enhanced conductivity and corrosion resistance. Designed for crimp termination with Mini-Fit Jr connector housings. Supports wire sizes from 16 AWG with a maximum current of 9 amps.

Functional within operating temperatures ranging from -40 °C to 105 °C. Ensures minimal contact resistance for reliable electrical performance. Ideal for wire-to-wire connections in automation and mechanical systems. Compatible with industry-standard hand crimp tools for assembly.

This terminal is a precise and reliable choice for electronic component assemblies, power distribution, and other applications where strong, corrosion-resistant electrical connections are required. It complies with environmental standards such as RoHS, ensuring safe usage in modern electronic manufacturing.

Explore a wide range of Molex crimp terminals and related connector components at EnvMart for comprehensive electronics and electrical system solutions.
