Molex 70058 Series Female Crimp Terminal, Gold Plated, Phosphor Bronze, 30 AWG Min, 24 AWG Max, 3A Current 16-02-0083

Free Delivery in India | Lowest Global Shipping Charges

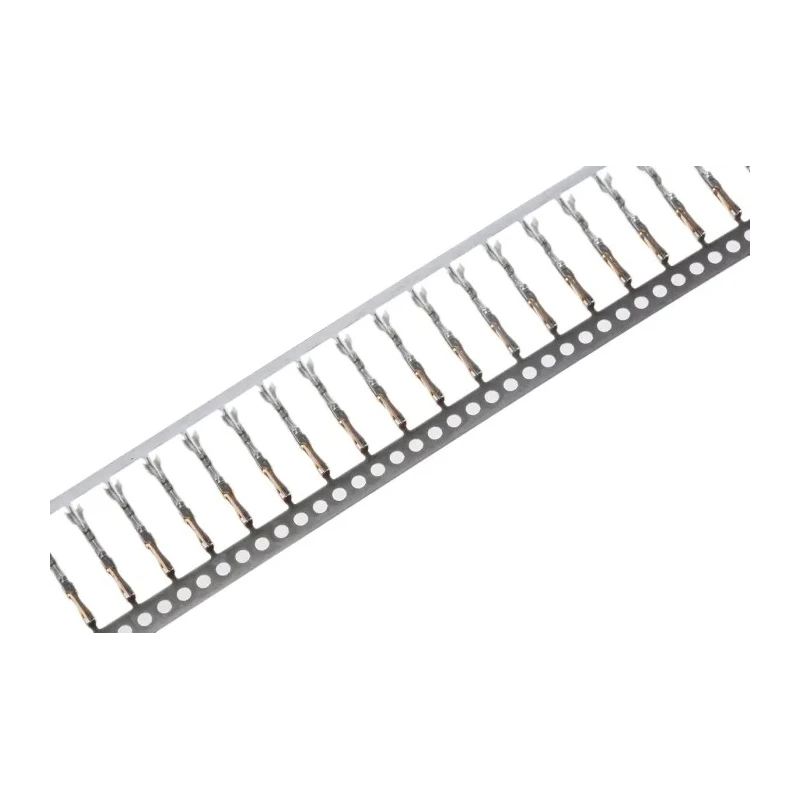

Molex 70058 Series Female Crimp Terminal, Gold Plated, Phosphor Bronze, 30 AWG Min, 24 AWG Max, 3A Current 16-02-0083

Name: Molex 70058 Series Female Crimp Terminal, Gold Plated, Phosphor Bronze, 30 AWG Min, 24 AWG Max, 3A Current 16-02-0083
Brand: Molex
SKU: 207229
Price: 0.29 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	3A
Gender	Female
Contact Material	Phosphor Bronze
Series	70058
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	SL Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	15mΩ
For Reference only	70058 and 71851 Series also used with 70450 Series Housings

Key Features

Constructed with phosphor bronze contact material for durability.
Gold plating on contacts ensures excellent conductivity and corrosion resistance.
Supports a minimum wire size of 30 AWG and maximum wire size of 24 AWG.
Maximum contact resistance rated at 15 milliohms ensuring minimal electrical losses.
Capable of operating in temperatures ranging from -40°C to 105°C.
Termination type is crimp for secure wire connection.
Part of the 70058 series known for reliable performance in various applications.
Suitable for automotive, commercial vehicles, consumer electronics, and medical devices.

Product Description

Molex 16-02-0083 Female Crimp Terminal from the 70058 series is engineered for reliable electrical connections within SL Connector Housings. It features gold-plated phosphor bronze contacts which provide excellent electrical conductivity and resistance to corrosion, making it suitable for demanding environments.

The terminal supports wire sizes ranging from 30 AWG (0.05 mm²) to 24 AWG (0.2 mm²) and is rated for currents up to 3A. With a maximum contact resistance of 15 milliohms, it ensures efficient electrical performance with low losses.

Designed to operate between -40°C and 105°C, this crimp terminal fits a variety of industrial and commercial applications including automotive systems, consumer electronics, medical equipment, communications, and networking. The termination type is crimp, facilitating secure and stable wire connections.

This product is compatible with 2.54mm Molex C-Grid/SL Series connectors and works alongside other series such as 71851 and 70021 for broad application versatility. It is also referenced for use with 70450 Series housings for additional connector compatibility.

Phosphor bronze contact material with gold plating for durability and corrosion resistance. Supports wire sizes 30 AWG to 24 AWG for flexible wiring options. Rated current of 3A suitable for moderate electrical loads. Operating temperature range from -40°C to 105°C for wide environmental suitability.

Crimp termination type ensures strong, reliable connections. Part of a series known for precision and reliability in electronic component applications. Designed for use in automotive, commercial, consumer electronics, medical, and networking applications.

Compatible with Molex 2.54mm C-Grid/SL Series connectors and related housings.

This Molex product is a high-quality crimp terminal indispensable for electrical and electronic engineers looking for reliable connections in a compact form factor. Browse the Electronics & Electricals category at EnvMart for related connectors and crimp contact accessories tailored to your industrial needs.
